98
SERVICE MANUAL FOR SGR19 & SGR17
3. DISASSEMBLY
3.1. REMOVAL OF THE STEERING GEAR
BOX ASSEMBLY
– Remove the drag rod from the drag arm.
– Remove the steering wheel cap and remove the
steering wheel.
– Remove the bolts which tighten the steering gear
box between the radiator and the steering post,
and remove the steering gear box downwards
along with the steering shaft.

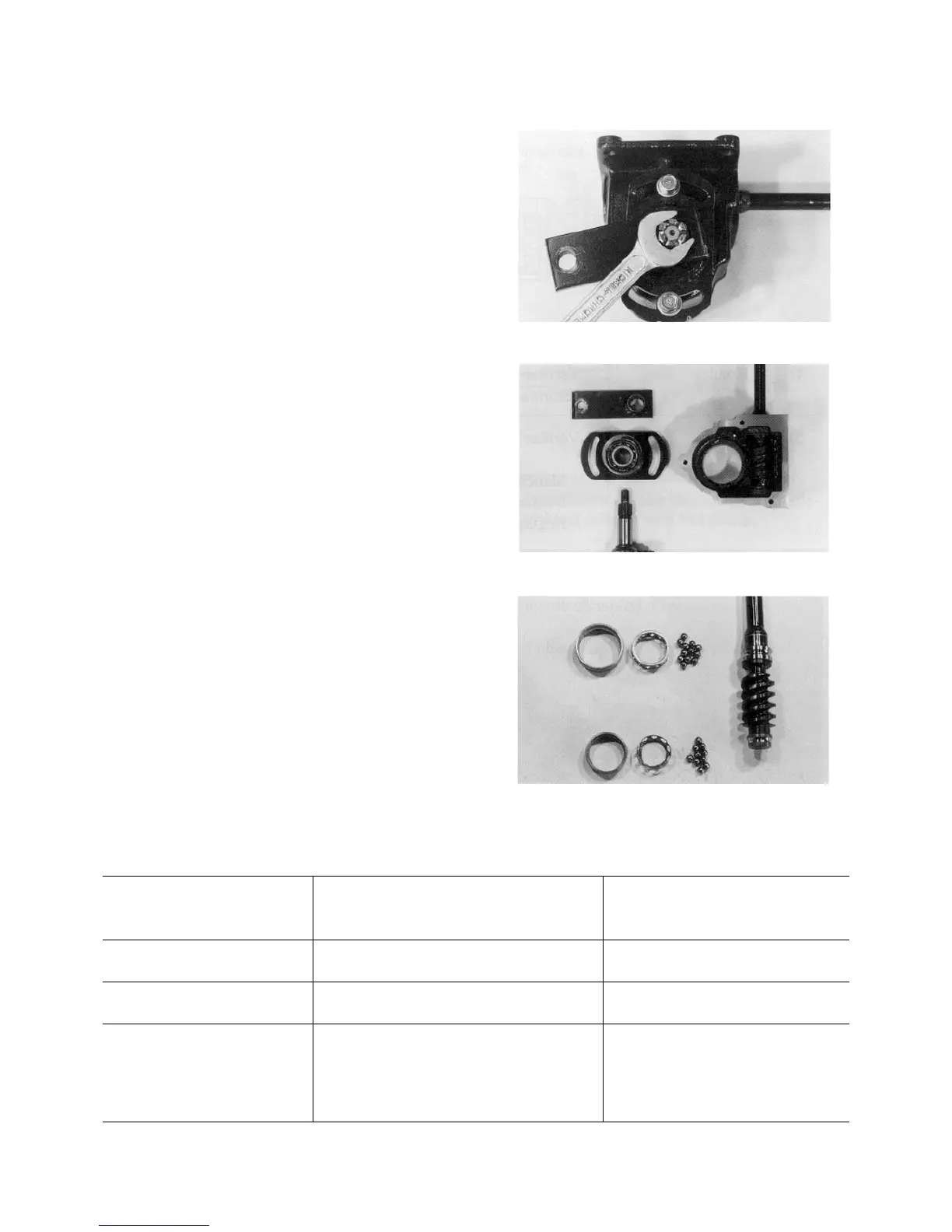

3.2. DISASSEMBLY OF THE STEERING
GEAR BOX
a. Remove the drag arm tightening nut.
b. Remove the side plate from the gear box.
c. Remove the gear and flange.
d. Remove the steering shaft.
– Remove the seal and snap ring, then pull out the
steering shaft.
Note:
Remove the angular roller bearing of the steer-
ing shaft carefully so as not to impose excessive
force in order to avoid the outer race coming off.
3.3. INSPECTION
1) Bearings Check for not smooth turning, wear, and Replace defective ones.
play.
2) Gears Check for wear and damage. Replace defective ones.
3) Rods and arms Check for deformation and damage. Repair or replace defective ones.
4) Steering wheel Check for improper free play.
• Worn bushing Replace.
• Loose bolts and nuts. Retighten.
• Improper adjustment Correct.
Fig. 8-3
Fig. 8-4
Fig. 8-5
To Next Page
