Iseki SGR19 - CHAPTER 6. HYDRAULIC SYSTEM

82
SERVICE MANUAL FOR SGR19 & SGR17
CHAPTER 6. HYDRAULIC SYSTEM

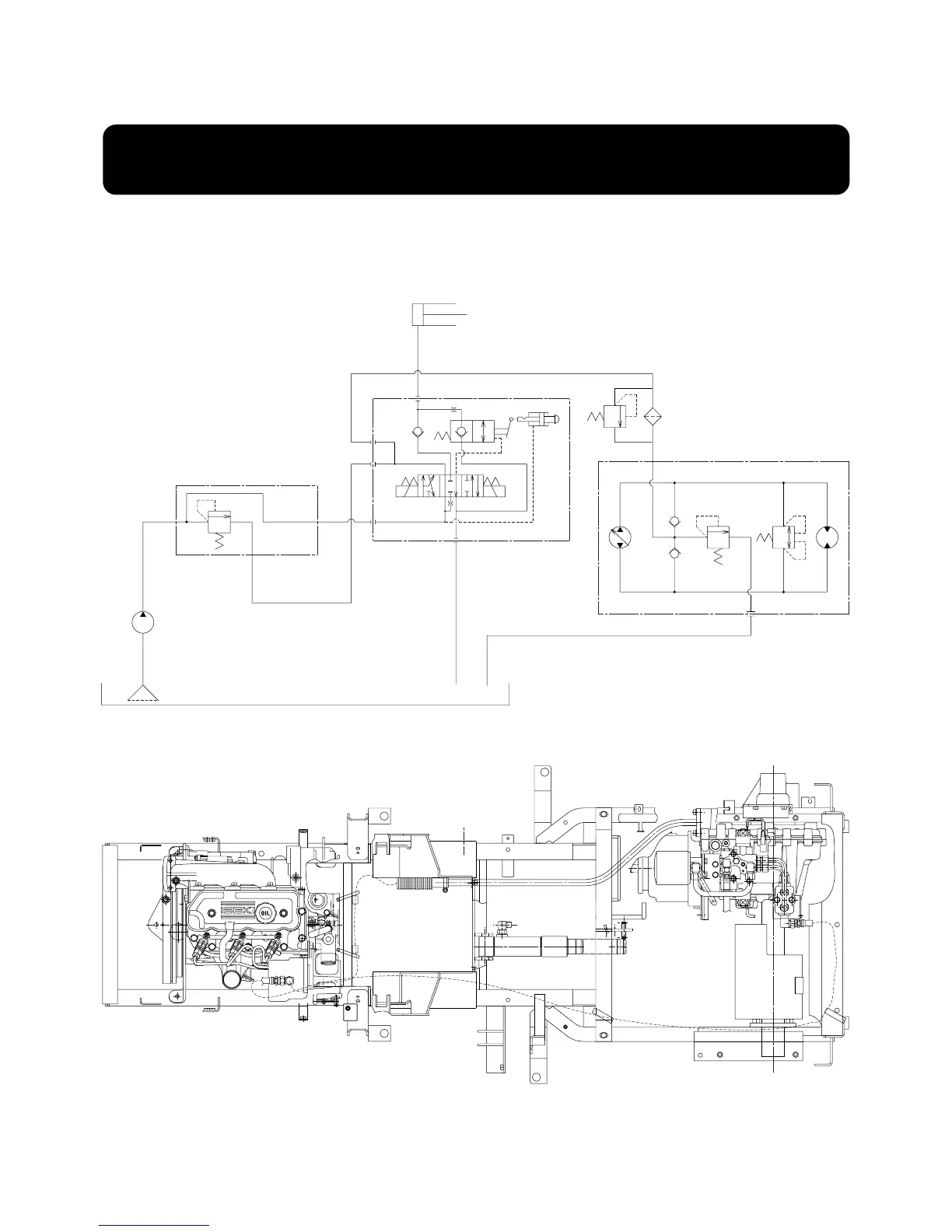

1. HYDRAULIC SYSTEM DIAGRAMS
(SGR17 with manual steering system)
Fig. 6-1
N 1
N 2
P
T
Relief metal (Support)
K130-003-000-0C
Gear pump assembly
GPF1-44L-020
(12 litres/min. at 3000 rpm)
1434-201-220-0B
Suction filter
150-mesh
K182-032-000-0B
Cylinder assembly
for mower lift
K200-069-000-0A
Solenoid valve assemblyC
ab
HST
P103-521-300-0D
Return filter assembly
10 µm
15±1
12 litres/min. 50°C
kgf/cm
2
K250-044-000-0
55 kgf/cm
2
12 litres/min. 50°C
15 kgf/cm
+0.5
0
2
