17
CHAPTER 2. DISASSEMBLY OF MAJOR COMPONENTS
2.2. REMOVAL AND REINSTALLATION OF
FENDER AND STEP

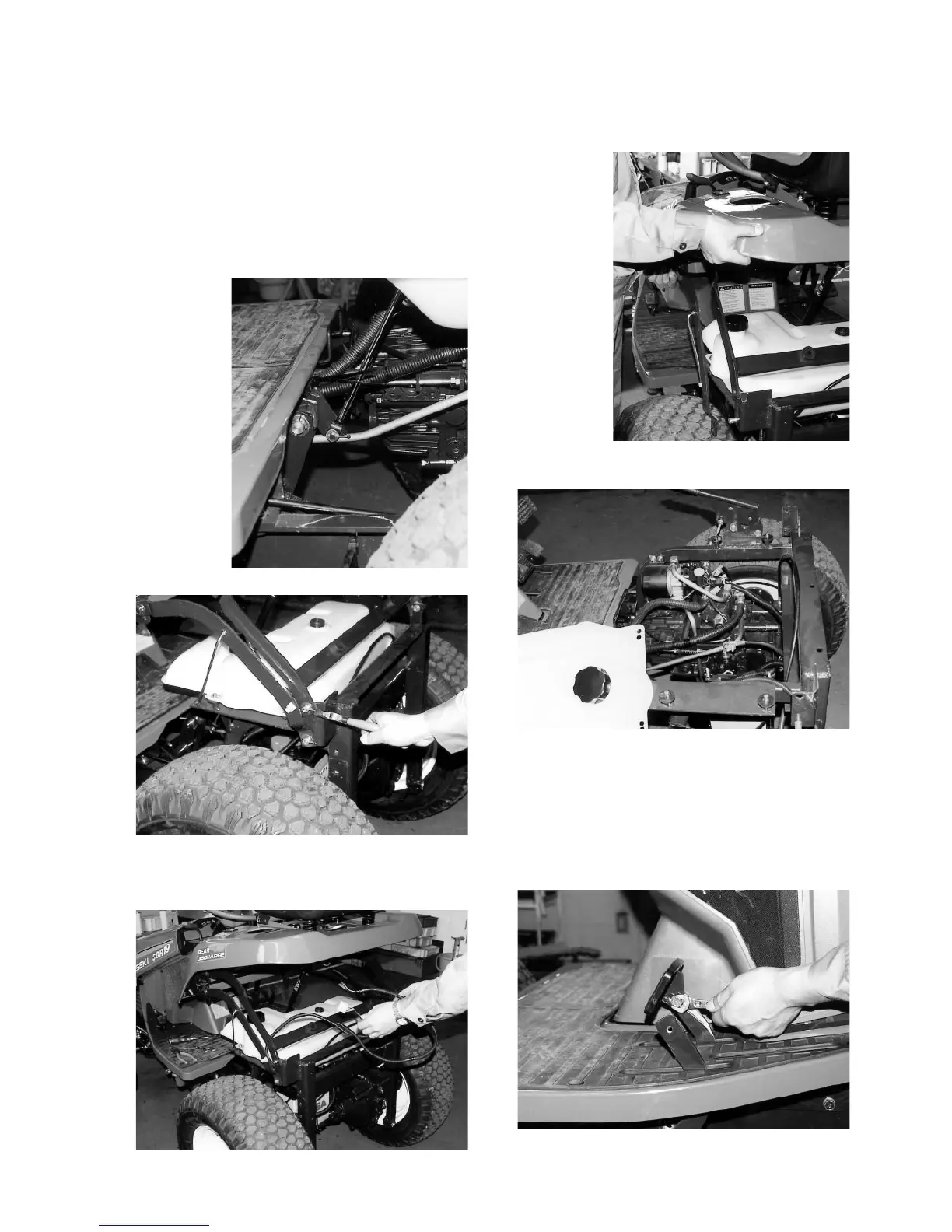

REMOVAL OF FENDER
(1) Remove the five hairpins from the dumper and
the rear linkages.
Fig. 2-22
Fig. 2-23
(2) Remove the wire harness from the fender.
Fig. 2-24
(3) Remove the fender.
Fig. 2-25
(4) Remove the fuel tank.
Fig. 2-26
REMOVAL OF STEP
(1) Remove the connecting bolt from the brake pedal
and HST pedals. Also remove the dif-lock pedal
at the left-hand side.
Fig. 2-27
To Next Page
