9
CHAPTER 2. DISASSEMBLY OF MAJOR COMPONENTS
5
4
6
3
2
1
7
5
Oil fillers
Oil drains
Greasing points
8
9

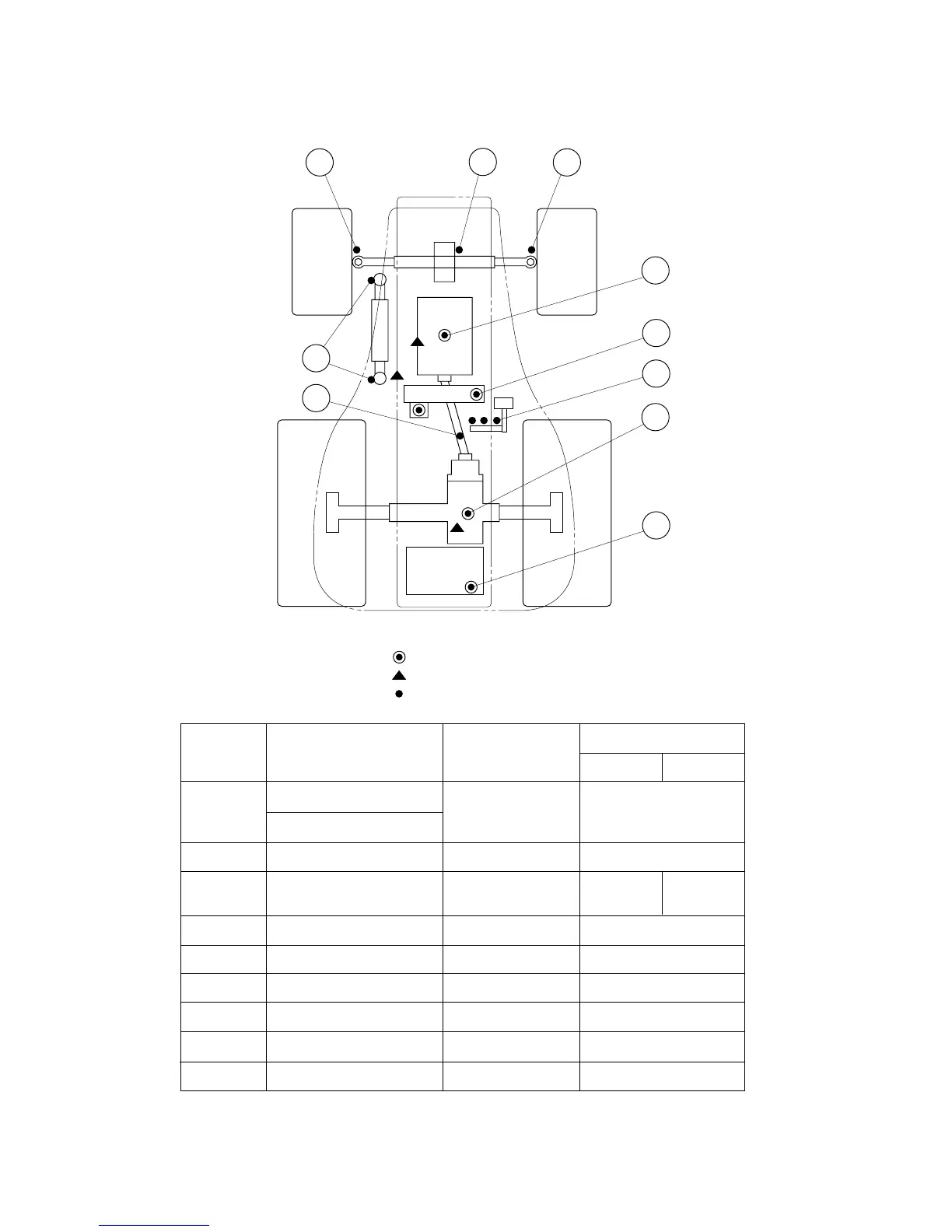

5.FILLING DIAGRAM
Quantity: litre
SGR19/17H-U SGR17H
1 Radiator 3.5
Reserve tank 0.6
2 Engine Engine oil 2.5
3 Transmission case HST oil 6.7 6.3
(SHELLDONAX TD)
4 Center pivot Grease As required
5 Knuckle arms Grease As required
6 Brake shaft/HST hub Grease As required
7 Fuel Diesel fuel 18.5
8 Cylinder ball end Grease As required
9 Drive shaft Grease As required
• Use oil of better than class CC.
• Use ISEKI’s recommended oil.
Ref. No. Filling points Lubricants
Fresh clean water
