SERVICE MANUAL FOR SGR19 & SGR17
4. REAR TRANSMISSION CASE
INSPECTION
(1) Check the gears for damage and tooth bearing.
(2) Check the bevel gears and thrust collars of the
differenctial for wear.
(3) Make sure that each bearing turns smoothly.
(4) Check the oil seal lips and the seal contacting
surfaces on the shaft for damage.

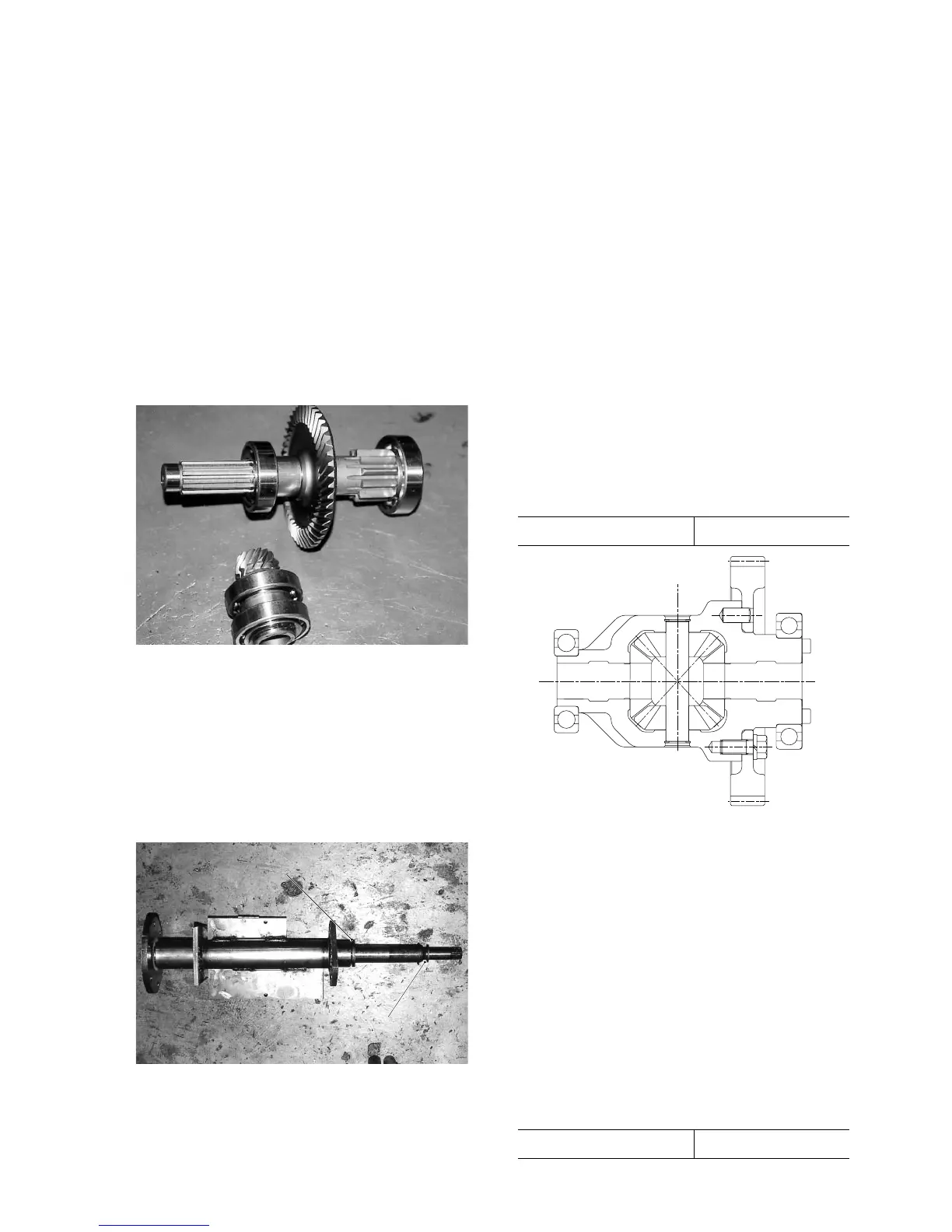

Fig. 4-6
REASSEMBLY
Reassemble in reverse order of disassembly, tak-
ing the following precautions.
(1) Sub-assembling of the wheel shaft
Collar (35×50×03): 2 pieces
Collar (26×35×03)
Collar (35×50×03): 2 pieces
Collar (26×35×03)
Fig. 4-7
• Install the needle roller bearing with snap ring.
Apply grease to the bearing ahead of time.
• Install the oil seal and the shaft into the case.
• Install the collars.
Note:
Install the collar (26×35×03) with the chamfered
side turned upwards.
(2) Sub-assembling the differential case
• The assembled differential case should be tight-
ened by the bolts to specified torque with screw
locking agent applied.
• Install the spur gear (56T) after having installed
bevel gears.
Note:
Install the spur gear with the chamfered side
turned towards the differential case.
Tightening torque 9.0 kgf·m
Fig. 4-8
(3) Install the right wheel shaft into the transmis-
sion case cover.
• Install the needle roller bearing and oil seal with
grease applied ahead of time.
• Install the collar (26×35×03) with the chamfered
side turned outward.
(4) Assembling the transmission case
• Install the ring gear and the differential case into
the left-hand transmission case, and put the right-
hand case over it.
Tightening torque 6.0 kgf·m
