CHAPTER 5. HYDROSTATIC TRANSMISSION
CHAPTER 5. HYDROSTATIC TRANSMISSION
1. CONSTRUCTION AND NAMES OF MAJOR COMPONENTS
(1) Case
(2) Port block
(3) Cylinder block
(4) Slant board
(5) Piston
(6) Valve plate
(7) Valve plate
(8) Pump shaft
(9) Motor shaft
(10) Trunnion shaft
(13) Thrust bearing
(14) Ball bearing
(15) Needle bearing
(16) Bush
(17) Bush
(18) Sliding piece
(19) Cover
(20) Spring
(21) Spring
(22) Spring
(27) Valve
(28) Valve
(30) Poppet
(33) Plug
(34) Plug
(36) Snap-ring
(37) Snap-ring
(38) Snap-ring
(41) Spring holder
(42) Oil seal
(47) O-ring
(48) O-ring
(49) Gasket
(50) Pin
(51) Guide
(52) Ping
(53) Pin
(54) Cradle bearing
(55) Socket head bolt
(61) Oil seal
(62) Pin
(64) Cover
(65) Ball bearing
(66) Ball bearing
(67) Oil seal
(69) Snap-ring
(72) Washer
(74) Plug
(75) Spring
(76) Piston
(79) Shim A
(80) Shim B
(81) O-ring
(82) O-ring
(89) Oil seal case
(90) O-ring
(91) Valve body

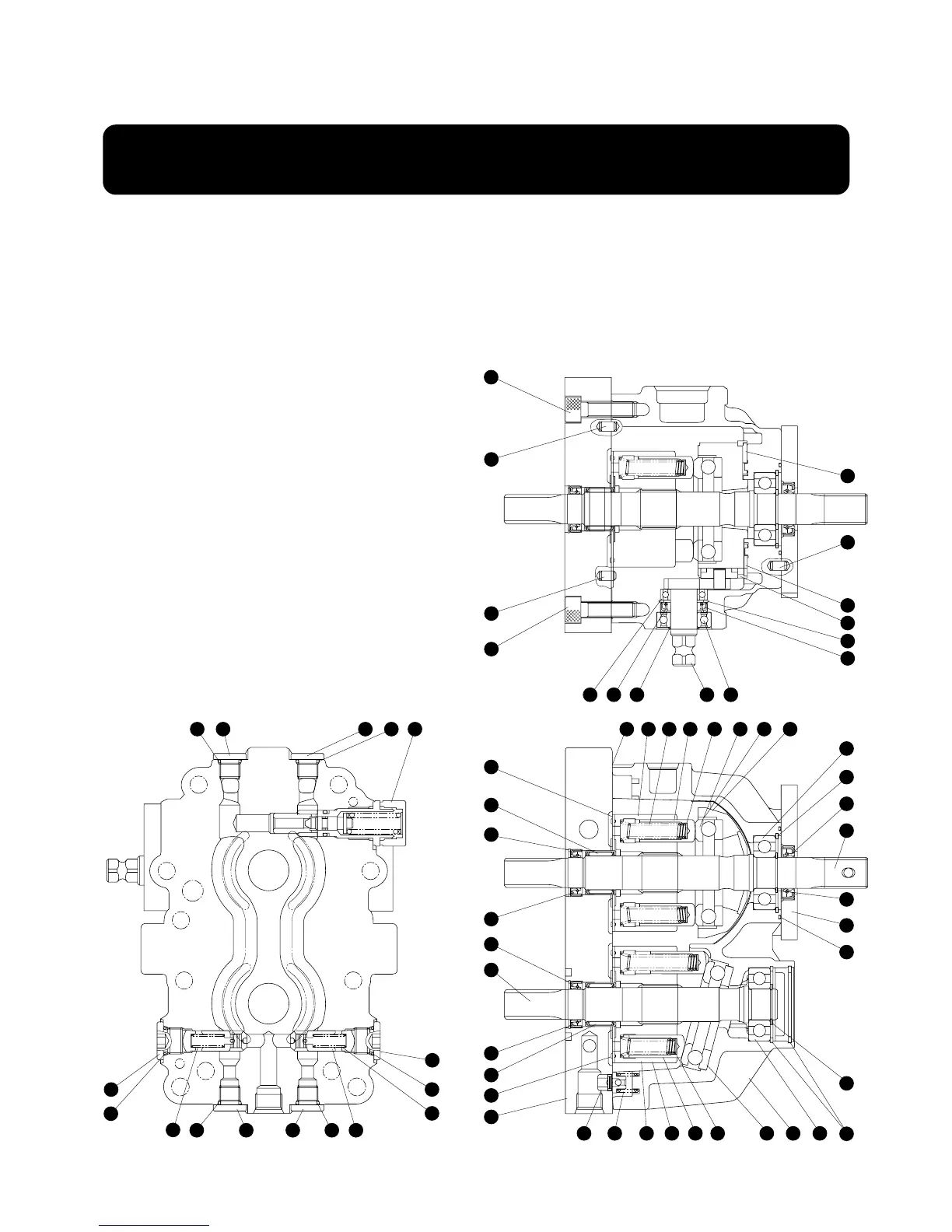

Fig. 5-1
1
2
3
3 4
5
5
6
7
8
9
13 14
15
15
41
42
47
21
21
42
48 48 27
33
3048
47
48 3434
33
34 34
19
36
36
37
82
20
20 41
14
37
61
13 1749
2228
38
38
55
50
50
55
65 69 6672
67
38
50
18
16
16
10
(92) Plug
(93) Spring
(94) Plug
(95) O-ring
(96) O-ring
