CHAPTER 4. TRANSMISSION & RELATED PARTS
3. REAR WHEEL DRIVING MECHANISM

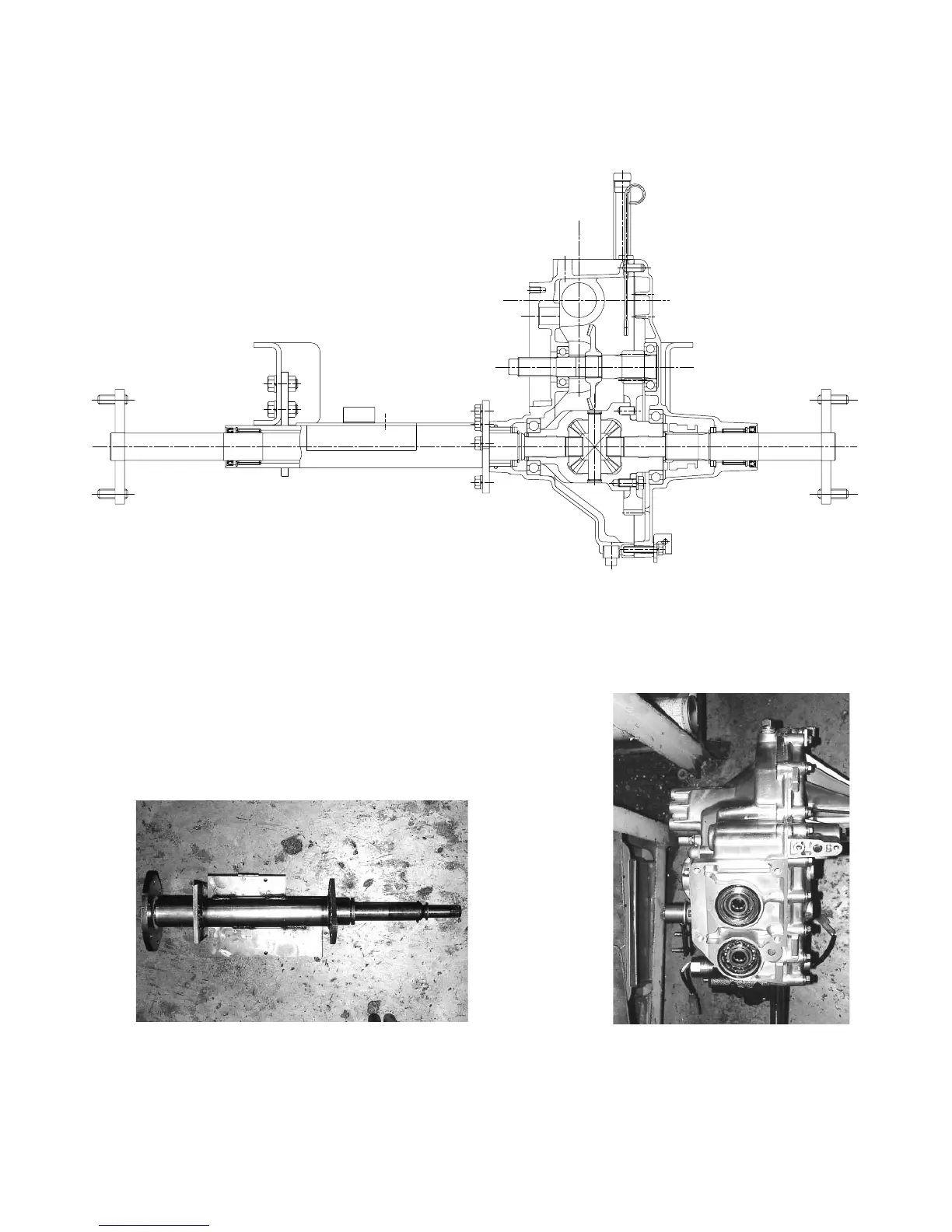

Fig. 4-3
DISASSEMBLY
(1) Remove the transmission assembly from the
chassis, referring to component removal.
(2) Remove the left wheel shaft from the transmis-
sion assembly.
Fig. 4-4
(3) Remove the brake cover tightening bolts and pull
out the parts related to the brake system.
(4) Remove the tightening bolts and separate the
transmission assembly.
Fig. 4-5
