CHAPTER 2. DISASSEMBLY OF MAJOR COMPONENTS

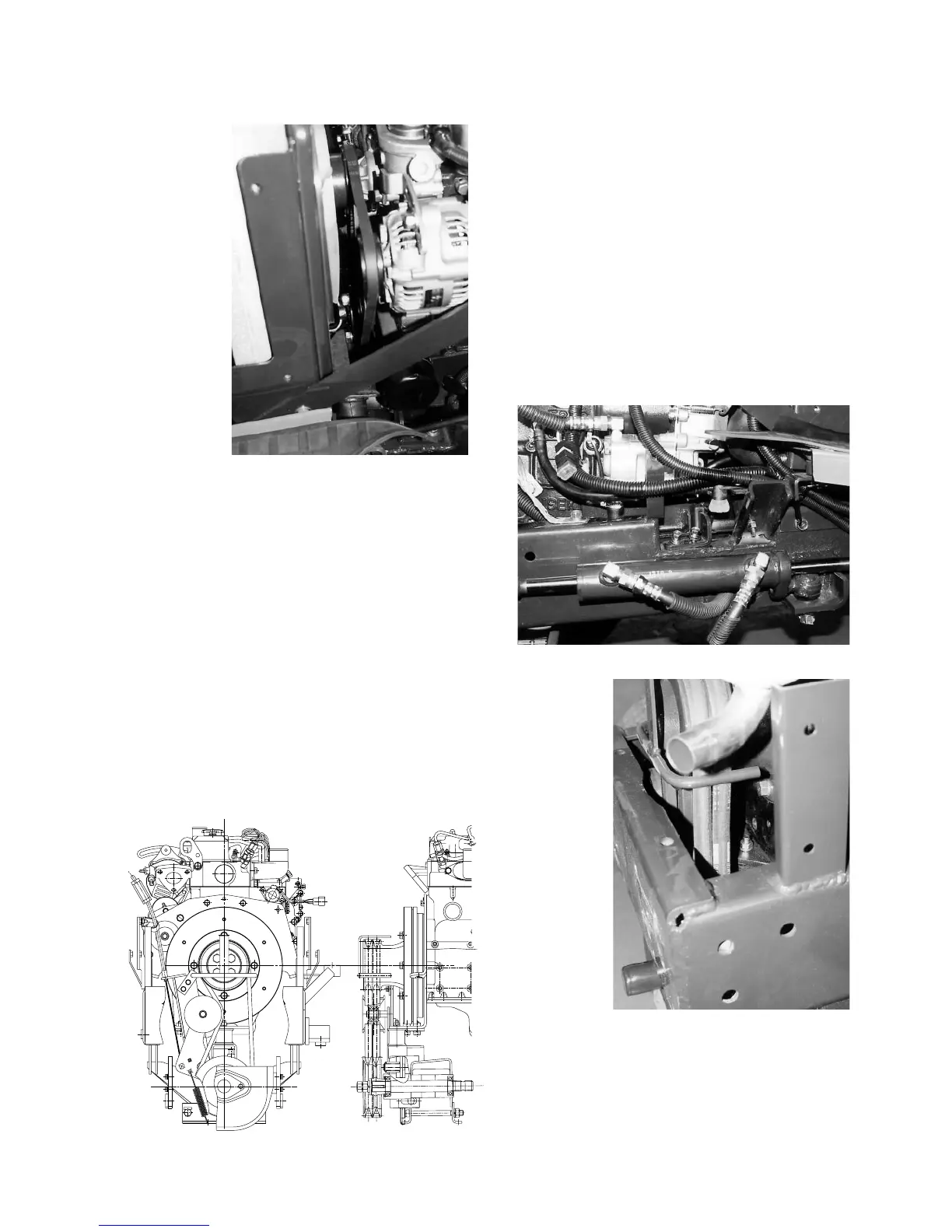

Fig. 2-17
(11) Remove the fuel pipes.
– Remove the fuel return pipes from the noz-
zles.
(12) Remove the drive shaft.
Loosen the bolts of the joint installed on the shaft
end which is connected to the engine.
(13) Remove the control wire for the front PTO
clutch.
– Remove the tension wire from the tension
pulley arm.
(14) Remove the belt stopper.
– Remove the belt cover (PTO shield).
– Remove the two belts.
(15) Remove the snap-ring from the front PTO shaft.
Note:
Remove the spring from the tension pulley.
– Drive the front PTO shaft rearwards with a
plastic hammer or a mallet.
(16) Remove the engine stoppers which are clamped
on both sides of the frame with bolts.
– Remove the bolts which tighten the insulators:
two insulators on RH and LH and one in front.
Fig. 2-18
Fig. 2-19
Fig. 2-20
(17) Remove the engine by lifting it up using the en-
gine hangers.
