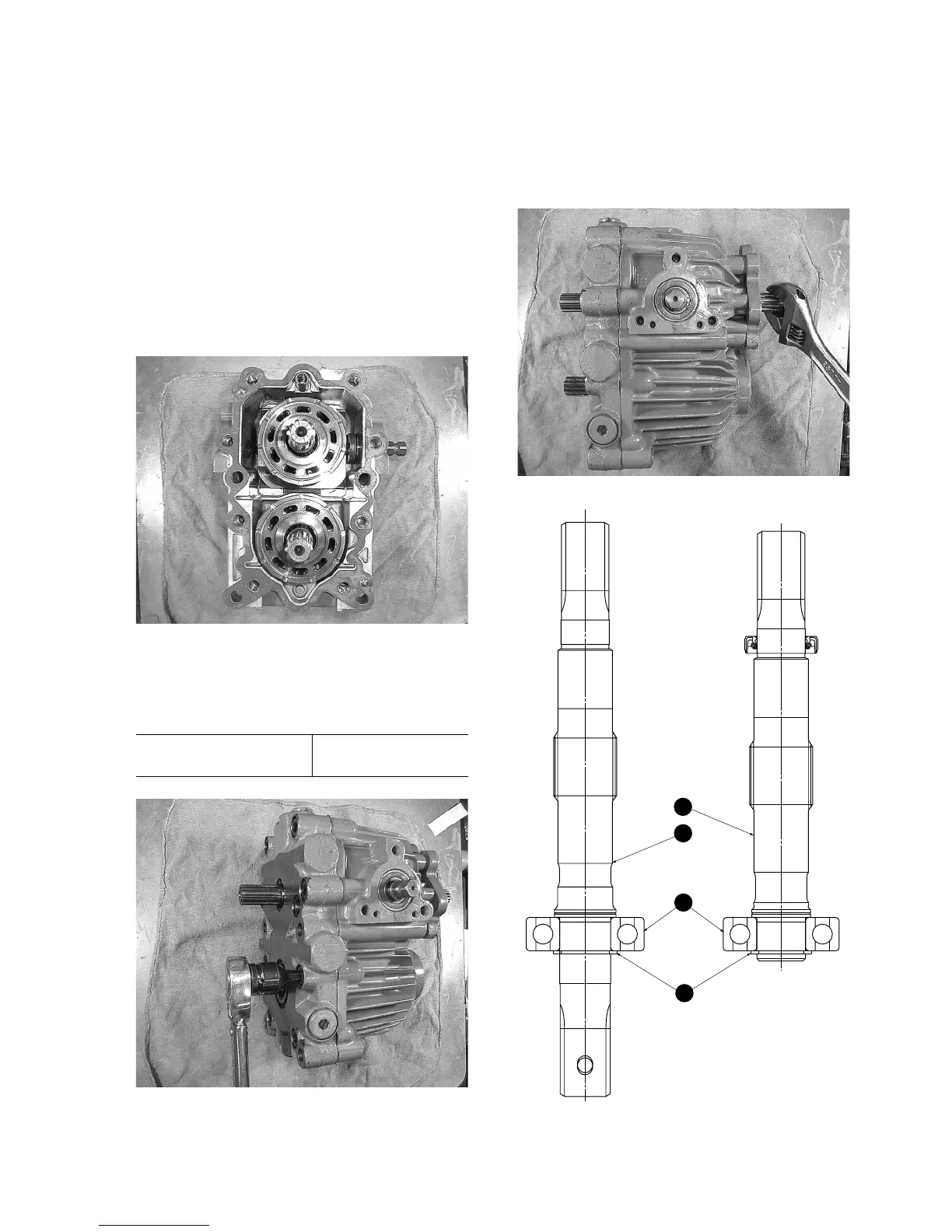

CHAPTER 5. HYDROSTATIC TRANSMISSION
e. After being reassembled, make sure that the
shafts (8 & 9) turn smoothly using an adjustable
end wrench.
b. Install the valve sub-assembly (28).
Apply grease to the valve ahead of time to pre-
vent it from falling.
c. Install the springs (22), pins (50), and gasket (49)
onto the case.
Apply grease to the springs ahead of time in or-
der to prevent them from falling.
Fig. 5-34
d. Install the port block assembly onto the case and
tighten the eight socket-head bolts (50).
Tightening torque of 49.0±5 N·m
socket-head bolt (50)
Fig. 5-35
Fig. 5-36
Fig. 5-37
8
9
14
36
Pressed in
Pump shaft assembly
Motor shaft assembly
(Unit: mm)
