CHAPTER 5. HYDROSTATIC TRANSMISSION

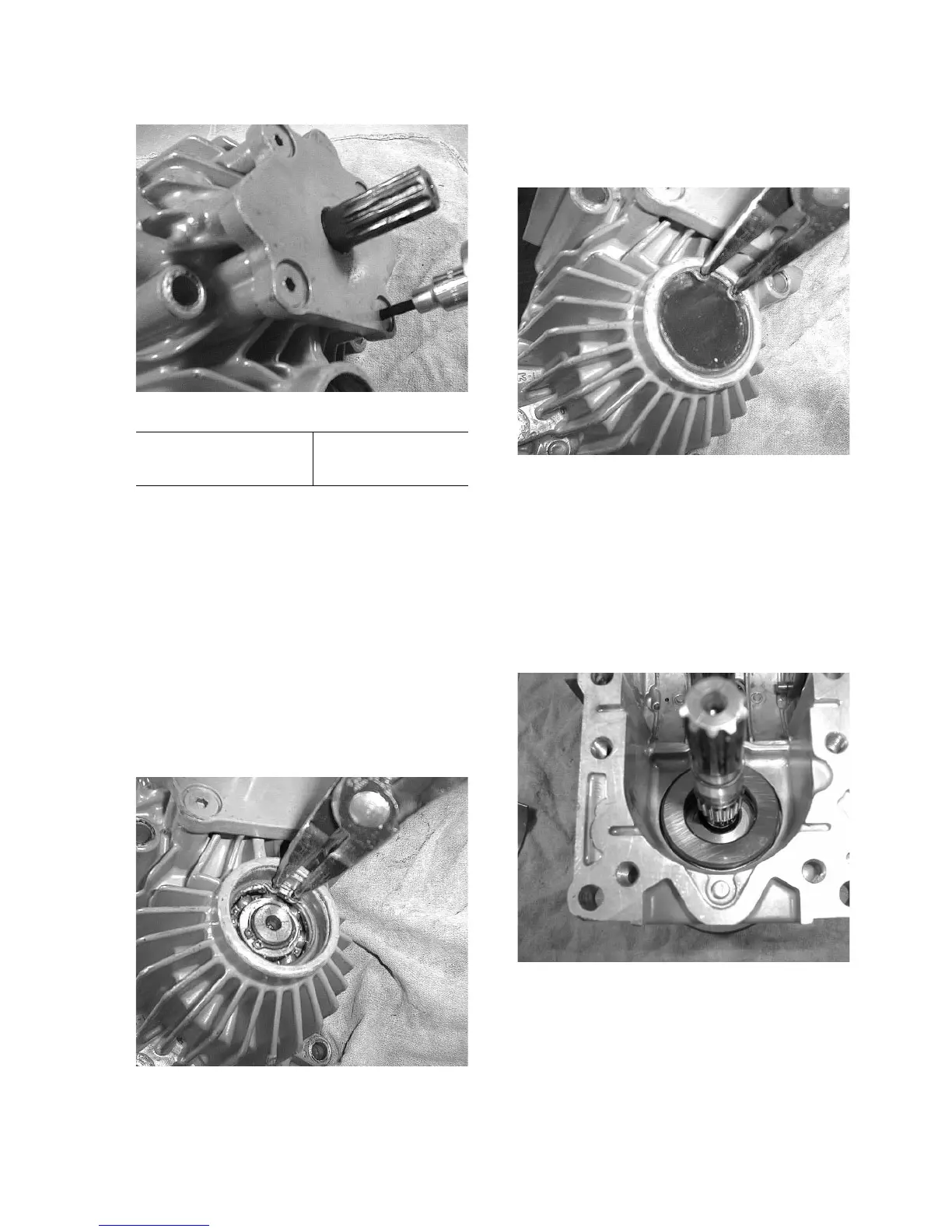

Fig. 5-26
Tightening torqe 17.2±2 N·m
of screw (71)
* As for oil seal installation, refer to page 75.
• Reassembly of the motor side shaft
a. Install the motor shaft assembly, which is com-
posed of the shaft (9), ball bearing (14), and snap-
ring (36), into the case (1) and retain the shaft
with the snap-ring (37).
* As for the details of the motor shaft assembly
refer to Fig. 5-37 and as for ball bearing instal-
lation to page 74.
Fig. 5-27
Fig. 5-29
b. Install the two bushes (16) in the case (1).
c. Install the sliding piece (18) onto the trunnion
shaft (10).
b. Press the bore plug (11) into the case (1) and
install the snap-ring (37) on the outside.
Fig. 5-28
(3) Reassembly of the slant board and thrust bear-
ing
a. Install the thrust bearing (13) into the case (1).
Install the thrust bearing with the side bearing
no marking turned towards the pistons.
