JCM DBV Series User Manual

P/N 960-000180R_Rev. 1 {EDP #233427} © 2016, JAPAN CASH MACHINE CO., LTD.
1-7
General Information DBV® Series DBV-400 Banknote Validator Section 1
Environmental Specifications
Electrical Specifications
Structural Specifications

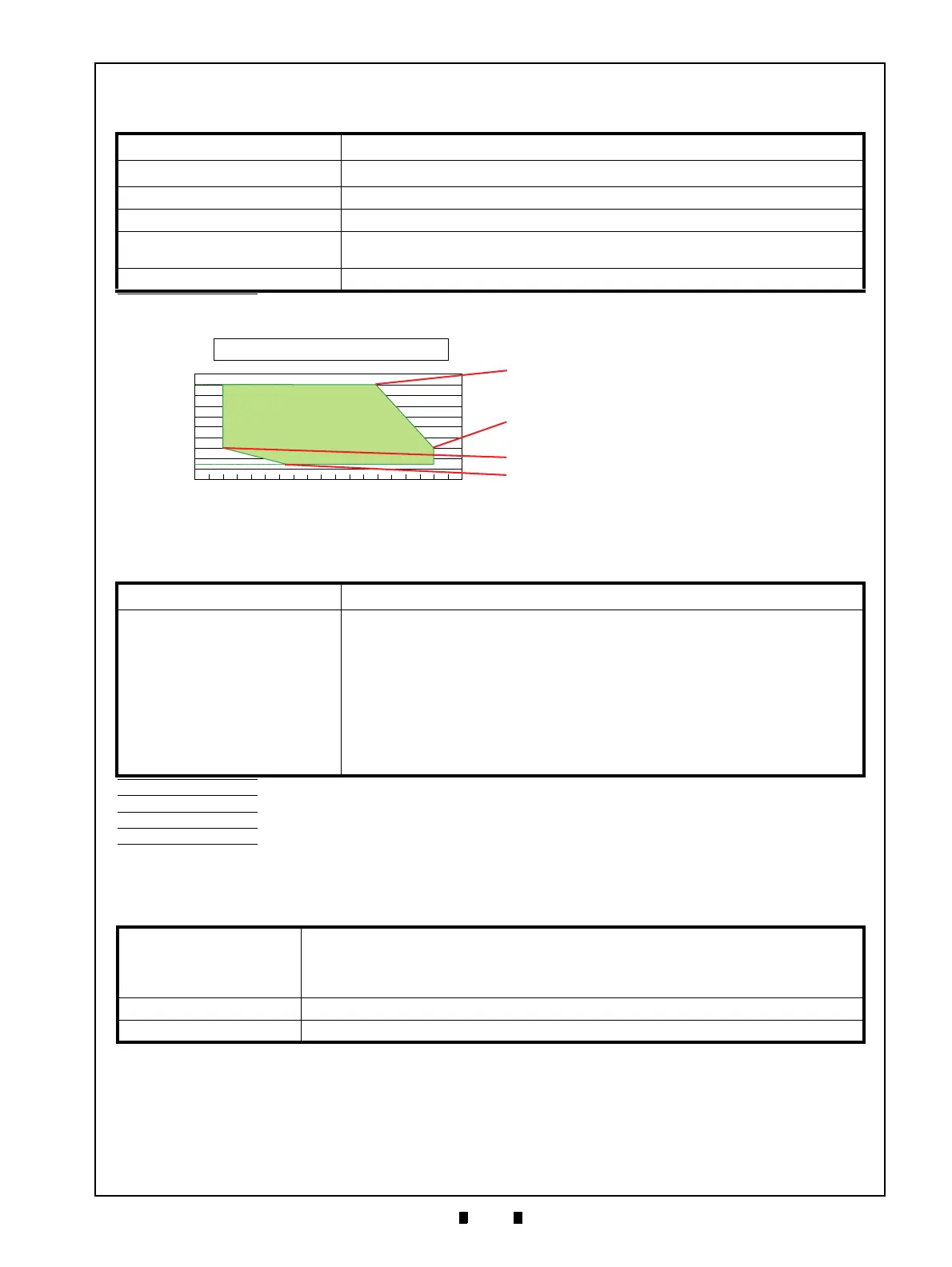

Table 1-5 DBV-400 Environmental Specifications
Operating Temperature:
-15ºC to +60ºC (5ºF to 140ºF)
*
*. Depends on hydrothermal conditions.
Storage Temperature:
-20ºC to +60ºC (-4ºF to 140ºF)
*
Relative Operating Humidity: 15% to 90% RH (non-condensed)
Relative Storage Humidity: 30% to 65% RH (non-condensed)
Visible Light Sensitivity:
Avoid contact with direct sunlight
(Interior lighting must be incandescent with a
Radiant Angle of 15 Degrees or more having an Illumination index of 3000 Lux or less)
Installation: Indoors Only
Table 1-6 DBV-400 Electrical Specifications
Supply Voltage
*
:
*. Use a Current Source Limiting Power Supply.
12V DC (-5%) - 24V DC (+5%)
†
†. The DBV-400 Unit is designed to be connected to a Power Supply having any voltage between 12V DC and 24V DC.
Current Consumption:
Standard Operation
‡
• Inrush = 12V DC = 2.5A, 24V DC = 2.0A
• Standby = 12V DC = 0.12A, 24V DC = 0.07A
• Operation = 12V DC = 1.4A, 24V DC = 0.7A
• Peak = 12V DC = 2.2A, 24V DC = 1.6A
Sleep Mode (Standby)
**
• Mode A = 35µA
††
• Mode B = 95µA
††
‡. The Standard Operation indicates the DBV-400 Unit current range.
**. The two Sleep Mode options (Mode A [Host Wakeup Mode]/Mode B [Entrance Sensor Wakeup Mode]) can be used at the same time.
††.A representative value derived from actual and designed values.
Table 1-7 DBV-400 Structural Specifications
Weight:
DBV-400 Unit (with the Bezel): Approximately 0.89kg (1.96lbs.)
DBV-400 with Small Cash Box (300 notes): Approximately 1.34kg (2.95lbs.)
DBV-400 with Medium Cash Box (500 notes): Approximately 1.42kg (3.31lbs.)
DBV-400 with Large Cash Box (1000 notes): Approximately 1.62kg (3.57lbs.)
Mounting: Horizontal
Outside Dimensions: See “Entire Unit Outside Dimensions” on page 1-8 of this Manual
-10-20 10 20 4030
0
50
0
60
70
10
20
30
40
50
60
70
80
90
100
Humidity [%RH]
Temperature [ºC]
Allowable Operating Temperature
and Humidity Range
-15ºC/30RH%
40ºC/90RH%
Hydrothermal Condition Table
60ºC/30RH%
10ºC/15RH%
