Exploded Views and Parts Lists DBV™ Series DBV-400 Banknote Validator Section 7
DBV-400 Bezel Unit Exploded View
DBV-400 Bezel Unit Parts List
Table 7-7 DBV-400 Bezel Unit Parts List
Ref No. EDP No. Description QTY Remark
600
238201 DBV-400 Mount Holder
1
238202 DBV-400 TOB Mount Hold 1
For TOB Bezel
601 233991 Bezel Harness 1
602 238054 Bezel Road 1
603
234079 DBV-400 Standard Bezel Insert 1
For Standard Bezel & Compatible Bezel
238567 DBV-400 Snack Mask Bezel Insert 1
For Snack Mask Bezel & Snack Mask
Bezel (Green)
238569 DBV-400 TOB Bezel Insert 1
For TOB Bezel & Euro Bezel
604
234078 DBV-400 Standard Bezel 1
For Standard Bezel
234080 DBV-400 Snack Mask Bezel 1
For Snack Mask Bezel
238568 DBV-400 TOB Bezel 1
For TOB Bezel
240073 DBV-400 Euro Bezel 1
For Euro Bezel
240074 DBV-400 Compatible Bezel 1
For Compatible Bezel
242204 DBV-400 Snack Mask Bezel (Green) 1
For Snack Mask Bezel (Green)
605 234035 Bezel Sponge 1
TOB Bezel Only
606 120985 Window Spacer 1
For Snack Mask Bezel & Snack Mask
Bezel (Green)
607 062448 M3x6 Flat Head (F-Loc) 3
608 104010
2.6x6 Phillips, Self-Tapping, Binding Head Screw
*
*. P-TITE is recommended.
2

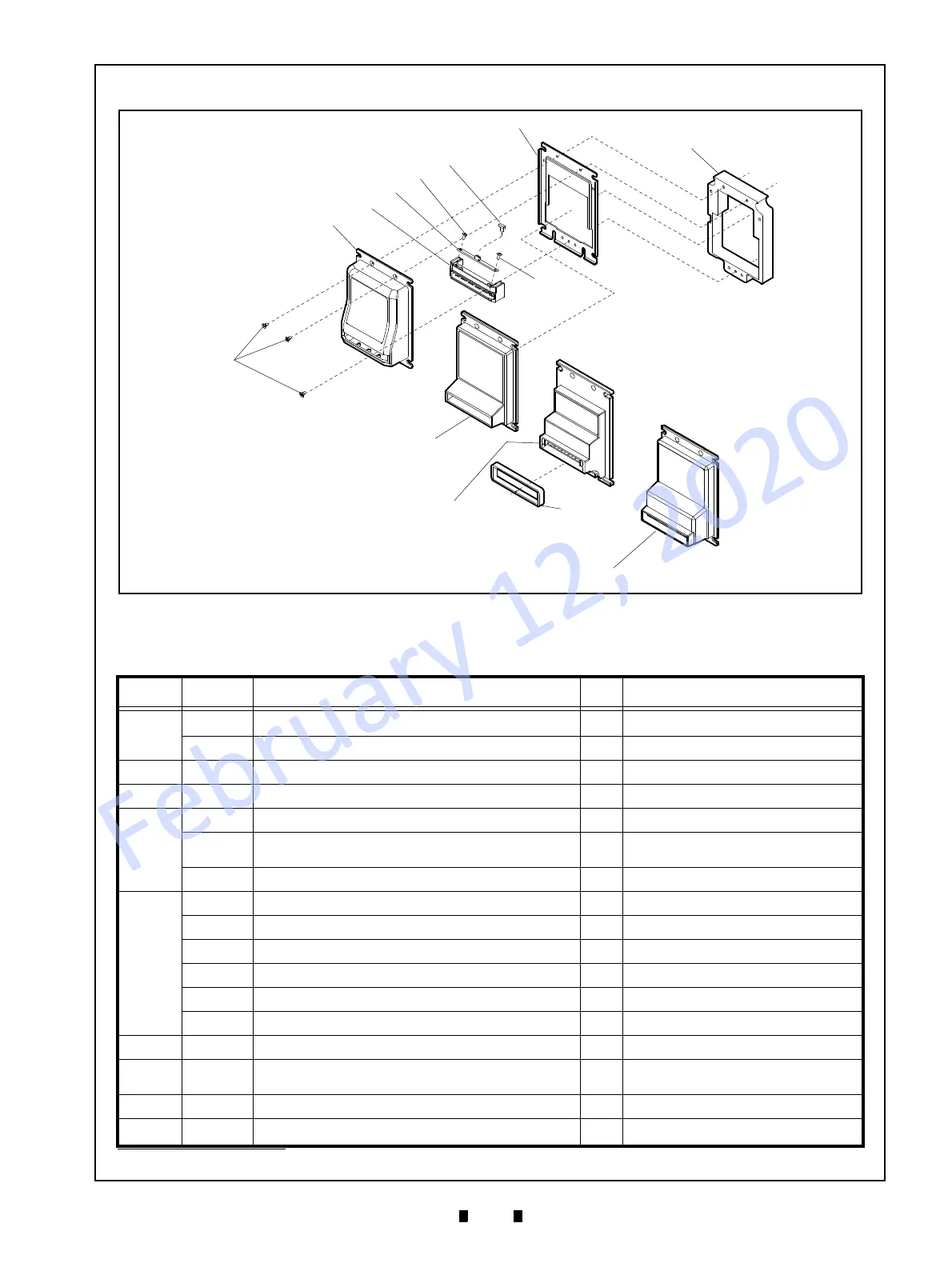

Figure 7-7 DBV-400 Bezel Unit Exploded View
Figure 7-7 DBV-400 Bezel Unit Exploded View
600
601
602
603
604
607
608
608
606
TOB Bezel
605
JCM Standard Bezel
Snack Mask Bezel
Euro Bezel/Compatible Bezel
To Next Page
