JCM DBV Series User Manual

P/N 960-000180R_Rev. 1 {EDP #233427} © 2016, JAPAN CASH MACHINE CO., LTD.
2-6
Section 2 DBV® Series DBV-400 Banknote Validator Installation
ID-002 Pulse Connector Pin Assignments
Table 2-7 lists the DBV-400 ID-002 Pulse Connector Pin Assignments.

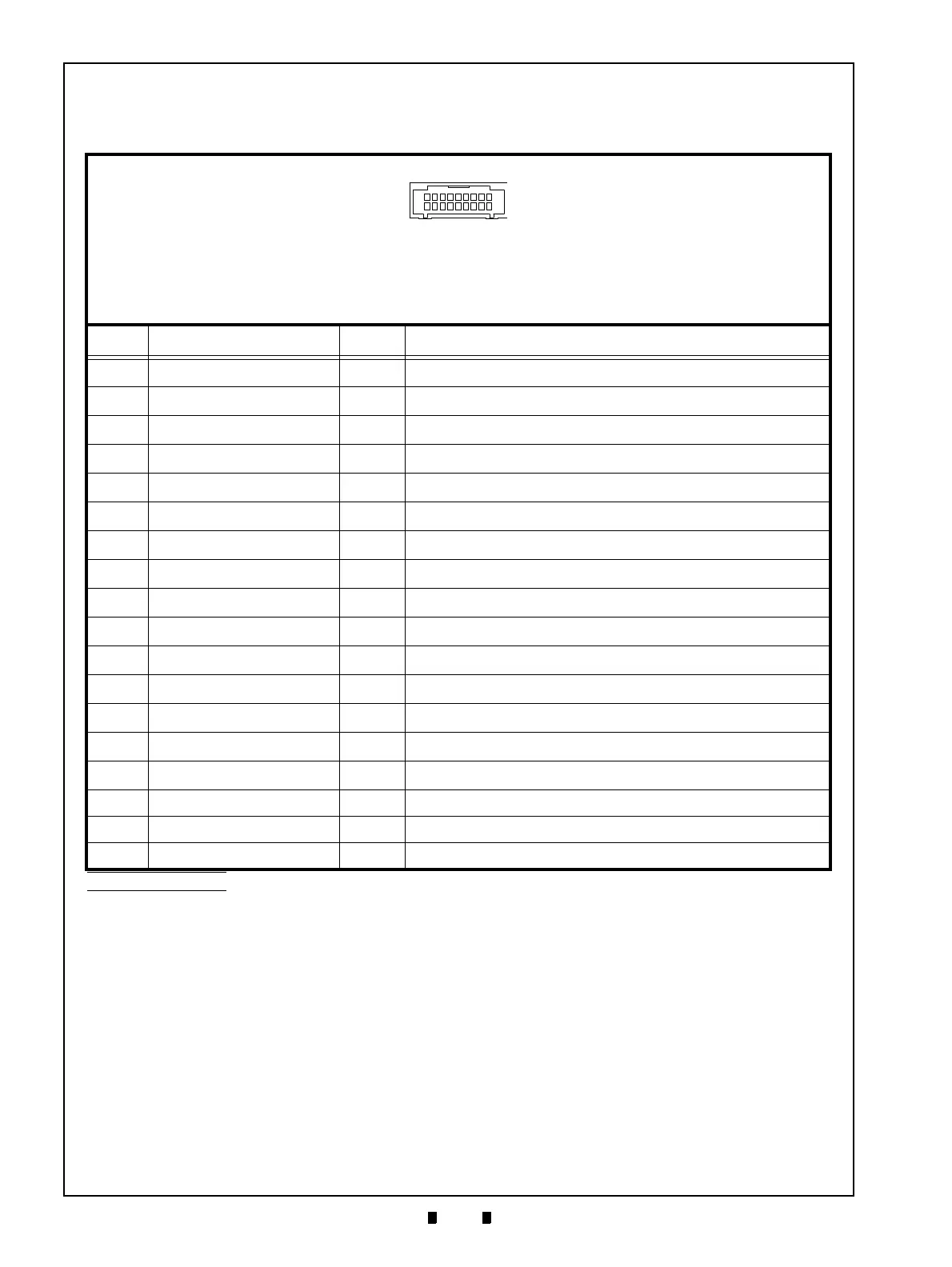

Table 2-7 DBV-400 ID-002 Pulse Connector Pin Assignments
CN1 Connector (DBV-400 Side): 74164-0118 (Molex)
Housing (Cable Side): 50-57-9309 SL
™
Crimp Housing, Single Row, Version D, Back Ribs, 9 Circuits (Molex)
015-04-5184 2.54mm SL
™
Interim Clip, 18 Circuits, Polarized (Molex)
16-02-0069 SL
™
Crimp Terminal, Series70058, Female, with Tin (Sn) Plated Contact, 24-30 AWG
(Maximum Insulation Diameter: Less than φ1.52) (Molex)
Recommended Wire (for Power Supply and Power Ground): AWG #24 (Maximum Insulation Diameter: Less than φ1.52)
Recommended Wire (for Signal Ground): AWG #24 - 30 (Maximum Insulation Diameter: Less than φ1.52)
Pin No. Signal Name
I/O
*
*. I/O (input/output) is the terminal as viewed from the Banknote Validator’s side.
Function
1 +12V - +24V -
Power Supply
2GND
-
Power Ground (0V DC)
3 +12V - +24V
-
Power Supply
4GND
-
Power Ground (0V DC)
5
--
Reserved
6
--
Reserved
7
--
Reserved
8
--
Reserved
9
--
Reserved
10 GND
-
Signal Ground (0V DC)
11
VEND OUT
VEND
†
†. The voltage level should be based on the TTL logic levels.
12
--
Reserved
13
--
Reserved
14 D/E
IN
D/E
†
15
--
Reserved
16
BUSY OUT
BUSY
†
17 ABN OUT
ABN
†
18 FULL OUT
FULL
†
1
2
17
18
