JCM DBV Series User Manual

P/N 960-000180R_Rev. 1 {EDP #233427} © 2016, JAPAN CASH MACHINE CO., LTD.
2-22
Section 2 DBV® Series DBV-400 Banknote Validator Installation
Operational Flowchart (Continued 1)
Figure 2-19 depicts a typical DBV-400 Validation Banknote acceptance flow process.
Figure 2-20 depicts a typical DBV-400 Stacking Banknote acceptance flow process.

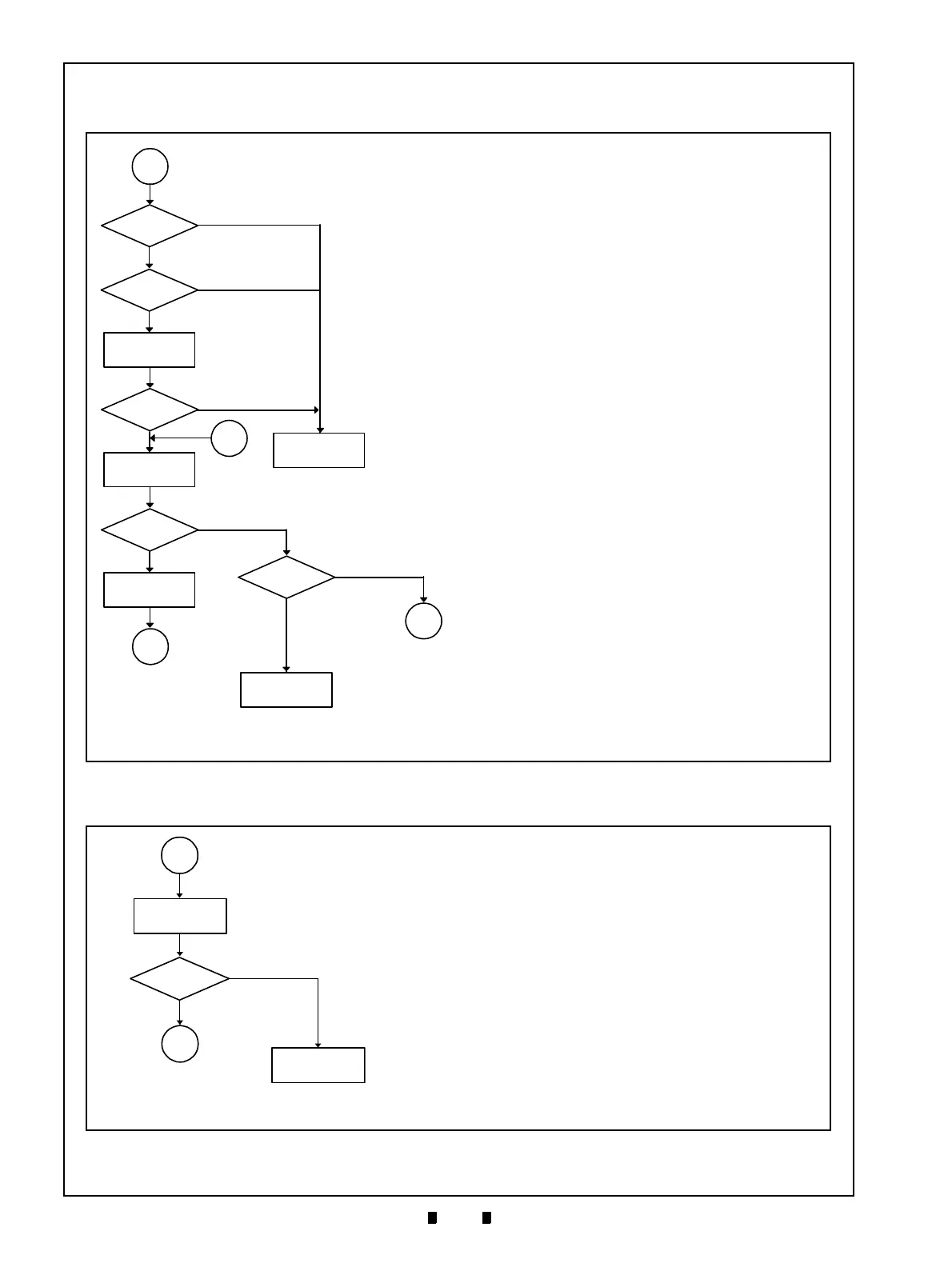

Figure 2-19 DBV-400 Operational Flowchart (Validation)
Figure 2-19 DBV-400 Operational Flowchart (Validation)
a) Is the Banknote Authentic?
b) Is the Banknote acceptable?
d) Has STACK Command been received?
D) To “f” function on this chart
h) Retried Acceptance Operation three times?
i) VEND Signal Output
j) Stop operation (Abnormal Signal Output)(*1)
A) From “Initialize” Flow (Figure 2-18)
c) Denomination Signal Output
g) Is the Banknote transported to Stacker?
D) To “f” function on this chart
f) Transporting the Banknote
B) To “Stacking” Flow (Figure 2-20)
*1). When an abnormal signal is received, remove and reapply Power to the DBV-400 Unit after resolving the problem, or send
a RESET Command from the Host Machine.
YES
NO
A
B
D
D
NO
YES
NO
NO
YES
YES
NO
YES
a
b
c
d
e
f
g
i
h
j
e) Return the Banknote
Figure 2-20 DBV-400 Operational Flowchart (Stacking)
Figure 2-20 DBV-400 Operational Flowchart (Stacking)
a) Stack the Banknote
b) Is the Cash Box full?
c) Stop operation (Stacker Full Signal Output)(*2)
B) From “Validation” Flow (Figure 2-19)
C) To “Initializing” flow (Figure 2-18)
*2). When a “Cash Box Full” Signal is received, retrieve the Banknotes from the Cash Box and re-seat the Cash Box back into
the Unit. The DBV-400 Unit will automatically perform its re-initialization movement operation.
YES
NO
a
b
C
B
c
