JCM DBV Series User Manual

P/N 960-000180R_Rev. 1 {EDP #233427} © 2016, JAPAN CASH MACHINE CO., LTD.
6-10
Section 6 DBV® Series DBV-400 Banknote Validator Calibration and Testing
This section provides Performance Testing
instructions for the DBV-400 Unit. This section
contains the following information:
• Performance Test using a PC
• Performance Test without a PC
Choose one (1) of the two (2) above Performance
Test Procedures by selecting the one related to the
particular circumstance desired.
Performance Test Using a PC
See “Workbench Tool Requirements With Refer-
ence Paper and a PC” on page 6-1 for the Tools and
Equipment interconnects necessary to perform a
DBV-400 Performance Test using a PC.
Table 6-2 lists the test items for the DBV-400 Per-
formance Test using a PC.
Perform the following steps to prepare the DBV-
400 for the Performance Test Procedures:
1. Remove electrical power from the DBV-400 Unit.
2. Set DS1 #8 to
ON (Figure 6-45).
3. Apply electrical power to the DBV-400 Unit. The
Bezel LED will flash at a Green color rate when
the DBV-400 Unit is in the Performance Test
Stand-By Mode.
4. Connect the PC and the DBV-400 Unit together
using the recommended USB Cable.
5. Launch the “
JCM Tool Suite Standard Edition”
Application. The “
JCM Tool Suite Standard
Edition
” Screen shown in Figure 6-46 will appear
when the application becomes active.
6. Click the “
Service Mode” Pull-down Menu, and
select “
Performance Test” (Figure 6-46 a).
7. Performance Test will appear at the top of the
Main Screen (Figure 6-47).
Performance Tests
Table 6-2 Performance Test Items Using a PC and Test Menu Selections
Test Item Test Menu Selection (On PC Screen) Test Purpose
Feed Motor Normal Rotation
FEED_MOTOR_FWD_TEST
Speed Check while Normal Rotation
Feed Motor Reverse Rotation
FEED_MOTOR_REV_TEST
Speed Check while Reverse Rotation
Stacking
STACK_TEST
Stacking Mechanism Movement Check
at 3 seconds interval
Sensor Test
SENSOR_TEST
Each Sensor Performance Check
DIP Switch 1 Test
DIPSWITCH1_TEST
DIP Switch 1 Performance Check
DIP Switch 2 Test
DIPSWITCH2_TEST
DIP Switch 2 Performance Check
Bezel LED Test
LED_TEST
Bezel LED Performance Check
Performance Test Preparation

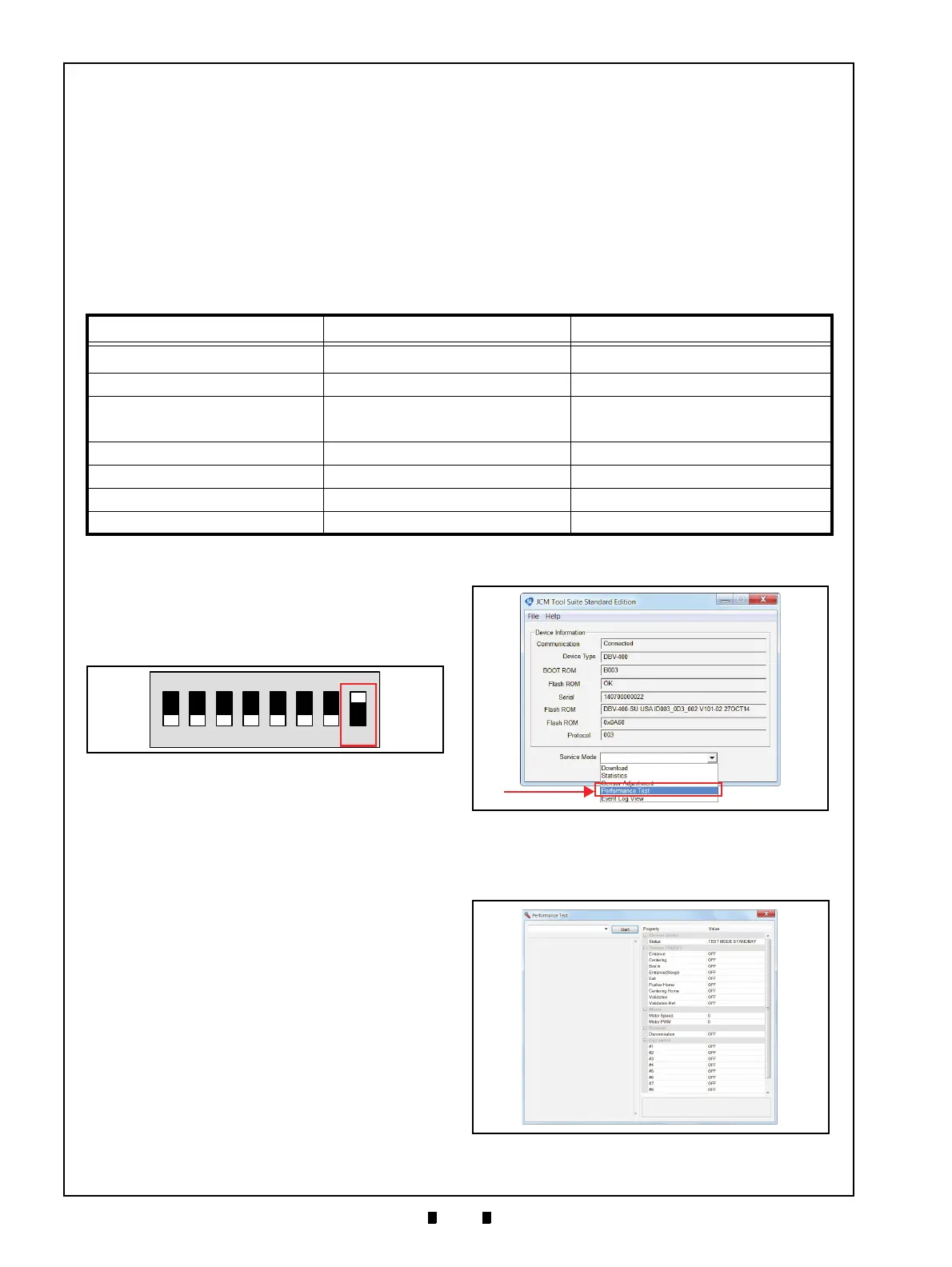

Figure 6-45 DS1 Switch Settings 1
Figure 6-45 DS1 Switch Settings 1
ON
12345678
Figure 6-46 JCM Tool Suite Standard Edition
Screen/Pull-Down Menu 2
Figure 6-46 JCM Tool Suite Standard Edition
Screen/Pull-Down Menu 2
a
Figure 6-47 Main Screen
Figure 6-47 Main Screen
