Section 6 DBV® Series DBV-400 Banknote Validator Calibration and Testing
Performance Test Without a PC
To perform the Aging Test, proceed as follows:
1. Remove electrical power from the DBV-400 Unit.
2. Set the DBV-400 DIP SW1 #4 and #8 to
ON
(Figure 6-63) and the all DIP SW2 switches to
OFF (Figure 6-64).
3. Connect the Power Harness and apply electrical
power to the DBV-400 Unit.
4. To start the Aging Test, set the DBV-400 DIP
SW1 #8 to
OFF (Figure 6-65).
5. DIP SW1 #6 and #7 can be used to change inter-
val timing of the Aging Test. (See Table 6-5
Aging Test Interval Timing Settings for Switch
#6 and #7 settings for each interval.)
6. Place the Cash Box onto the DBV-400 Unit to
begin the aging movement.
7. Remove the Cash Box and set the DIP SW1 #8 to
ON to end the Aging Test.
This completes the Aging Test.
Table 6-4 Performance Test Items and DIP Switch 1 Settings
Test Item
DIP Switch 1 Setting
Test Purpose
*
1234567
8
†
Feed Motor Normal Rotation
ON ON/OFF Speed Check while Normal Rotation
Feed Motor Reverse Rotation
ON ON/OFF Speed Check while Reverse Rotation
Stacking
ON ON/OFF
Stacking Mechanism Movement
Check at 3 seconds intervals
Aging Test
‡
ON ON/OFF
Aging Movement Check at intervals
set by DIP SW1 #6 & #7
Sensor Test
ON ON/OFF Each Sensor Performance Check
Acceptance Test
†
ON ON ON ON
ON/OFF Acceptance Check with Validation
Acceptance Test
†
ON ON ON ON
ON ON/OFF Acceptance Check without Validation
Reject Test
†
ON ON ON ON ON
ON ON/OFF Reject Check without Validation
DIP Switch 1 Test
ON ON ON ON ON ON ON ON/OFF
DIP Switch 1 (SW1) Performance
DIP Switch 2 Test
ON ON ON ON ON ON ON/OFF
DIP Switch 2 (SW2) Performance
Bezel LED Test
ON ON ON ON ON/OFF Bezel LED Performance Check
Push Button Test
------- - Push Button Performance Check
*. If any errors occur, refer to Table A-4 “LED Flash Error Codes” on page A-3.
†. DIP SW1 #8 Setting; ON to standby or stop test, OFF to start test.
‡. This test is available when the Cash Box is correctly in place.
See “Workbench Tool Requirements Without a PC” on page 6-1 for the Tools and Equipment
interconnects necessary to perform a DBV-400 performance Test without a PC.
Table 6-4 lists the items and DIP Switch 1 (DIP SW1) settings for the DBV-400 Performance Test.

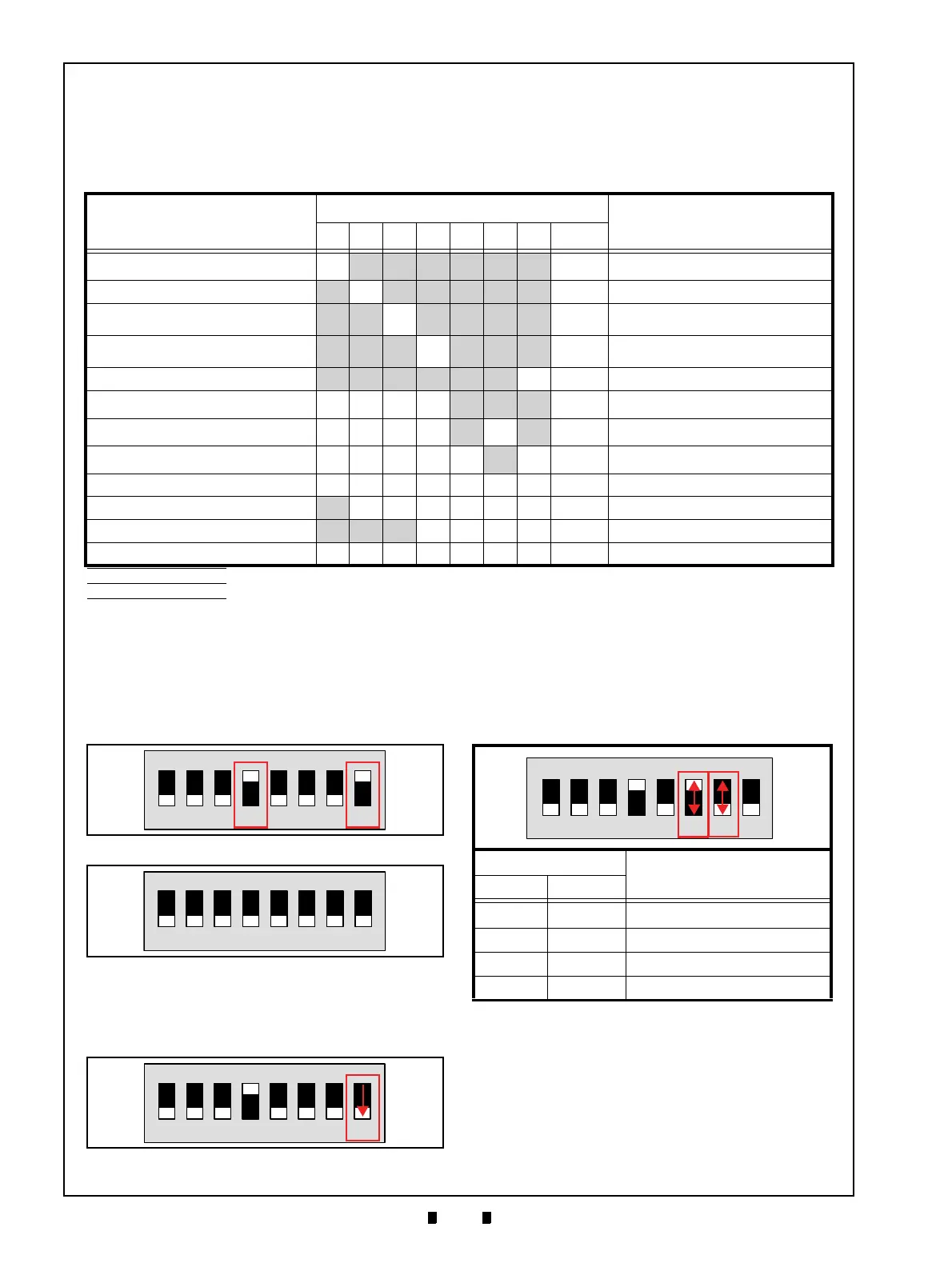

Figure 6-63 Aging Test DIP SW1 Setting
Figure 6-63 Aging Test DIP SW1 Setting
Figure 6-64 Aging Test DIP SW2 Setting
Figure 6-64 Aging Test DIP SW2 Setting
Figure 6-65 DIP SW1 #8 OFF
Figure 6-65 DIP SW1 #8 OFF
Table 6-5 Aging Test Interval Timing Settings
DIP Switch 1
Interval
#6
#7
OFF OFF
30 seconds
ON OFF
1 second
OFF ON
2 seconds
ON ON
10 seconds
