JCM DBV Series User Manual

P/N 960-000180R_Rev. 1 {EDP #233427} © 2016, JAPAN CASH MACHINE CO., LTD.
6-4
Section 6 DBV® Series DBV-400 Banknote Validator Calibration and Testing
5. Launch the “JCM Tool Suite Standard Edition”
Application. The Screen shown in Figure 6-15
will appear when the application opens.
When downloading the Software Program to the
DBV-400 Unit for the first time, the Device
Information will not appear (Figure 6-16).
6. Click and hold-down the “Service Mode” Pull-
Down Menu and select “
Download” (Figure 6-17
a) from the Menu. The selected Field will high-
light Blue, and the Bezel LED will flash at a
Green Color rate.
7. When “Download” is selected, the “
JCM Down-
loader Suite Edition Version X.XX
” will
automatically begin functioning, and the Screen
shown in Figure 6-18 will appear. Click on the
“
Browse” Screen Button (Figure 6-18 a).
8. Click the appropriate DBV-400 Software Pro-
gram Version shown in
the Download File Screen
(Figure 6-19 a), and then click on the “
Open”
Screen Button (Figure 6-19 b).
9. When the “
JCM Downloader Suite” Screen
re-appears, click the “Download” Screen
Button (Figure 6-20 a) to begin the Software
download into the DBV-400 Unit.
The
Download Screen will display a Progress Bar
during the download operation (Figure 6-20 b),
and a Blue Text Line below the Download Screen
Button will display the download Percentage as
“Downloading : XX%” (Figure 6-20 c).
The Bezel LED will flash a Green Color rate at a
longer interval during this operation.
10. When the download is complete, the “
Download
Success. Reset Done. Waiting for USB Cable
Disconnection.
” Status Line will appear (Figure 6-
21 a). Confirm that the Host Checksum (CRC)
value and the Device Checksum (CRC) value
match identically (Figure 6-21 b).
This completes the DBV-400 Software Download-
ing Procedures.

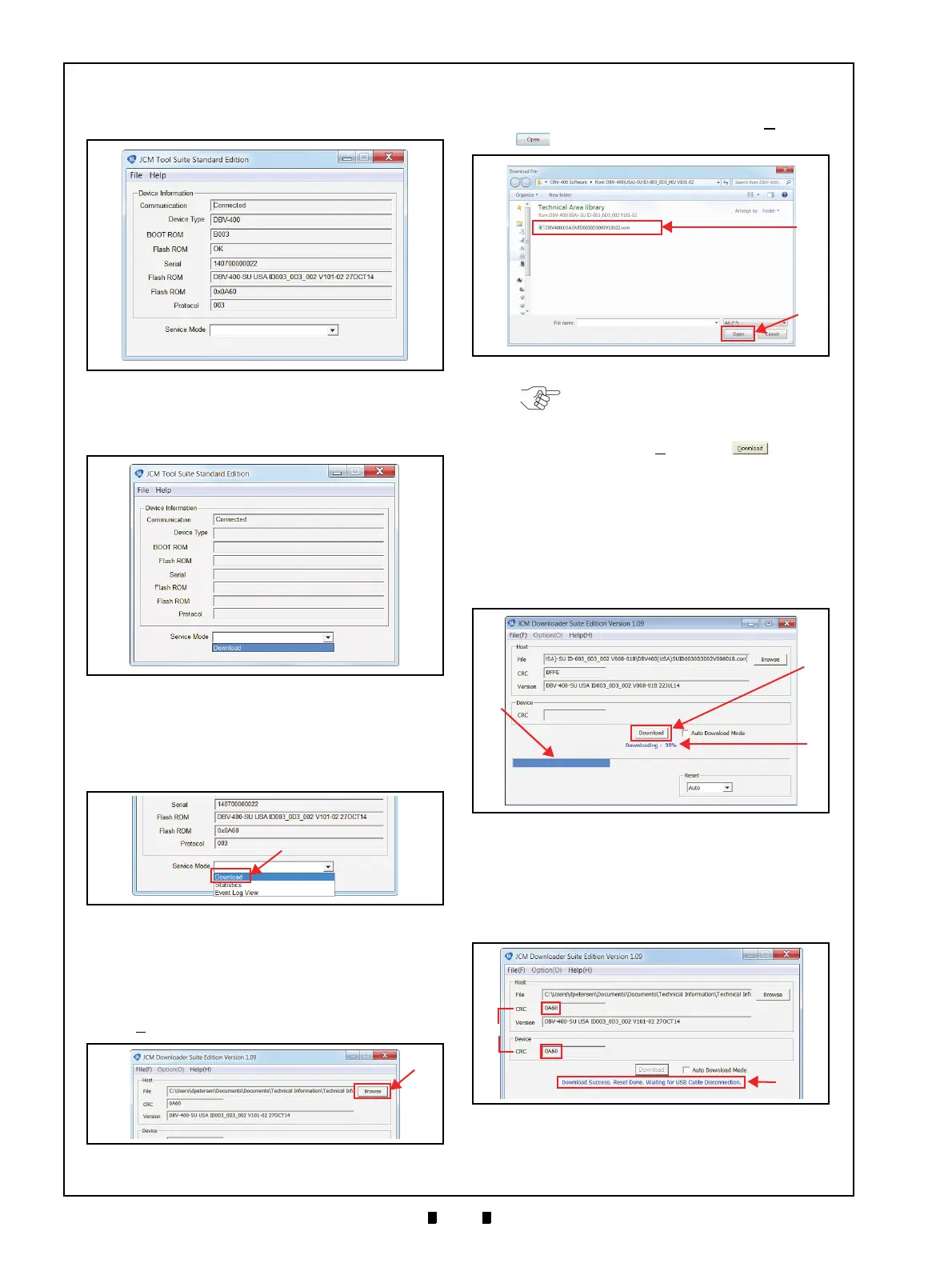

Figure 6-15 Normal Upgrade Screen
Figure 6-15 Normal Upgrade Screen
Figure 6-16 Initial Download Screen
Figure 6-16 Initial Download Screen
Figure 6-17 JCM Tool Suite Standard Edition
Screen Pull-Down Menu
Figure 6-17 JCM Tool Suite Standard
Edition Screen Pull-Down Menu
a
Figure 6-18 Browse Screen Button Location
Figure 6-18 Browse Screen Button Location
a
Figure 6-19 DBV-400 Software Program Selec-
Figure 6-19 DBV-400 Software Program Selection
a
b
NOTE: Select the correct DBV-400
Firmware for the Country desired.
Figure 6-20 Download Progress Screen 1
Figure 6-20 Download Progress Screen 1
a
b
c
Figure 6-21 Download Completed Screen 1
Figure 6-21 Download Completed Screen 1
a
b
=
