GETTING TO KNOW YOUR VEHICLE 43
3. Remove the plastic wiring access door under the instru-
ment panel by sliding the plastic panel along the door
frame
toward the seats until the tabs are detached.

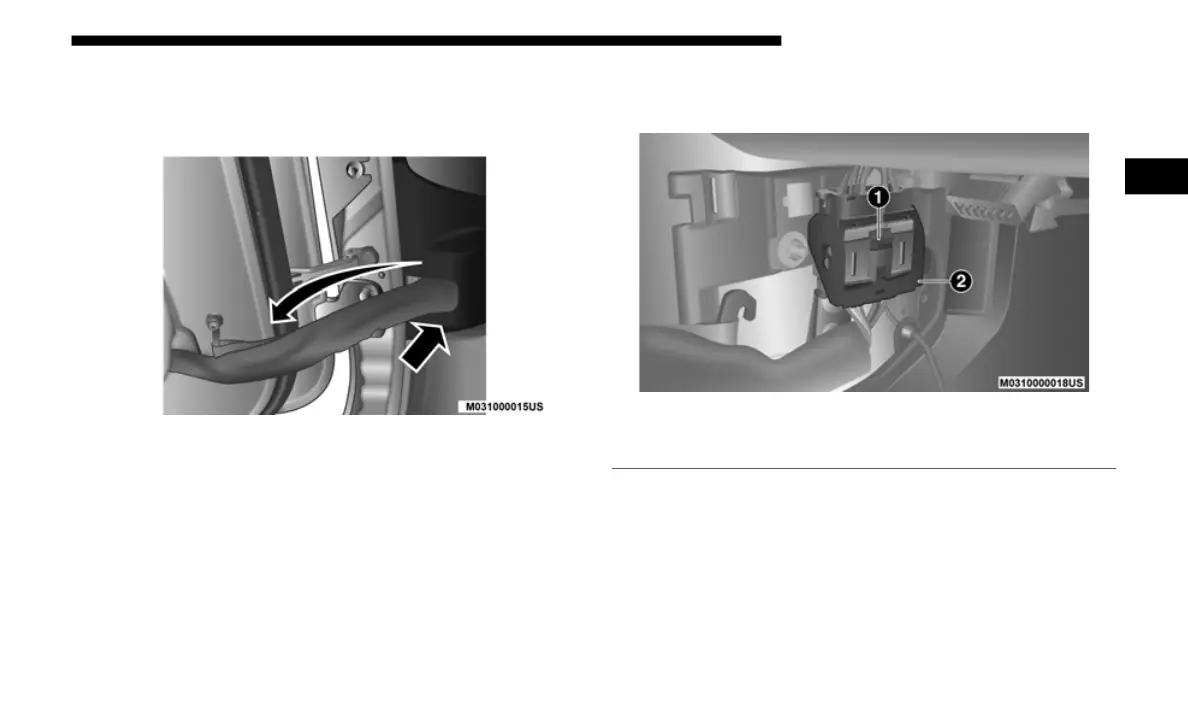

Wiring Access Door
NOTE:
Do not force open; this will break the plastic cover.
4. P
ull up on the red locking tab to unlock the wiring
harn
ess.
Closed Wiring Harness
1 — Locking Tab
2 — Wiring Harness Lever
2
