GETTING TO KNOW YOUR VEHICLE 47

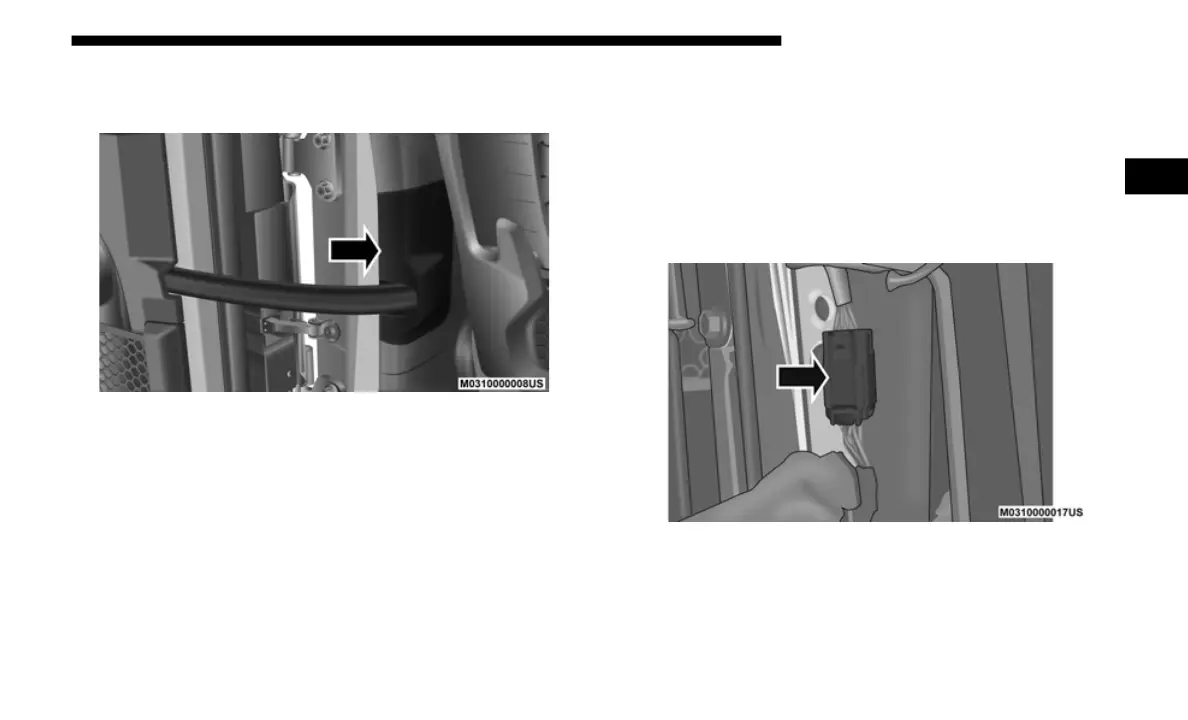

4. Pry open and remove the plastic wiring access door from
the bottom of the B-Pillar.
Wiring Access Door
5. Unplug the wiring connector.
NOTE:
Squeeze the tab on the base of the wiring harness. This will
u
nloc
k the connector tab, allowing the wiring connector to be
unplugged. Unhook the wire harness strap from the hook on
the bodyside door opening. Store the wire connector into the
lower basket of the door.
Wiring Connector
2
