SERVICING AND MAINTENANCE 497
Rear Carpet

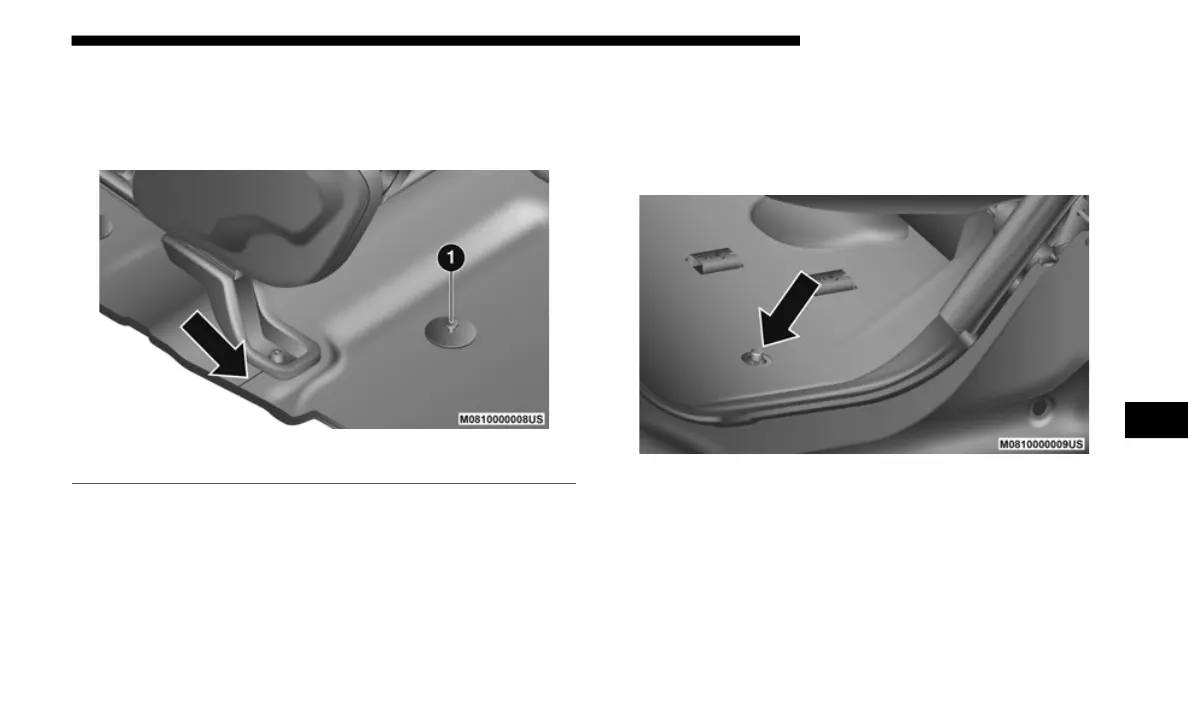

1. Remove the grommets under the front seat (one left and
one
right).
Carpet Split
2. Then pull the carpet out, to the rear and open the carpet
spli
t around the front seat brackets.
3. Remove the rear Under Seat storage bin (if equipped), by
remo
ving the four bolts that hold it to the floor.
4. Remove the fastener bin from the rear floor, it is held in
by cl
ips.
5. Remove the jack and tools by turning the wing bolt coun-
terc
lockwise, remove the wing bolt and then lift the
assem
bly out from under the seat.
6. Lift carpet off of the rear retainers (one left and one right).
Rear
Retainers
7. Remove carpet from the vehicle.
8. Wh
en reinstalling the carpet, perform these steps in
reve
rse order making sure that the carpet is tucked under
the scuffs, B pillar, console, and then refasten the grom
-
mets.
1 — Grommet
