JOHNSON CONTROLS
14
FORM 145.05-NOM7
ISSUE DATE: 10/31/2019
SECTION 2 – INSTALLATION

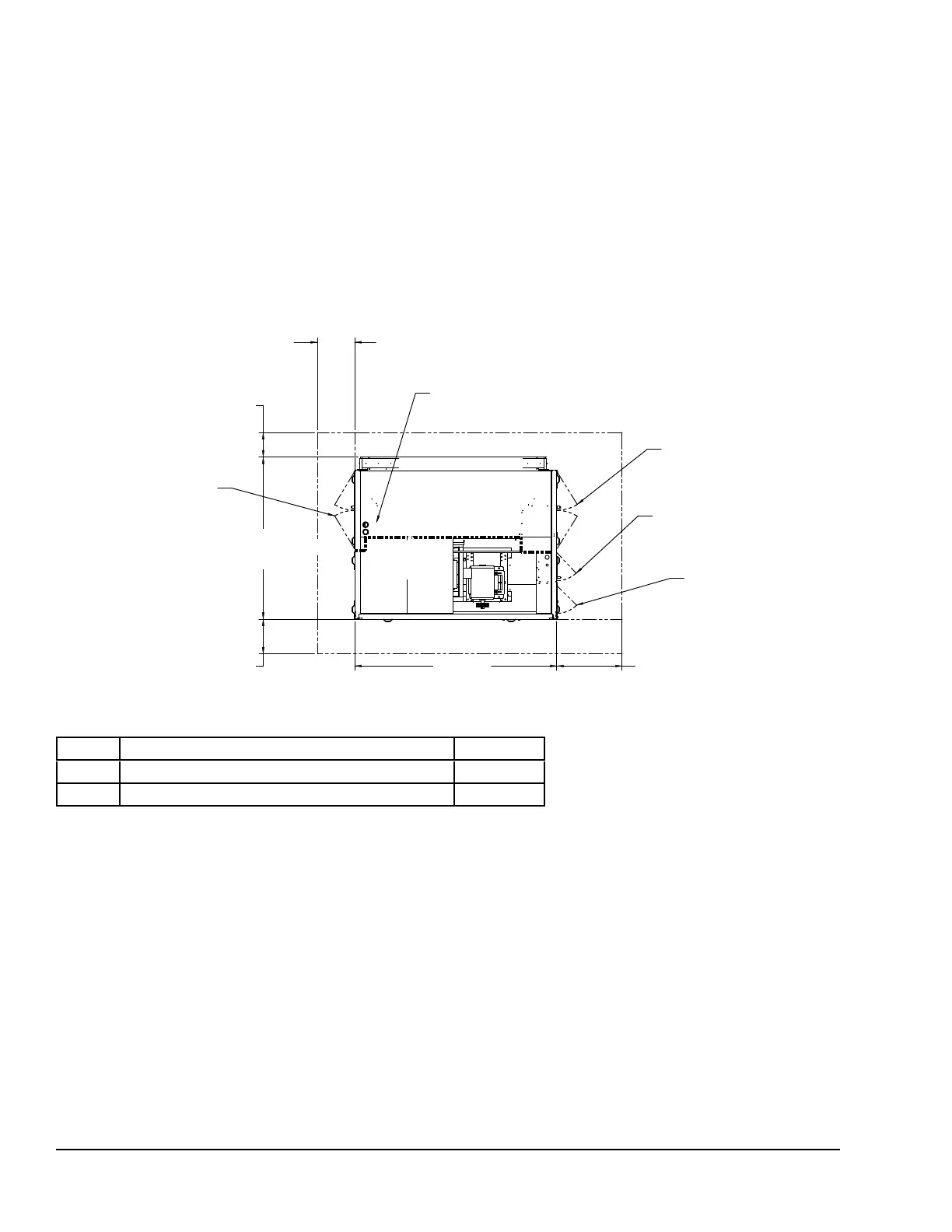

FIGURE 4 - RECOMMENDED SERVICE AND MAINTENANCE CLEARANCE, TOP DISCHARGE
(LSW_070–105)
NO. FILTER OPTIONS “A”
1 4 inch deep 102.06
2 4 inch prelter + 4 inch high efciency lter 106.31
130.00
inch
LD14018
24 inch clearance required on stan-
dard units, 3 inch clearance required
on units with low clearance option.
24 inch clearance required
on standard units, 3 inch
clearance required on units
with low clearance option.
Removable inner panel is provided for access to water
valves when no left side clearance is required.
Removable door with
hinges. One door handle
and tool operated latch.
Entry door standard
72 inch x 18 inch-
nominal with one door
handle and tool oper-
ated latch.
Electrical panel door. Non
removable with hinges.
One door handle and tool
operated latch.
Optional when clear-
ance is available.
Removable doors
with hinges. One door
handle and one tool-
operated latch.
42 inch
Clearance
18 inch
Clearance
FRONT
COIL SECTION
REAR
LEFT
RIGHT
FAN
SECTION
“A”
FILTER SECTION
NOTE:
1. All dimensions are in inches.
