JOHNSON CONTROLS
46
FORM 145.05-NOM7
ISSUE DATE: 10/31/2019
SECTION 2 – INSTALLATION

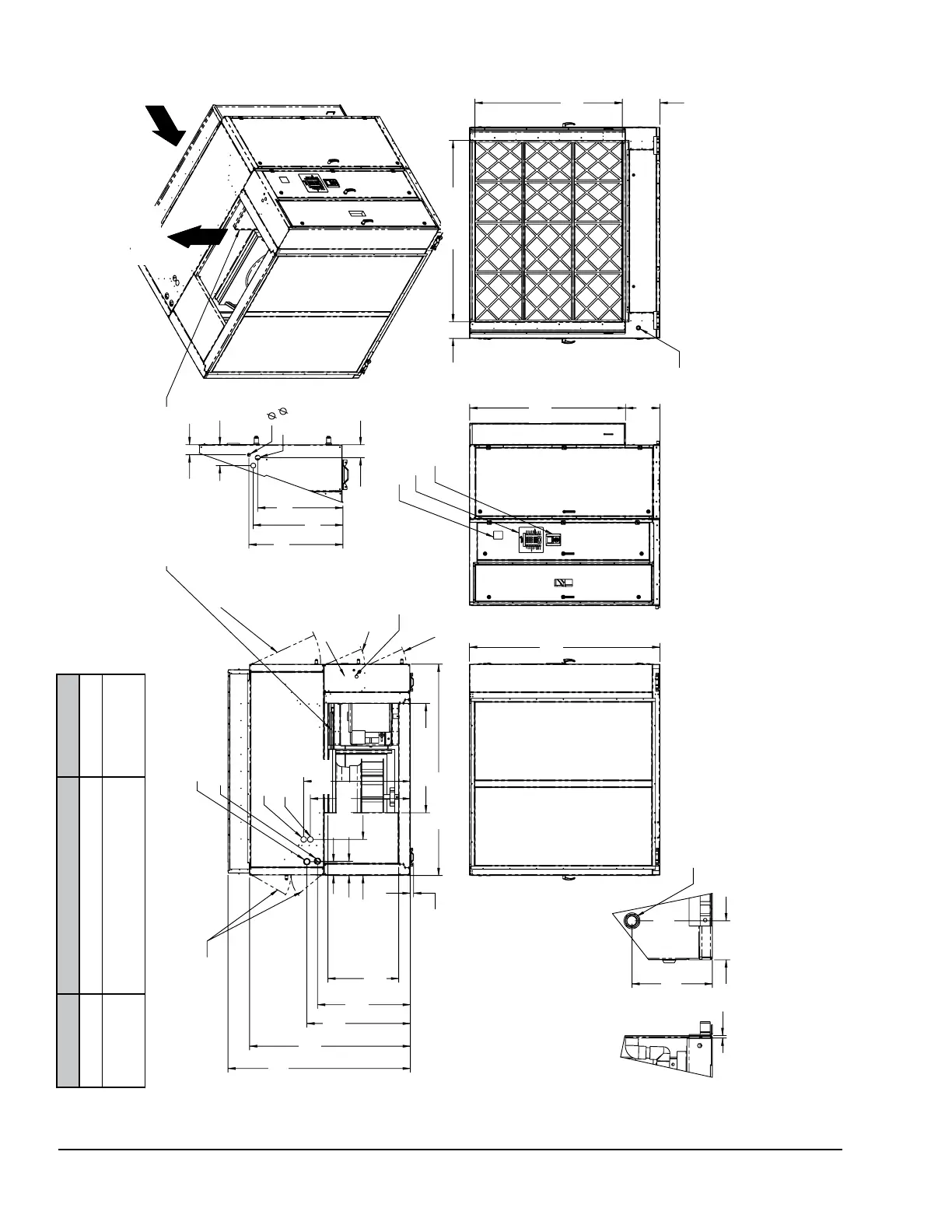

FIGURE 27 - UNIT DIMENSIONS, TOP DISCHARGE, ASSEMBLED (LSWU 050–060)
075-83756-901 REV B
NOTES:
1. Due to the dedication of continuous product improvement and enhancements, the information/dimensions provided are subject to change without notice.
2. All dimensions are in inches.
** 2.63 inch OD Copper Grooved connections
*** 1.63 inch Copper Male Sweat Connections
Optional Coil
s
“A”
48.94
76.00
43.91
33.49 *
6.80
16.15
6.58
51.67 *
99.94
46.30
1.63 Lifting Lug
Condenser Water Out **
Hot Water Out ***
Hot Water In ***
Condenser Water In **
Std. Dia. 1.00 Nom. PVC socket
(to connect metal pipe, plastic
weld one universal P/N 478-010
spigot female adapter)
Optical Unit VFD Display
75.62
90.00
14.26
TAIL “B”)
DUCT CONNECTION OPTION
(Showing Duct Inside Dimensions)
Drain piping connection (see Detail “B”)
71.25
16.19
85.72
7.86
3.69
SUPPLY
AIR
AIR IN
DETAIL “A”
26.69
25.44
24.19
.88
2.86
2X 1.38
Electrical
Penetrations
(see Detail “A”)
Disconnect Switch Toggle
Keypad & Display
5.92
0.34
4.45
Optional VFD
Electrical
Compartment
Door
Fan Access
Door
Compressor
& Coil Access
Door
Coil Section Access Panel
50.44
10.14
NO. FILTER OPTIONS "A"
1 4 inch lter 82.00
2
4 inch prelter + 4 inch high
efciency lter
86.25
