JOHNSON CONTROLS
39
SECTION 2 – INSTALLATION
FORM 145.05-NOM7
ISSUE DATE: 10/31/2019
SEGMENTED UNIT ASSEMBLY
For ease of handling and transport in a freight elevator
the Water Cooled Self Contained product can be split
and shipped in three segments. The unit is assembled
and tested at the factory prior to shipment. The sections
are separated for shipment. The three segments are as
follows:
• Compressor / Condenser / Coil section
• Control and supply air fan section
• Filter or lter and hydronic heat section (optional)
REMOVE SHIPPING RESTRAINTS
Mechanical restraints are used to secure the spring
mounted supply fan during shipment (see Figure 24).
Restraining bolts must be removed after
unit has been set in its nal location.
Do not remove seismic guide pins if unit
came with this option. Refer to factory
order form or option tag.
The shipping restraints are accessible from underneath
the blower compartment. The blower and motor as-
semblies mount on two rails that run from the left to
right side of the unit. The two rails are tied down to the
blower compartment support rails by 3 bolts in the vi-
cinity of each of the isolator springs, positioned at the
four corners of the assembly. To release the shipping
restraints remove the three bolts from each location.
Remove shipping
restraint bolts
Remove shipping
restraint bolts
Remove shipping
restraint bolts
Remove shipping
restraint bolts
BLOWER RESTRAINTS FROM BELOW
BLOWER RESTRAINTS FROM ABOVE

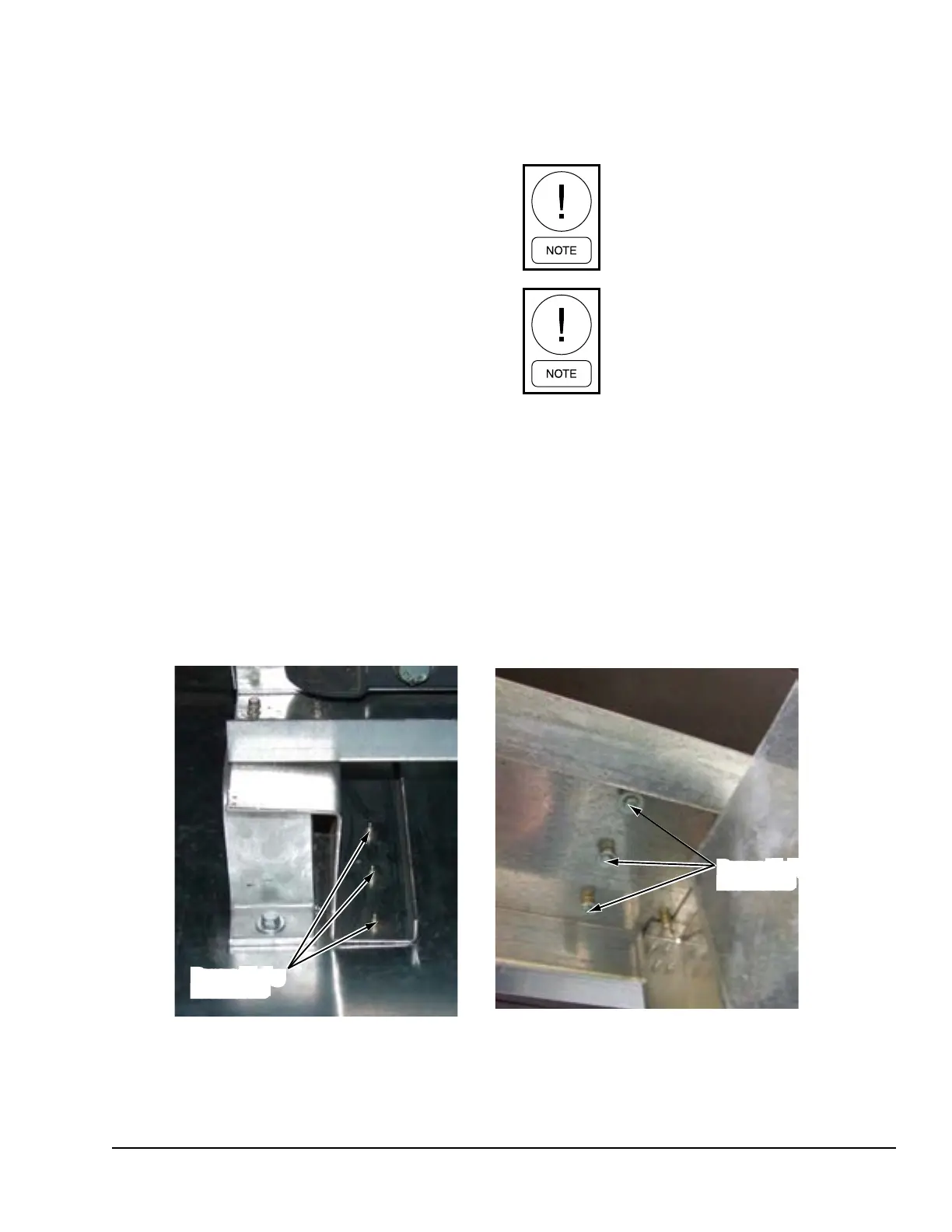

FIGURE 25 - SHIPPING RESTRAINT LOCATIONS
LD14022
