JOHNSON CONTROLS
19
SECTION 2 – INSTALLATION
FORM 145.05-NOM7
ISSUE DATE: 10/31/2019

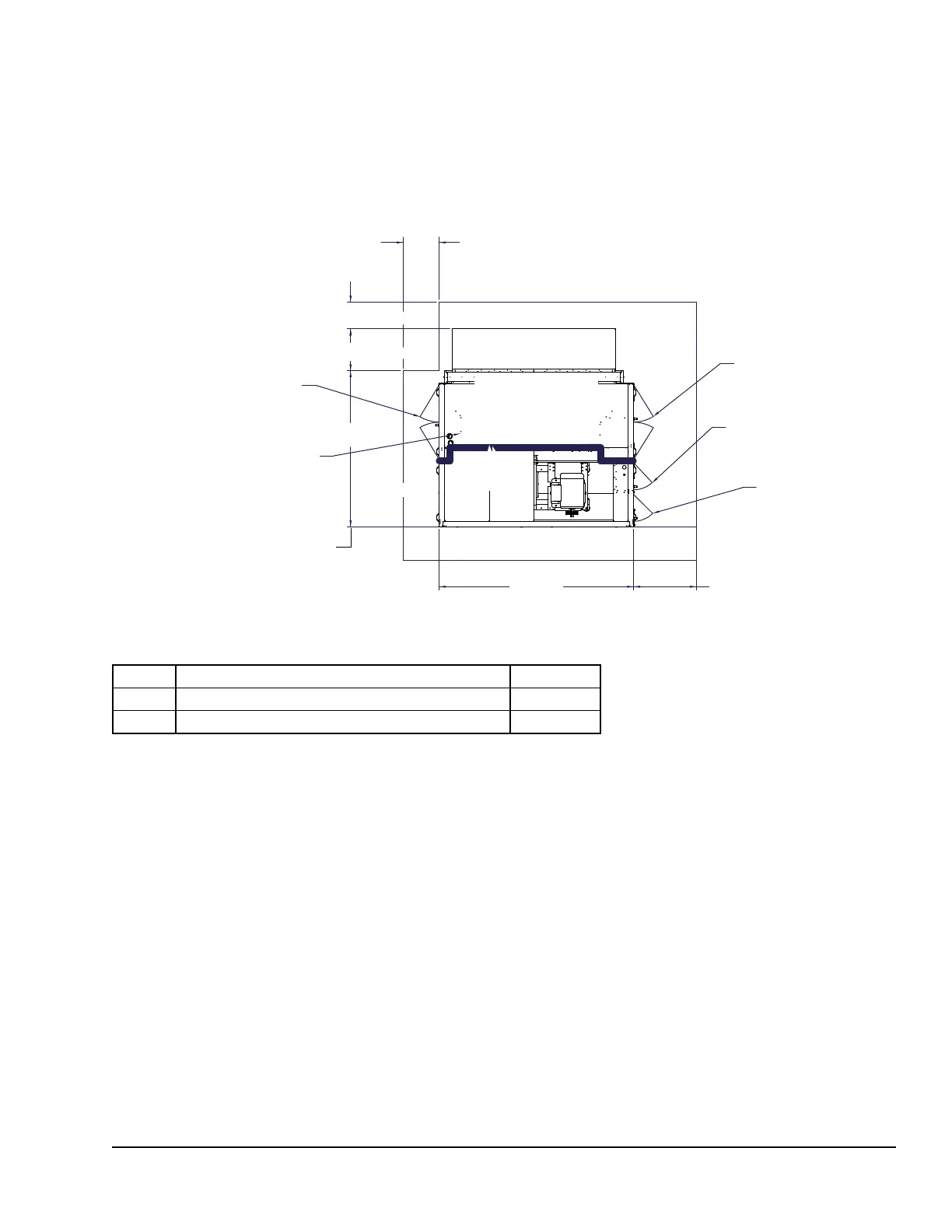

FIGURE 9 - RECOMMENDED SERVICE AND MAINTENANCE CLEARANCE WITH SOUND ATTENUATING
PLENUM (LSW_070–105)
NO. FILTER OPTIONS “A”
1 4 inch lter 102.06
2 4 inch pre-lter + 4 inch high efciency lter 106.31
24 inch clearance required on stan-
dard units, 3 inch clearance required
on units with low clearance option..
24 inch clearance required
on standard units, 3 inch
clearance required on units
with low clearance option.
Removable inner panel is pro-
vided for access to water valves
when no left side clearance is
required.
Removable door with
hinges. One door handle
and tool operated latch.
Entry door standard
72 inch x 18 inch
nominal with one
door handle and tool
operated latch.
Electrical panel door. Non
removable with hinges.
One door handle and tool
operated latch.
Optional when clearance is
available. Removable doors
with hinges. One door handle
and one tool-operated latch.
42 inch
Clearance
18 inch Clearance
27.94 inch
FRONT
COIL SECTION
SOUND ATTENUATING
PLENUM
REAR
FRONT
RIGHT
FAN
SECTION
FILTER SECTION
“A”
LEFT
075-83744-907 REV -
130.00
inch
NOTE:
1. All dimensions are in inches.
