JOHNSON CONTROLS

SECTION 2 – INSTALLATION

FORM 145.05-NOM7

ISSUE DATE: 10/31/2019

LD14021

Optional factory cut open-

ings, available on 4 sides.

Optional

factory cut

openings,

available on

2 long sides

only.

Field Cut

Opening

Standard

LEFT

REAR

93.45

59.95

31.23

OPTIONAL FULL PLENUM

OPTIONAL HALF PLENUM

(Positioned over Fan & Coil sections)

OPTIONAL HALF PLENUM

(Positioned only over Fan section)

9.15

1.02

9.15

1.02

9.15

1.02

FRONT

RIGHT

LEFT

REAR

31.23

RIGHT

FRONT

FACTORY CUT DUCT OPENINGS

Height Options (Inches) Length Options (Inches)

12 36

14 42

16 48

18 54

20 60

22 66

24 inch 72 inch

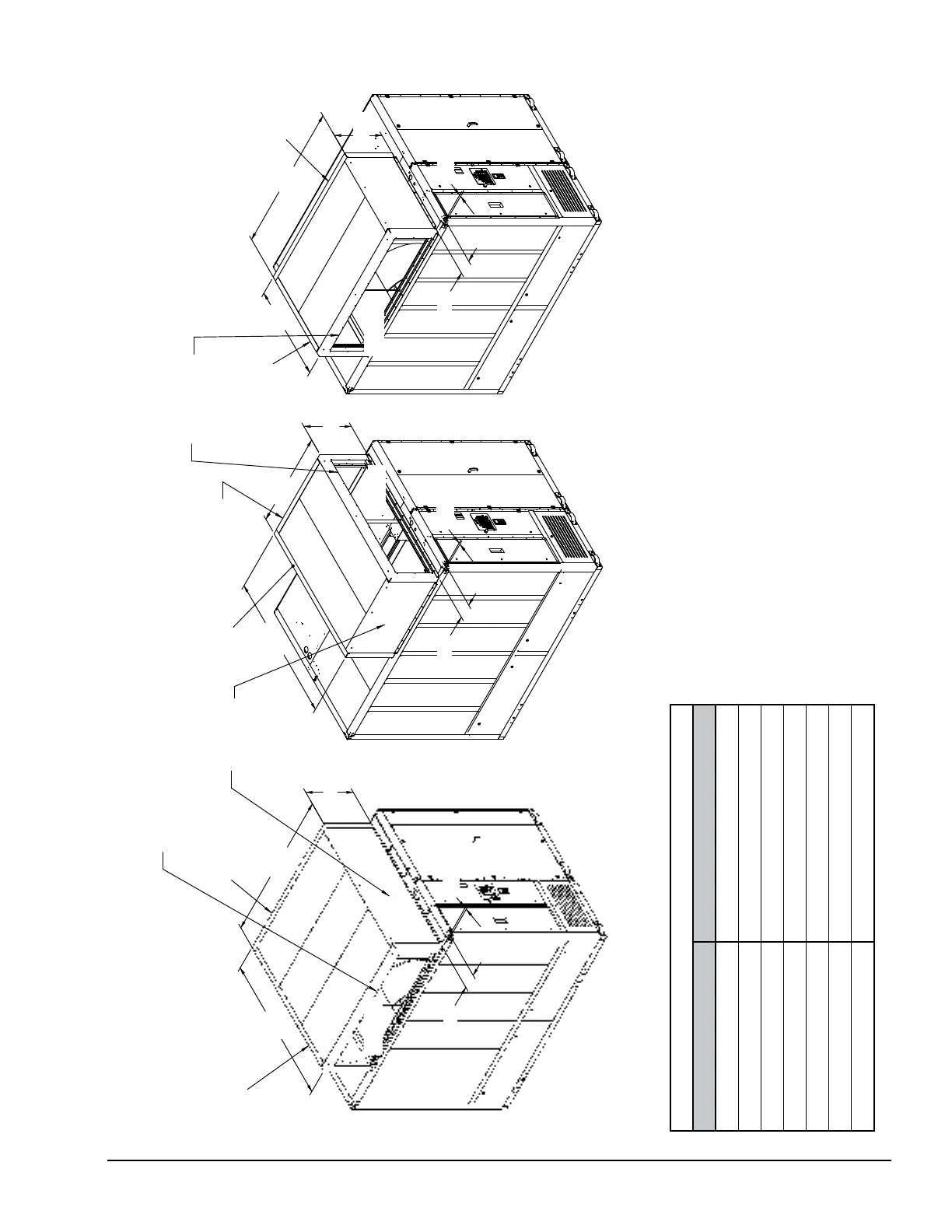

FIGURE 48 - UNIT DIMENSIONS, DISCHARGE PLENUM (LSWU 070–105)

NOTE:

1. .Due to the dedication of continuous product improvement and enhancements, the

information/dimensions provided are subject to change without notice.
