JOHNSON CONTROLS
26
FORM 145.05-NOM7
ISSUE DATE: 10/31/2019
SECTION 2 – INSTALLATION
Detailed Lifting Instructions

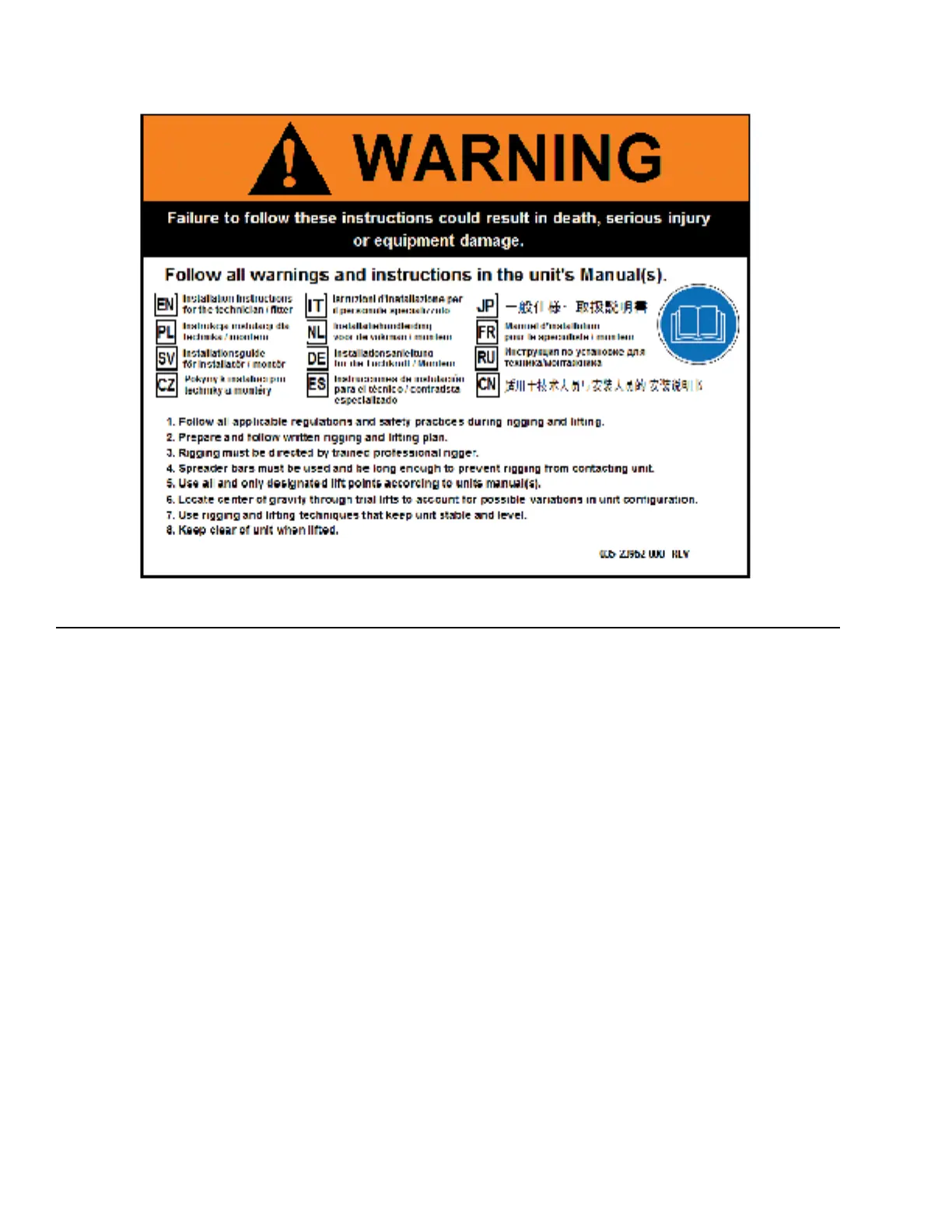

FIGURE 15 - WARNING LABEL
For units that are shipped split, lift one half of the unit
at a time. Do not pre-assemble the unit and lift as one
piece. If the unit must be lifted assembled and arrives
split, consult the factory.
• Ensure that all rigging and lifting equipment is
operated by qualied personnel.
• Ensure that the rigging equipment and materials
have the required capacity for the job and that all
items are in good condition, are currently quali-
ed (for example, inspection is up-to-date), and
are properly used.
• Distribute load between lifting lugs equally.
• Ensure that lifting straps, cables, or chains used
clear the sides and corner edges of the unit. If not,
damage may occur.
• Before lifting unit, remove bolts used to secure
unit to the shipping timbers. Do not lift unit with
shipping timbers in place.
• Use 1/2-inch or better grade 80 chain and acces-
sories. If substituting for chain, use equivalently
rated components.
