SECTION 2 – INSTALLATION
FORM 145.05-NOM7
ISSUE DATE: 10/31/2019
Vibration Isolators
LSW 25–40 ton units are shipped with twelve 2 x 6 x 1
inch thick vibration isolation pads as shown in Figure
11.
12.
Proper placement of isolation devices
under the curb of the LSWU is critical to
the operation and noise reduction of the
unit. Isolation pads supplied with unit
are adequate for most installations when
placed and used per unit size diagram.

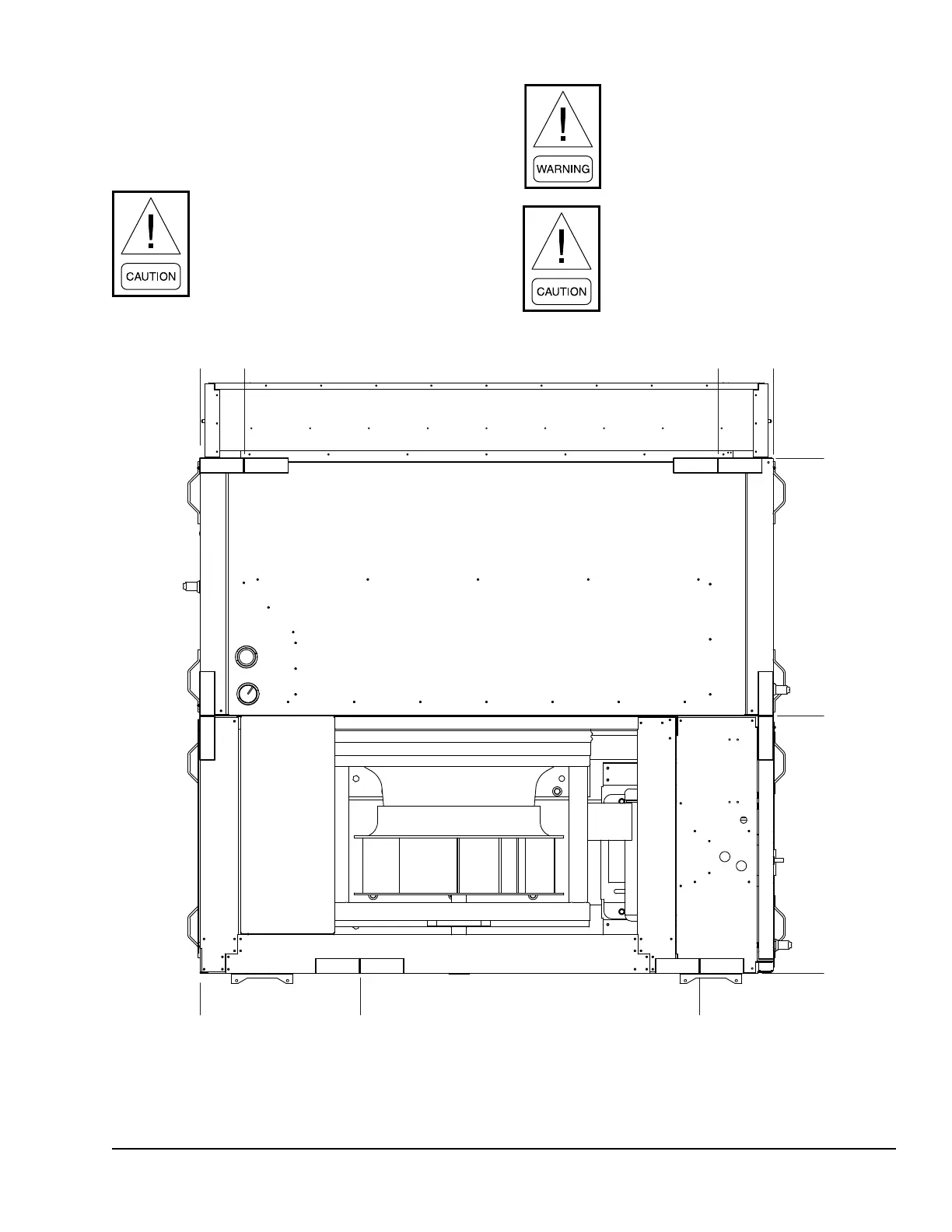

FIGURE 12 - VIBRATION ISOLATION PAD LOCATIONS (LSW_025–040)
0
6.00
70.50
0
21.75 68.00
0
35.00
78.00
70.13
FILTER SECTION
COIL SECTION
FAN SECTION
RIGHT
LEFT
REAR
FRONT
075-83768-910 REV-
NOTES:
1. All dimensions are in inches.
Do not attempt to install dollies in the cen-
ter of the unit. Units can become unstable
and tip over, causing injury.
Do not use hooks to lift unit or hook into
open channels to lift unit. This could
cause unit damage.
