JOHNSON CONTROLS
24
FORM 145.05-NOM7
ISSUE DATE: 10/31/2019
SECTION 2 – INSTALLATION

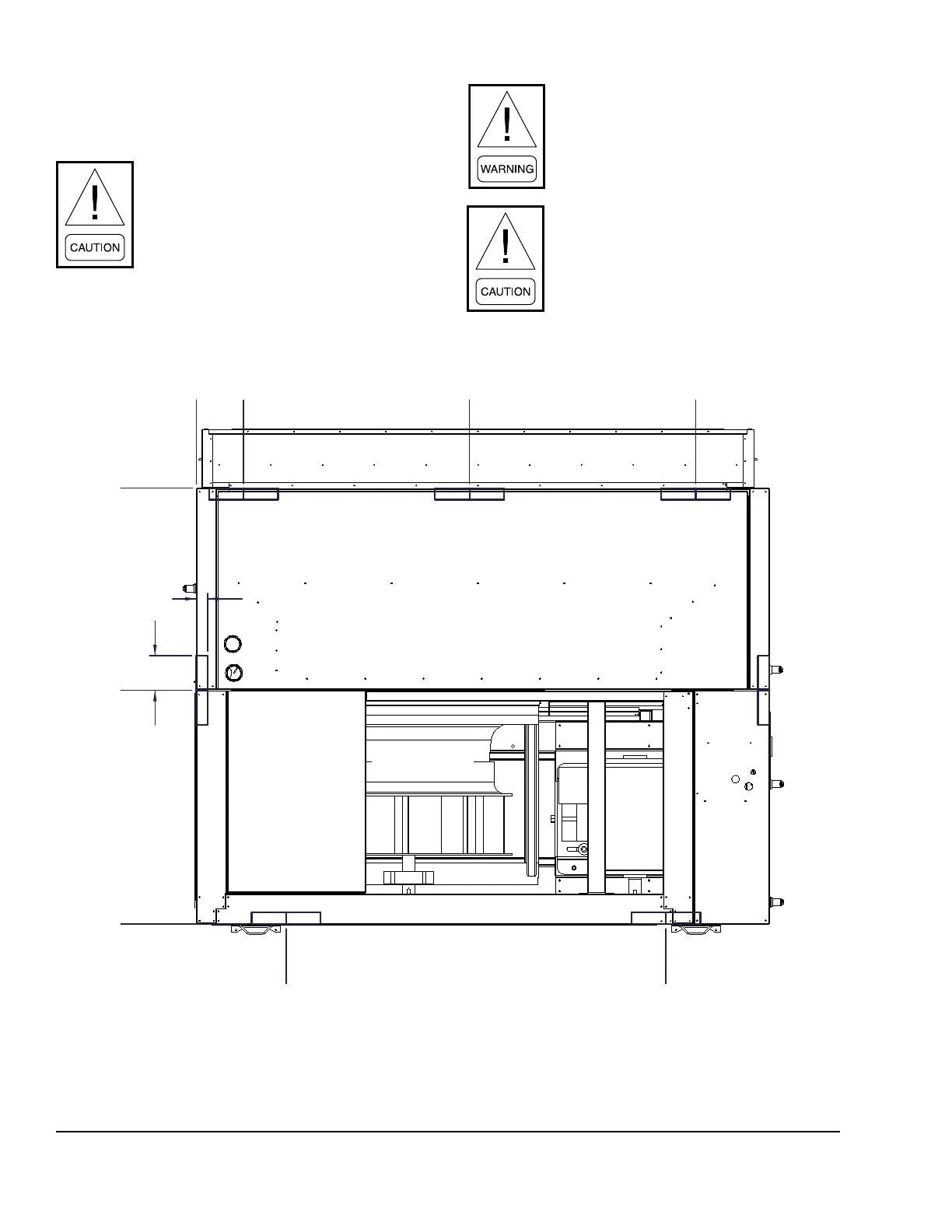

FIGURE 13 - VIBRATION ISOLATION PAD LOCATIONS (LSW_050–060)
14X 6.00
14X 2.00
0 8.22 47.51 86.80
15.64
81.62
0
35.12
75.75
COIL SECTION
FILTER SECTION
REAR
FRONT
LEFT
RIGHT
FAN SECTION
075-83756-910 REV -
NOTE:
1. All dimensions are in inches.
LSW 50–60 ton units are shipped with fourteen 2 x
6 x 1 inch thick vibration isolation pads as shown in
Figure 12.
Proper placement of isolation devices
under the curb of the LSWU is critical to
the operation and noise reduction of the
unit. Isolation pads supplied with unit
are adequate for most installations when
placed and used per unit size diagram.
Do not attempt to install dollies in the cen-
ter of the unit. Units can become unstable
and tip over, causing injury.
Do not use hooks to lift unit or hook into
open channels to lift unit. This could
cause unit damage.
