Johnson Controls LSWU035 - FIGURE 6 - Recommended Service and Maintenance Clearance with Sound Attenuating Plenum

JOHNSON CONTROLS
16
FORM 145.05-NOM7
ISSUE DATE: 10/31/2019
SECTION 2 – INSTALLATION

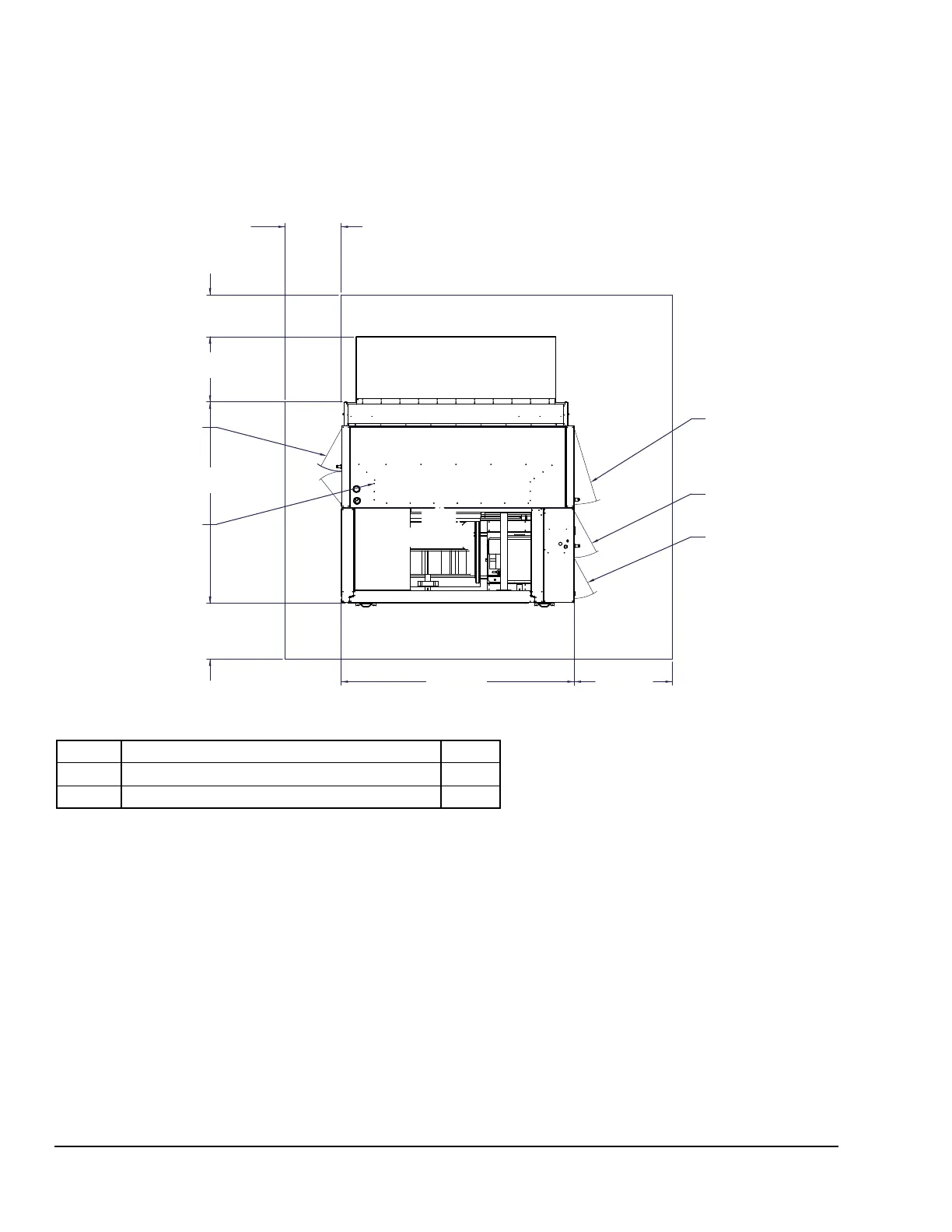

FIGURE 6 - RECOMMENDED SERVICE AND MAINTENANCE CLEARANCE WITH SOUND ATTENUATING
PLENUM (LSW_050–060)
24 inch clearance required
on standard units, 3 inch
clearance required on units
with low clearance option.
24 inch clearance required
on standard units, 3 inch
clearance required on units
with low clearance option.
Removable door
with hinges. One
door handle and
tool operated latch.
Entry door standard
18 inch wide x 84
inch high nomi-
nal with one door
handle and tool
operated latch.
Electrical panel
door. Non remov-
able with hinges.
One door handle
and tool operated
latch.
Optional when clear-
ance is available.
Removable doors
with hinges. One door
handle and one tool-
operated latch.
Removable internal
panel is provided for
access to water valves
when no leftside clear-
ance is required.
99.94
inch
42 inch
Clearance
18 inch
Clearance
27.94 inch
FRONT
COIL SECTION
FILTER SECTION
REAR
SOUND ATTENUATING
PLENUM
LEFT
RIGHT
FAN
SECTION
“A”
075-83756-909 REV-
NO. FILTER OPTIONS “A”
1 4 inch lter 82.00
2 4 inch prelter + 4 inch high efciency lter 86.25
NOTE:
1. All dimensions are in inches.
