FORM 145.05-NOM7
ISSUE DATE: 10/31/2019
SECTION 2 – INSTALLATION
NOTE: 1. Due to the dedication of continuous product improvement and enhancements, the information/dimensions provided are subject to change without notice.
AIR IN
SUPPLY
AIR
90.00
24.00*
74.22*
2.37*
4.55*
10.64 12.82
LIFTING LUG
14.26 75.62
6.13 CW-I
3.70 HW-I
3.49 CW-O
6.68 HW-O
DISCONNECT
TOGGLE SWITCH
KEYPAD & DISPLAY
OPTIONAL UNIT VFD DISPLAY
FILTER SECTION WILL SHIP SERARATELY
(SEE DETAIL 'B')
DRAIN PIPING CONN
16.19 71.25
7.85
85.72
10.45
13.01
DUCT CONNECTION OPTION
(SHOWING DUCT INSIDE DIMENSIONS)
LIFTING LUG
"A"
76.00
43.91
48.94
6.58
6.80
16.15
2X
50.44
46.30
99.98
1.63
LIFTING LUG
OPTIONAL COIL
SECTION DOORS
CONDENSER WATER IN**
CONDENSER WATER OUT**
HOT WATER OUT***
HOT WATER IN***
COMPRESSOR & COIL ACCESS DOOR
ELECTRICAL PENETRATIONS (SEE DETAIL 'A')
ELECTRICAL COMPARTMENT DOOR
FAN ACCESS DOOR
OPTIONAL VFD
4.45
10.12
DRAIN CONNECTION/DETAIL 'B'
STD DIA 1.00 NOM PVC SOCKET (TO CONNECT METAL PIPE, PLASTIC WELD ONE UNIVERSAL PN 478-010 SPIGOT FEMALE ADAPTER)
.34
3.69
24.19
25.44
26.69
2X
1.38
.88
2.86
5.92
DETAIL 'A'
* DISCHARGE OPENING LESS JAMBS ** 2.63" OD COPPER GROOVED CONNECTIONS
*** 1.63" OD COPPER MALE SWEAT CONNECTIONS;
HOT WATER HEATING CAPABILITY IS OPTIONAL
FILTER SECTION
WILL SHIP SERARATELY

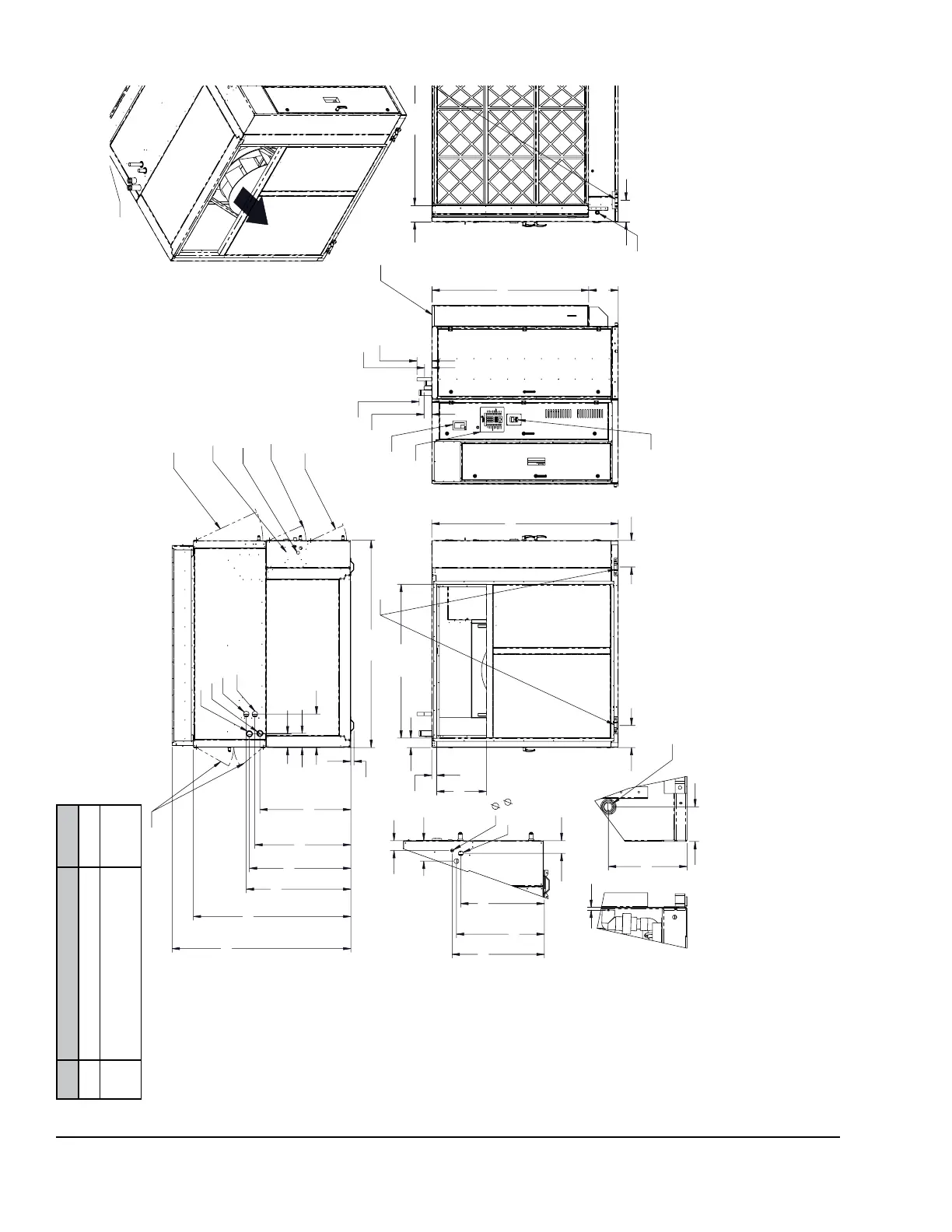

FIGURE 29 - UNIT DIMENSIONS, FRONT DISCHARGE, ASSEMBLED (LSWF 050–060)
075-83756-911 REV C
NO. FILTER OPTIONS "A"
1 4 inch lter 82.00
2
4 inch prelter + 4 inch high
efciency lter
86.25
