JOHNSON CONTROLS

SECTION 2 – INSTALLATION

FORM 145.05-NOM7

ISSUE DATE: 10/31/2019

075-83768-905 REV-

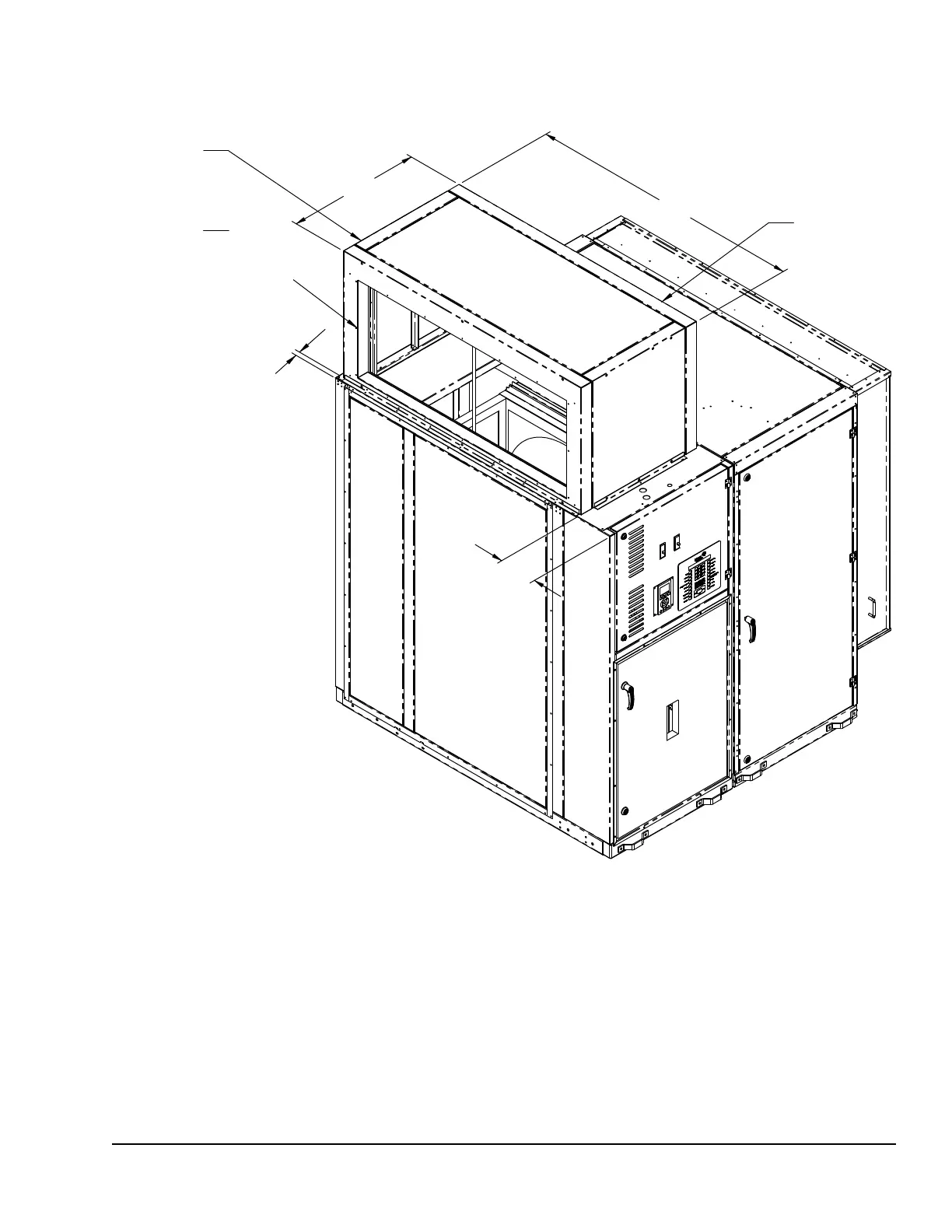

OPTIONAL HALF PLENUM

(Positioned over Fan Section only)

LEFT

FRONT

RIGHT

REAR

1.04

32.75

67.38

9.25

Field cut opening is stan-

dard. Optional factory cut

openings are available on

front and rear sides only.

NOTES:

1. Due to the dedication of continuous product improvement and enhancements, the information/dimensions provided are subject to change

without notice.

2. All dimensions are in inches.

FIGURE 44 - HALF OUTLET PLENUM OPTION (LSWU 025–040)
