Johnson Controls P2000 User Manual

DVR Integration Option Configuration
24-10515-13 Rev. – 2-7
This document contains confidential and proprietary information of Johnson Controls, Inc.
© 2010 Johnson Controls, Inc.

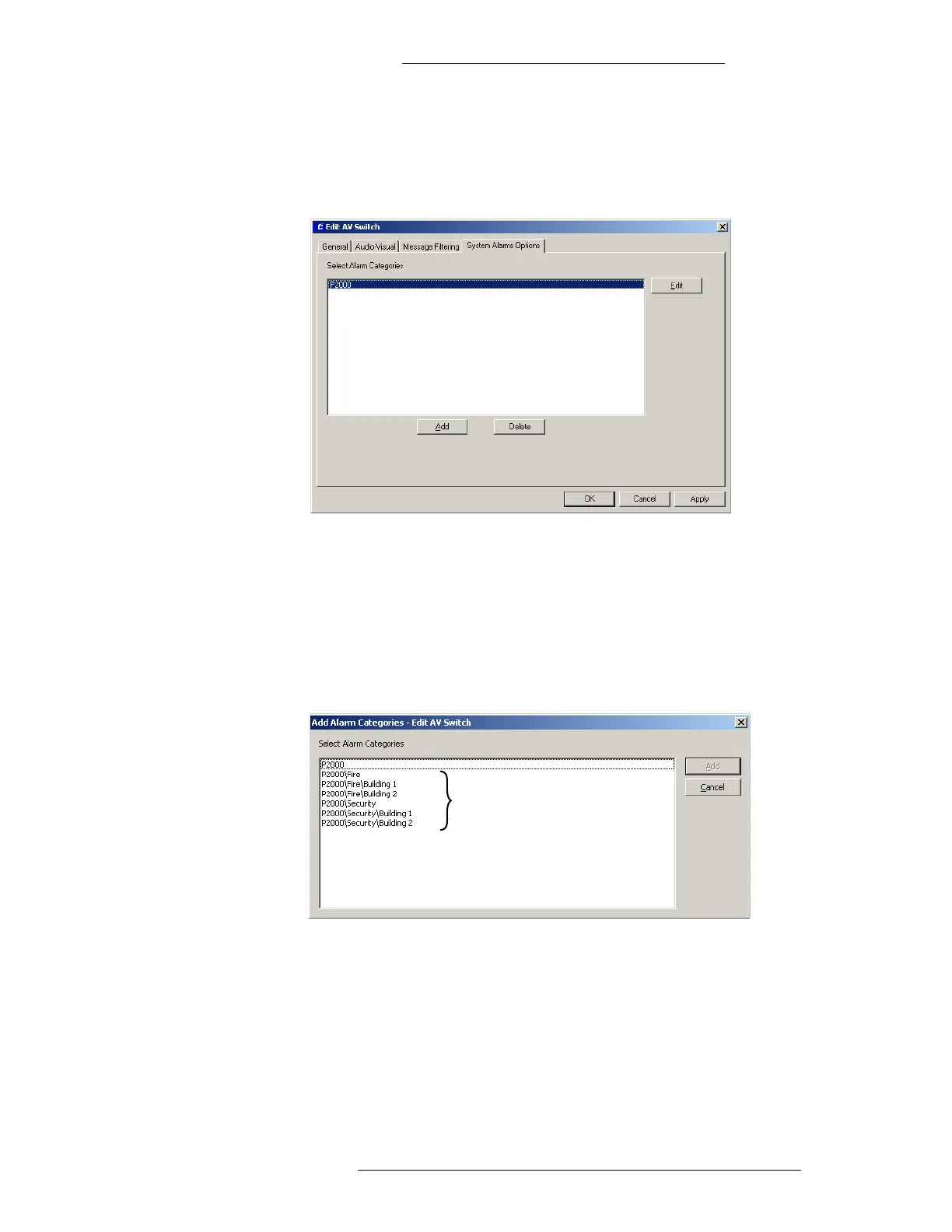

4. Click the System Alarm Options tab. It displays all alarm categories
assigned to this AV switch.
All alarms originating at the AV switch (A
V alarms) must belong to at least
one Alarm Category. The default category for a new AV switch is “P2000.”
5. Click the Add button to assign system alarms to one or more Alarm
Categories. (Click Delete if you want to delete a highlighted category from
the list of Alarm Categories assigned to this alarm.)
6. The Add Alarm Categories window opens. It lists the default “P2000”
category and all user
-defined categories. (If you are using Enterprise
configuration, the Alarm Categories defined for all P2000 sites within an
Enterprise system will be listed.) Select one or more categories and click
Add.
7. To edit alarm options for an Alarm Category, highlight the alarm option the
Edit AV Switch window and click Edit. You can select and edit more than
one category at a time.
8. The Alarm Options window opens with the General ta
b active.
Edit the options under the following tabs:
 General
 Events
Example of user
defined categories
