Johnson Controls P2000 User Manual

DVR Integration Option Configuration
24-10515-13 Rev. – 2-17
This document contains confidential and proprietary information of Johnson Controls, Inc.
© 2010 Johnson Controls, Inc.

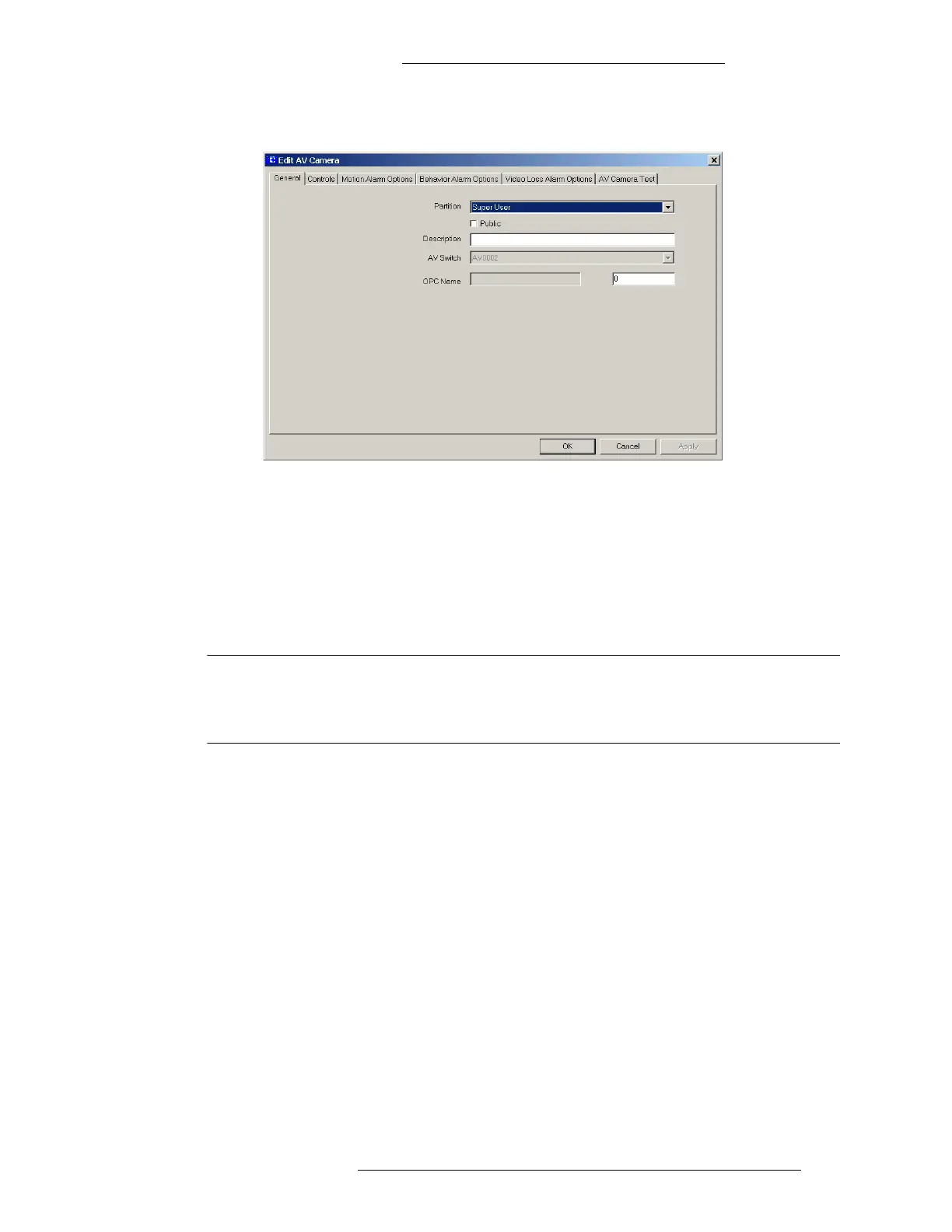

General Tab
Partition – If partitioning is available, select the partition that will have access to this
Camera’s information.
Public – If
partitioning is available, select this check box to allow all partitions to see
this Camera.
Description –
This is the user-defined name of the Camera. The name will be
displayed in the AV Player window.
NOTE
For some protocols, the user-defined name must match the name of the
camera as defined in the DVR. See Chapter 4: Protocol Integration for
details.
AV Switch – This is the name of the AV Switch that the Camera is physically
connected to. The AV Switch name is automatically entered into this field.
OPC Name –
In the text box to the right, enter the number of the Camera. The
number is automatically appended to the prefix letter and added to the OPC Name
field. For further information about namespace names and item numbers, see
“Naming Items for the AV Server Namespace” on page 1-9.
