Johnson Controls P2000 User Manual

Configuration DVR Integration Option
2-28 24-10515-13 Rev. –
This document contains confidential and proprietary information of Johnson Controls, Inc.
© 2010 Johnson Controls, Inc.
Alarm Timezone – If you want the item to generate alarms only at certain time of the
day, select from the drop-down list the time zone during which the item activation
will be reported as an alarm in the Alarm Monitor window. If you select <none>,
item activation at any time will always result in generating an alarm.
Alarm Instruction – Alarm Instruction selected in the drop-down list will be
displayed in the Alarm Response window when the sending item is in the alarm
state.
Normal Instruction – Alarm Instruction selected in the drop-down list will be
displayed in the Alarm Response window when the sending item is in the normal
state.
Other Instruction – Alarm Instruction selected in the drop-down list will be displayed
in the Alarm Response window when the sending item is in the state other than
“alarm” or “normal.”
Associated AV Channel – Select the camera to be associated with this alarm. If
applicable, this selection will override the selection made in the Input to camera
mapping window.
Associated Real Time Map – Select the Real Time Map to be associated with this
alarm. If applicable, this selection will override the default behavior of the Real Time
Map containing the item for the alarm. That is, when you click the Map button in the
Alarm Monitor, the associated Real Time Map will be displayed, even if it is
different from the Real Time Map containing the alarm item.

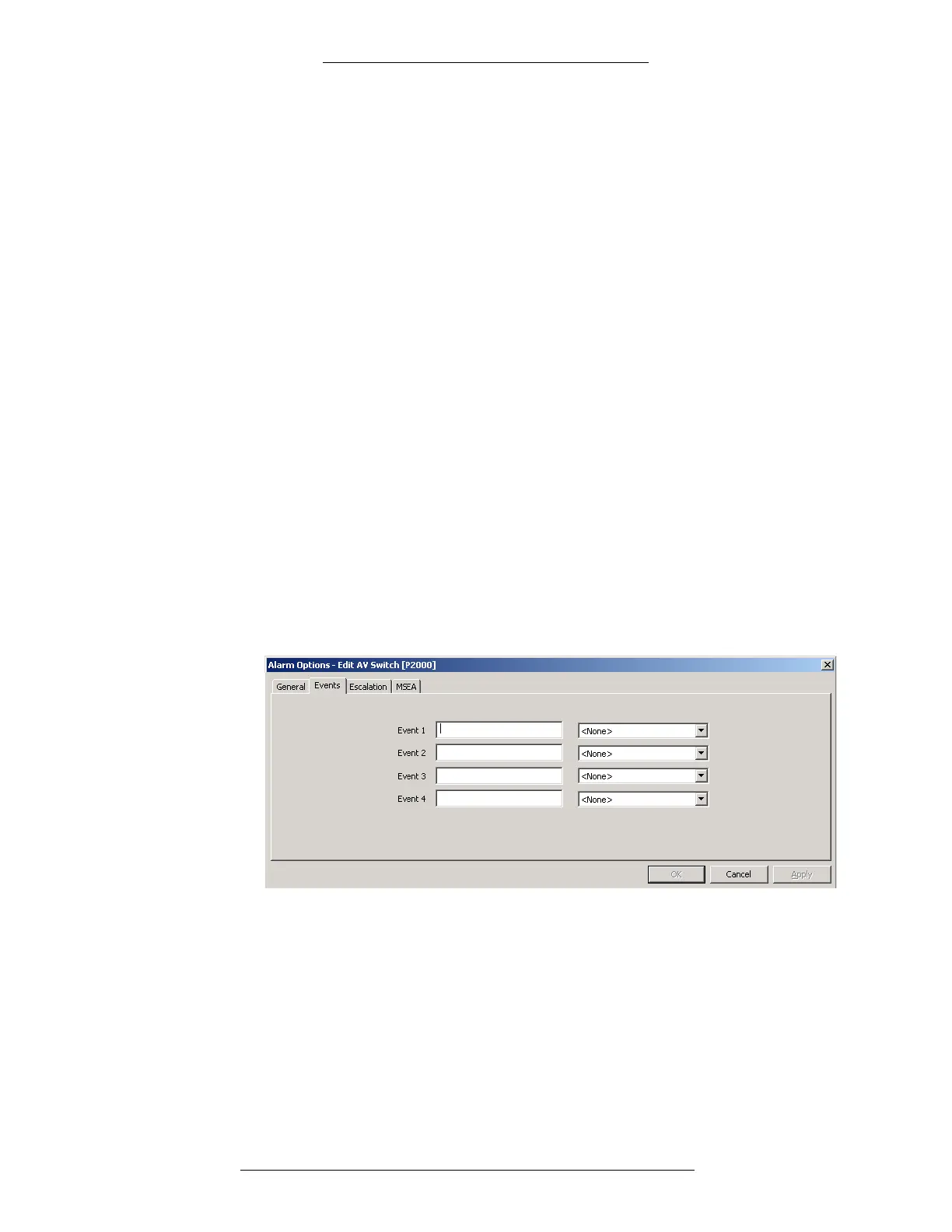

Events Tab
Event 1-4 – You can define up to four events that can be triggered from the Alarm
Monitor window whenever the alarm occurs and is entered into the alarm queue. To
define an event, enter a descriptive name and select a previously configured Event
from the associated drop-down list.
