JS-MD 3 RES Maintenance Manual
Supplement
MD11-AMM-00-002
Issue: 00
Rev. 00
Rev. Date: 23-May-22
Page 12-2

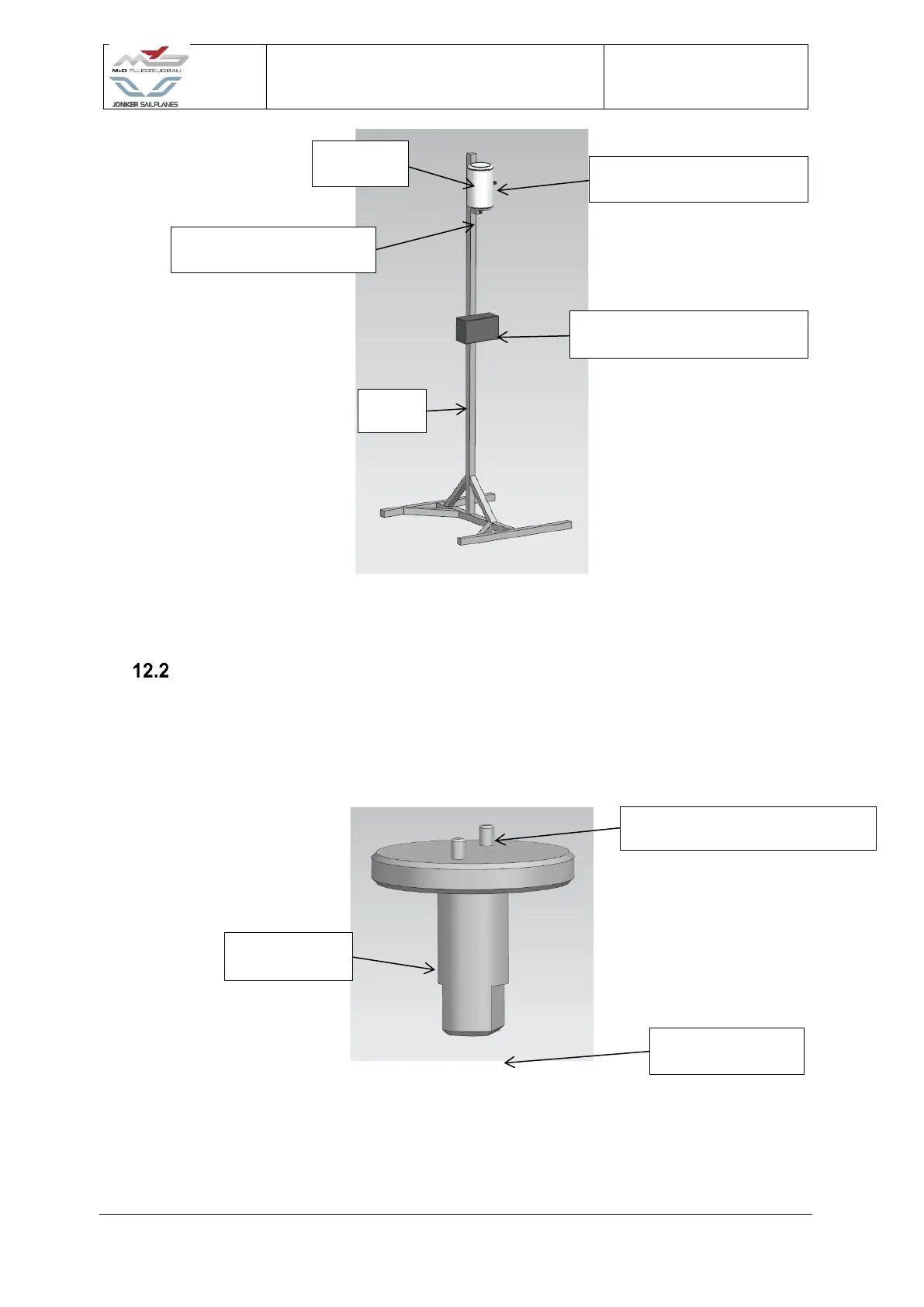

Figure 2 Bleeding reservoir (illustration only)
Expansion cylinder bleeding tool
The expansion cylinder bleeding tool (T 234 32 080 00) is a bifunctional tool, required to
open and close the expansion cylinder lid and is used to hold the expansion cylinder piston
into position during the bleeding of the system, as described in 4.11.2.4.
Figure 3 Expansion cylinder bleeding tool
Size 10 Spanner
Plunger arm
Lid fastening/unfastening pins
Reservoir
Pressure side connection
Suction side connection
12V power source (battery)
Stand
