JS-MD 3 RES Maintenance Manual

Supplement

MD11-AMM-00-002

Issue: 00

Rev. 00

Rev. Date: 23-May-22

Page 4-62

4.11.2.3.2 Radiator system installation

No.

Description

No.

Description

Radiator support plate

Fan

Radiator

Radiator mounting bolts

Fan guard

Washers

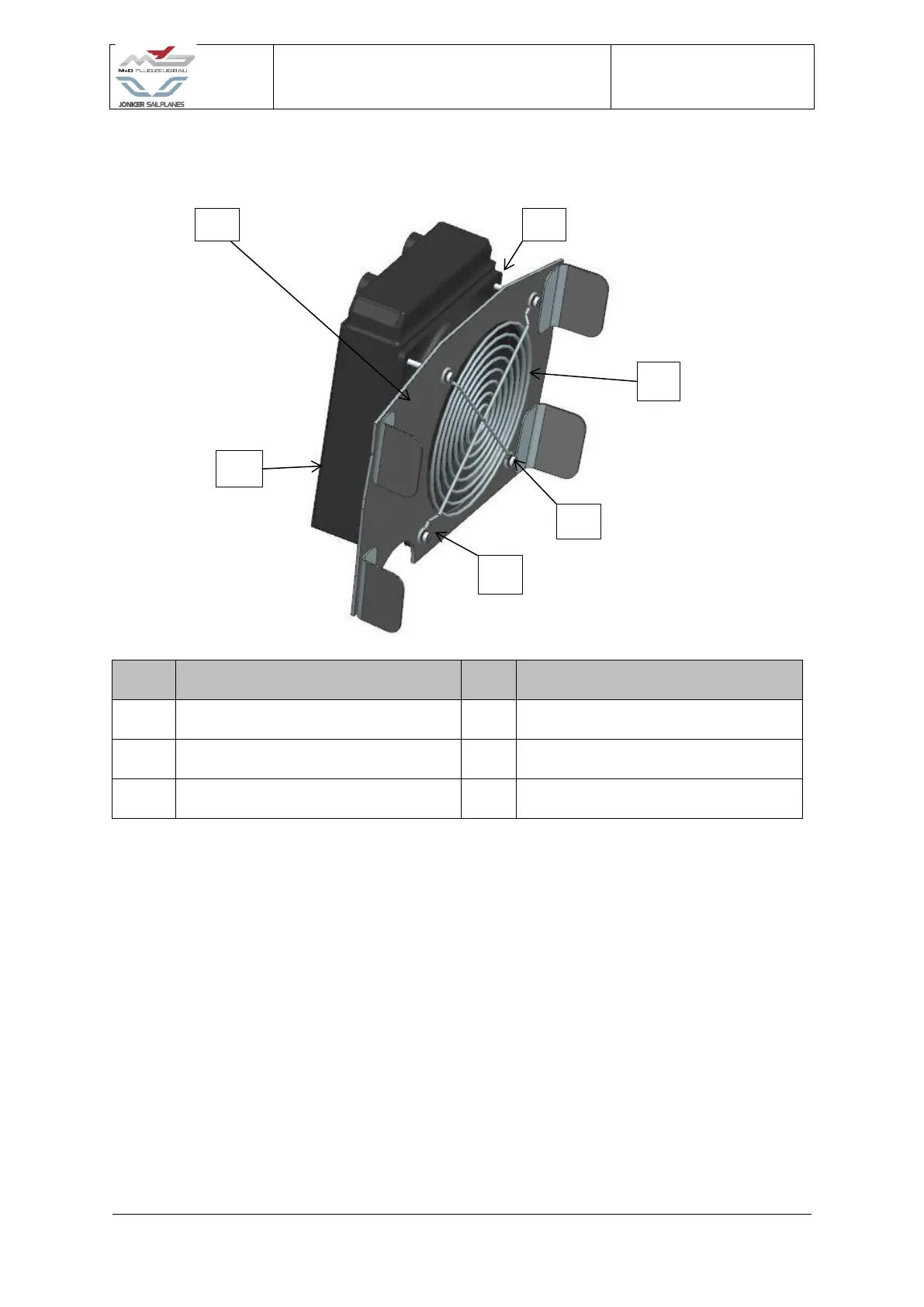

Figure 4-33 Radiator system installation

1. Install Fan guard (32), Washers (33) and Radiator mounting bolts (25) to Radiator

support plate (20).

2. Install Fan (21) and faster mounting bolt to Radiator (22).

Caution: Do not damage the threaded holes in radiator as radiator is manufactured from

aluminium.
