JS-MD 3 RES Maintenance Manual

Supplement

MD11-AMM-00-002

Issue: 00

Rev. 00

Rev. Date: 23-May-22

Page 4-67

4.11.2.4.2 Coolant Mixture

Ambient Temperature

during operation / storage

Propylene Glycol

(Coolant)

Distilled Water

>0°C

Not required

Between 0°C and -12°C

Between -12°C and -18°C

2.2

Between -15°C and -21°C

1.3

4.11.2.4.3 Inserting Coolant to the water system

1. Unclip the expansion cylinder assembly from its bracket and disconnect from the elbow

fitting.

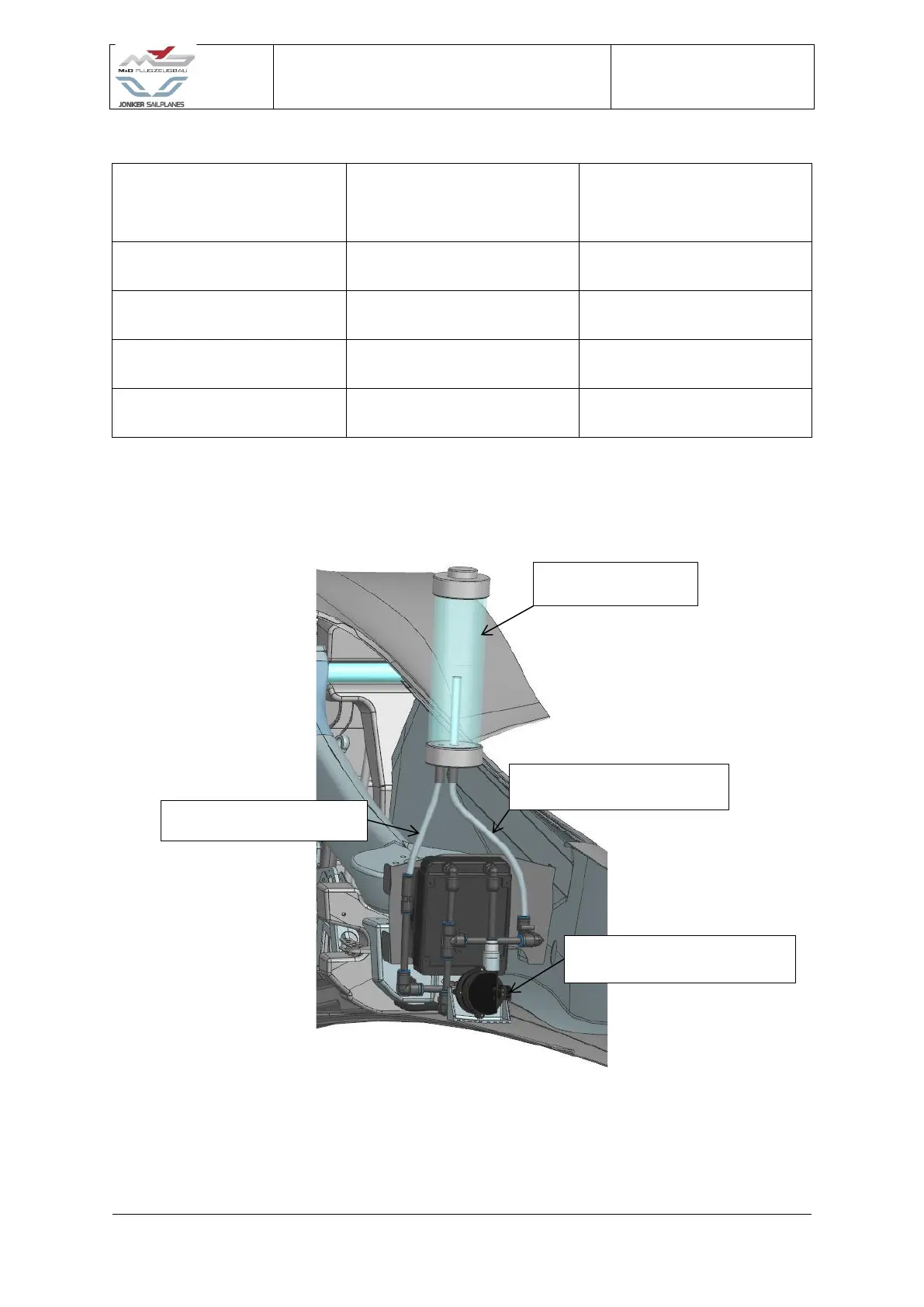

2. Connect the bleeding reservoir as illustrated above.

Bleeding reservoir

Pressure side connection

Suction side connection

Connect 12V power source
