11. Lightly tap the pipes.
12. Turn off the pump.
13. Level out the fuselage.
The system is completely bled when the pump is turned on and no cavitation noises are
present. The coolant entering the bleeding reservoir from the pump should be clear and not
contain air bubbles of any size.
Repeat steps 1 to 13 until the system is bled.

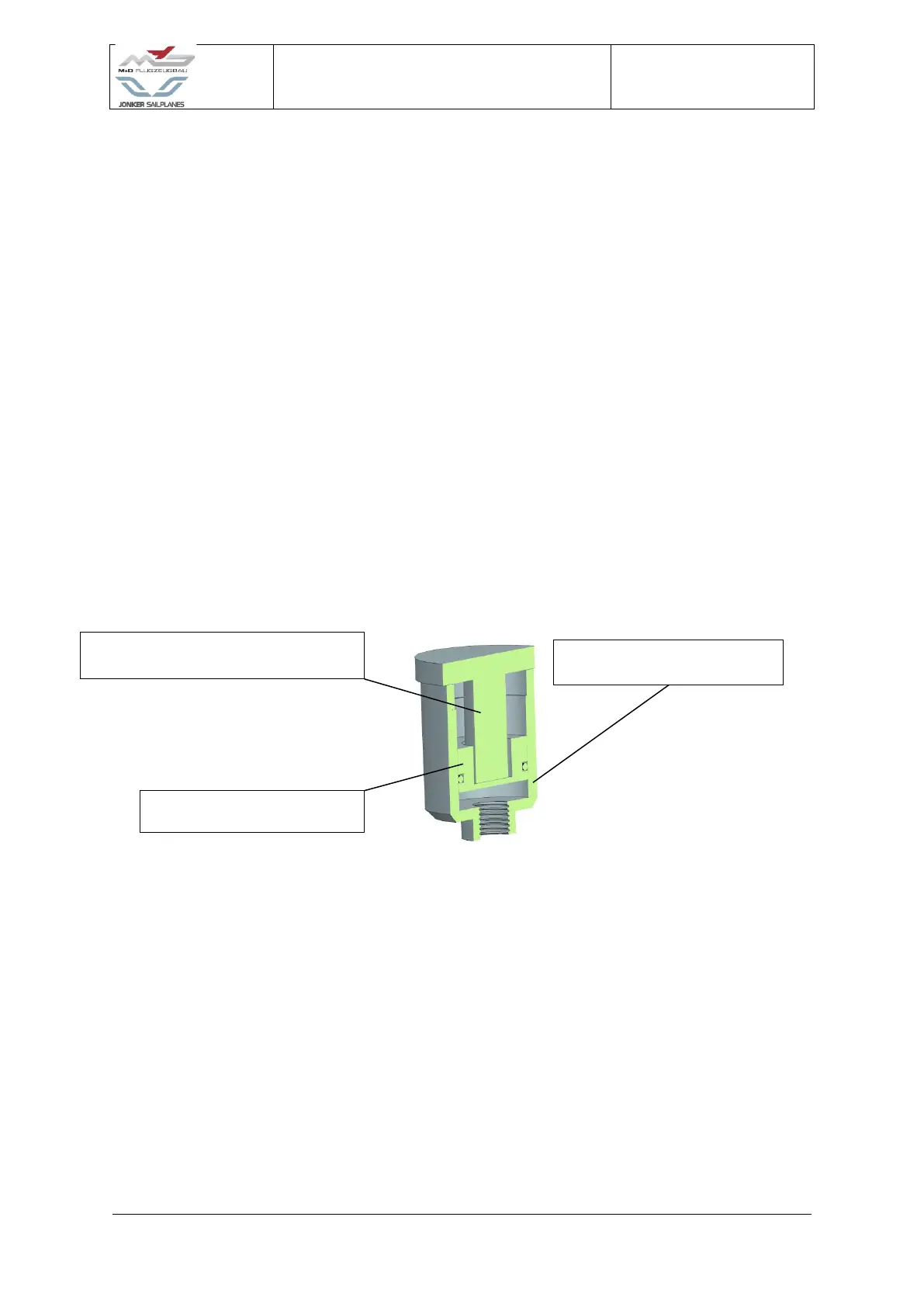

14. Remove the bleeding pipe on the pressure side and install the Expansion cylinder
sleeve.
15. Completely, fill the sleeve, take care to avoid spilling.
16. Insert the O-ring over the expansion cylinder piston and install to the expansion
cylinder sleeve.
17. Use Expansion cylinder bleeding tool (T 234 32 080 00) to press down on the piston.
The water will pour out of the suction side, allow this to happen.
18. While pressing down on the Expansion cylinder bleeding tool (T 234 32 080 00),
remove the bleeding pipe, on the suction side, from the no-spill fitting.
19. Remove the Expansion cylinder bleeding tool (T 234 32 080 00) and install the spring
and lid.
20. Fasten the lid into position with Expansion cylinder bleeding tool (T 234 32 080 00).
4.11.2.4.5 Liquid Cooled system inspection
It is important to ensure the system has a sufficient level of coolant i.e. the pump
should run without cavitation noises. This inspection should be done every 100 hours
of operation to ensure the product operates as intended.
