Section 2 Screen Layout, Control Panel and Rear Panel
22
Restore display to user customized set-up.
Push to display the menu.
Push and turn: Adjusts GAIN LEVEL.
Turn: Moves VRM up or down.
Push: Skips a WAYPOINT each time this key is
pushed, in the NAVIGATION mode and
FOLLOW ROUTE is activated.
Refer to “Skip the Waypoint” p.58 in Section 4.
Sets range scale values with the joy-stick.
Up/Down/Right/Left: Selects and changes an item when each
menu is displayed.
Up/Down: Moves VRM up or down.
Push: Fixes the set value when each menu is
displayed.
Enters a marker when no menu is dis-
played.
Registers EVENT in the
NAVIGATION mode.
Refer to “Store an Event” p.57 in Section 4.
Sets the depth of the starting point on the fishfinding display
with the joy-stick.
Control Panel

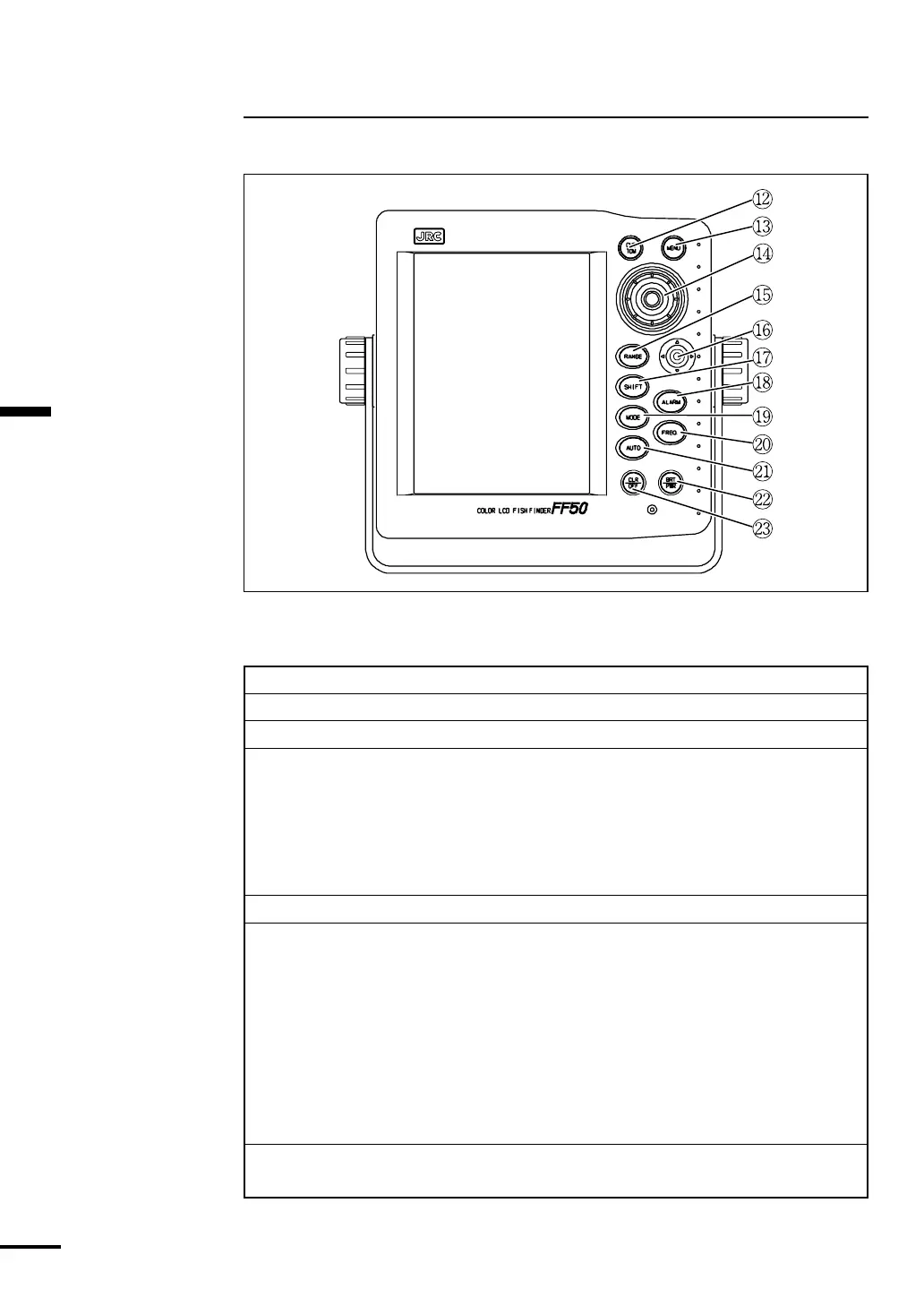

Figure 2-2 shows the panel keys and their functions.
Figure 2-2
Control Panel
No. Keys Functions
!2 CUSTOM
!3 MENU
!4 JOG-DIAL
!5 RANGE
!6 JOY-STICK
!7 SHIFT
To Next Page
