Section 4 OPERATION
Section 2 Screen Layout, Control Panel and Rear Panel
23
Sets each Alarm to ON/OFF and its conditions to
activate it.
Set display modes with the joy-stick.
Switches frequencies in the Single-Frequency mode.
Executes or cancels each AUTO mode.
Executes GOTO (direct route setting) in the
NAVIGATION mode.
Refer to “GOTO Selected Waypoint” p.57 in Section 4.
Turns the power OFF when used with PWR key.
Exits MENU mode or returns to the Fish Finder picture mode.
Turns the power ON.
Sets the brightness or contrast of the LCD with the joy-stick.

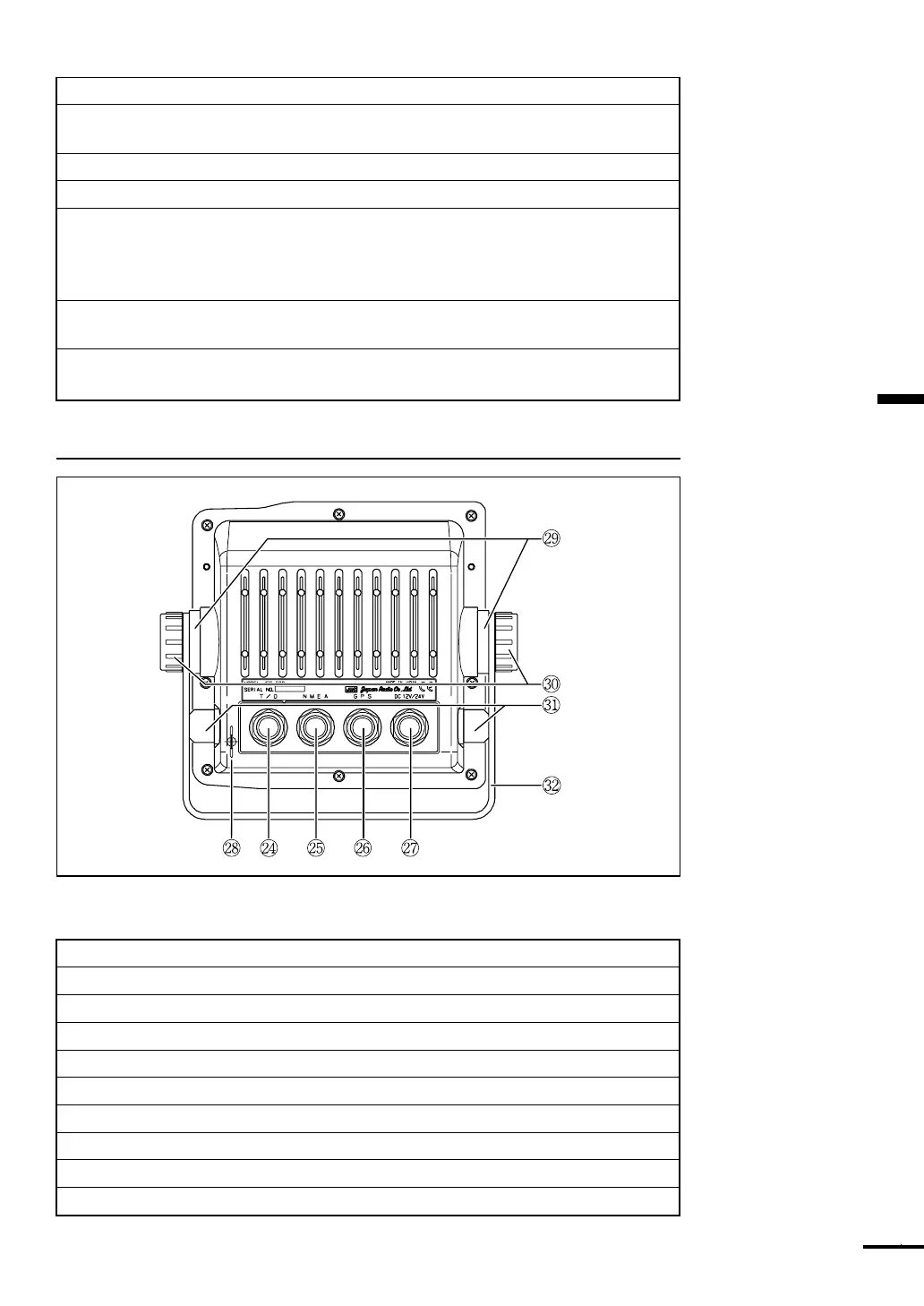

Rear Panel
No. ITEMS Function
@4 T/D connector
@5 NMEA connector
@6 GPS connector
@7 DC 12/24 V connector
@8 GROUND terminal
@9 Spacers
#0 Yoke knobs
#1 Damping rubbers
#2 Yoke
Rear Panel
No. Keys Functions
!8 ALARM
!9 MODE
@0 FREQ
@1 AUTO
@2 CLR/OFF
@3 BRT/PWR
Connects the transducer
Connects NMEA0183 format data
Connects GPS/DGPS SENSOR
Connects power supply
Connects GROUND
Figure 2-3
