Section 4 Operation

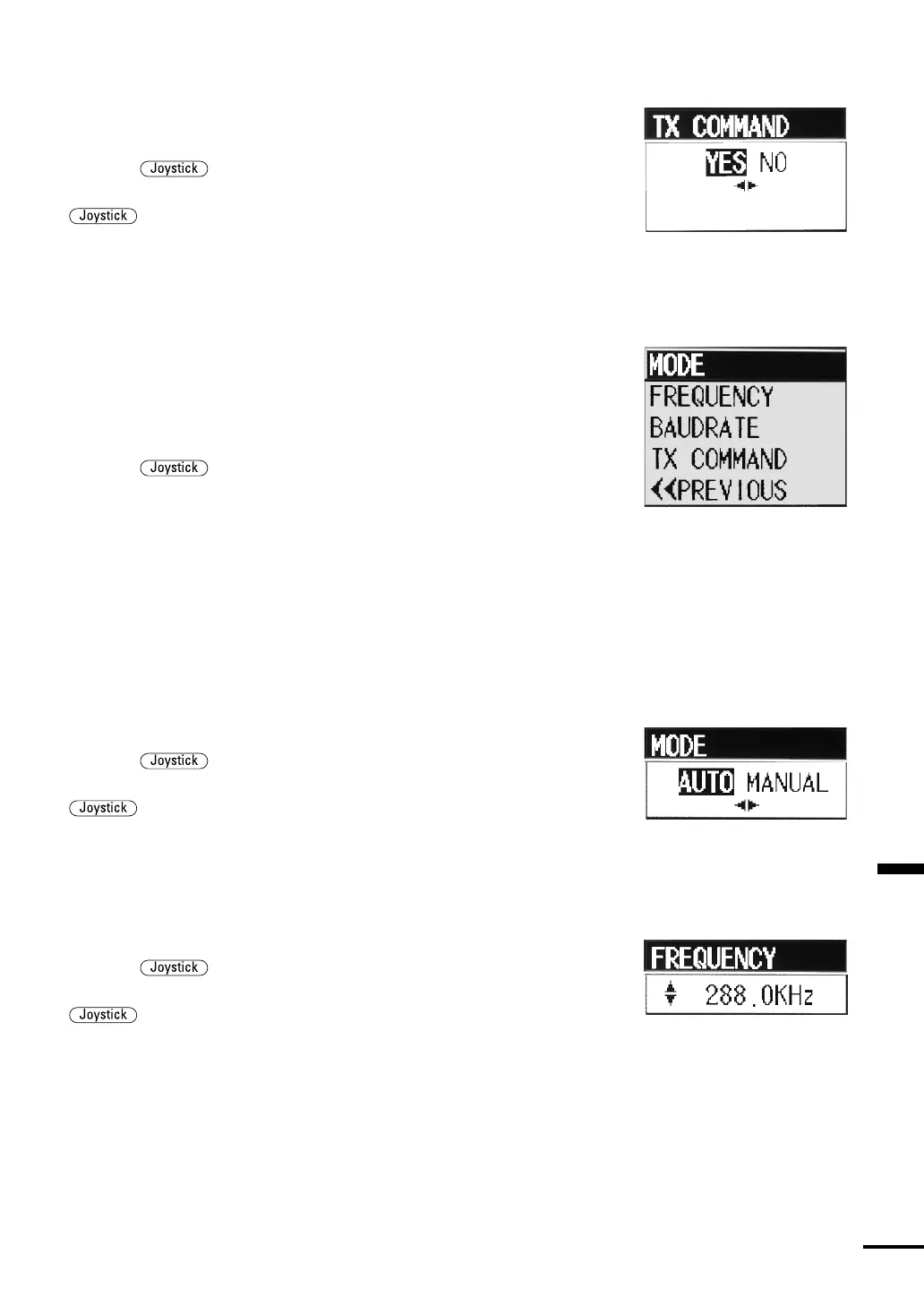

(10) Transmit Command to GPS/DGPS Sensor

•Using this item, you can send the set values in GPS/DGPS Basic

Settings (1) - (9) to the GPS/DGPS sensor.

•Press the up or down to select TX COMMAND and push it

in to open the TRANSMIT COMMAND pull-down menu. Press the

to the left or right to select YES and push it in to send the

set values to the GPS/DGPS sensor. Select NO to not send the set

values.

2. DGPS Beacon Settings

•Using this item, you can perform the basic settings of the beacon

module of the DGPS sensor. After performing settings for each item,

transmit the setting command using the TX COMMAND menu in

“(10) Transmit Command to GPS/DGPS Sensor” p.81 to complete

the initial settings of the GPS/DGPS sensor.

•Press the

up or down to select DGPS SETTING>> and

push it in to switch to the DGPS SETTING menu.

Note:

After changing the settings, transmit the setting command using the

TX COMMAND menu in “(4) Transmit Command to GDPS

Beacon) p.82. The settings are not reflected in the DGPS sensor

unless the setting command is transmitted.

(1) Beacon Receive Mode

•Using this item, you can set the reception mode of the beacon.

•Press the

up or down to select MODE and push it in to

open the RECEIVE MODE setting pull-down menu. Press the

to the left or right to select MANUAL or AUTO. When

AUTO is selected, the set values in “(2) Frequency” p.81 and “(3)

Band Rate” p.82 are ignored.

(2) Frequency

•You can set the beacon frequency using this item.

•Press the

up or down to select FREQUENCY and push it in

to open the FREQUENCY setting pull-down menu. Press the

up or down to set the beacon frequency. The frequencies

range from 283.5kHz to 325.0kHz and you can set it in increments

of 0.5kHz.
