JRC FF50 User Manual

Section 3 Installation
25

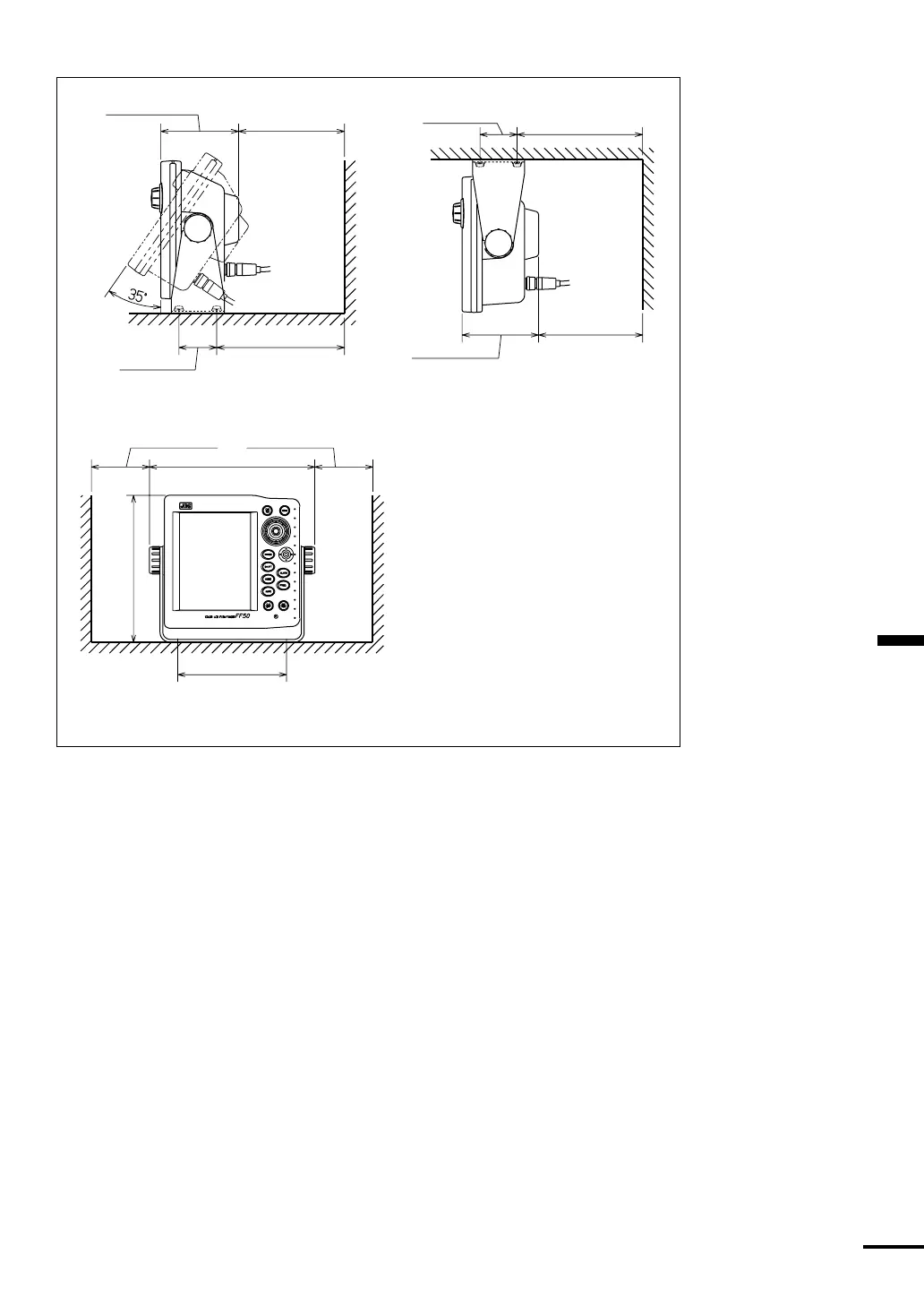

Figure 3-1
To mount the unit, remove the mounting yoke from the unit by loosening
the yoke knobs on each side of the FF50. Attach the bracket to the desired
mounting surface with the setting screws (o6x25SUS, 4Qty.) included in the kit,
refering to Figure 1-2. Once the bracket has been mounted, slide the unit back
into its yoke. Adjust for the optium viewing angle and tighten the yoke knobs.
TABLETOP
3.8'' (96mm)
3.8'' (96mm)
5.5'' (140mm)
5.5'' (140mm)
6.4'' (162mm)
6.4'' (162mm)
2'' (50mm)
3.1'' (80mm) 3.1'' (80mm)
9'' (228mm)
8'' (202.5mm)
5.9'' (150mm)
Unit : inch (mm)
2'' (50mm)
OVERHEAD
RECOMMENDED CLEARANCES FOR YOKE MOUNTING
