Chapter 4 MAINTENANCE
4.2 MAINTENANCE ON EACH UNIT
4-4
Rotating section
Oiling gears
Apply grease evenly to the tooth surfaces of the main shaft drive gear and the encoder
drive gear with a spreader or brush. Oiling in short intervals is more effective to prevent
the gears from wear and tear and extend their service life, but oil at least every six
months.
Use the grease of Mobilux 2 of Mobil Oil.
Driving motor
i) Attenuator
Greasing is not necessary unless there is oil leakage.
ii) Motor
The life span of the brush itself is 2000 hours. When the brush is worn out to a half
of the entire length, replace it.
The communicator must be kept clean all the time. If carbon dust is stuck and cannot
be removed with a dry cloth, polish the section with sand paper of No.150 to 400.
The carbon brush can be removed by removing the caps on both sides of the bottom
of the motor.
Table 4.2-1 List of replacement carbon brushes
Scanner unit
model name
Item name Model name JRC code
Replacement
quantity
NKE-2063 Carbon brush 54531-01 BRXP05247 2
Mounting legs
Check the mounting legs and mounting bolts of the scanner unit case for corrosion at
intervals and maintain them to prevent danger. Apply paint to them once a half year
because painting is the best measure against corrosion.

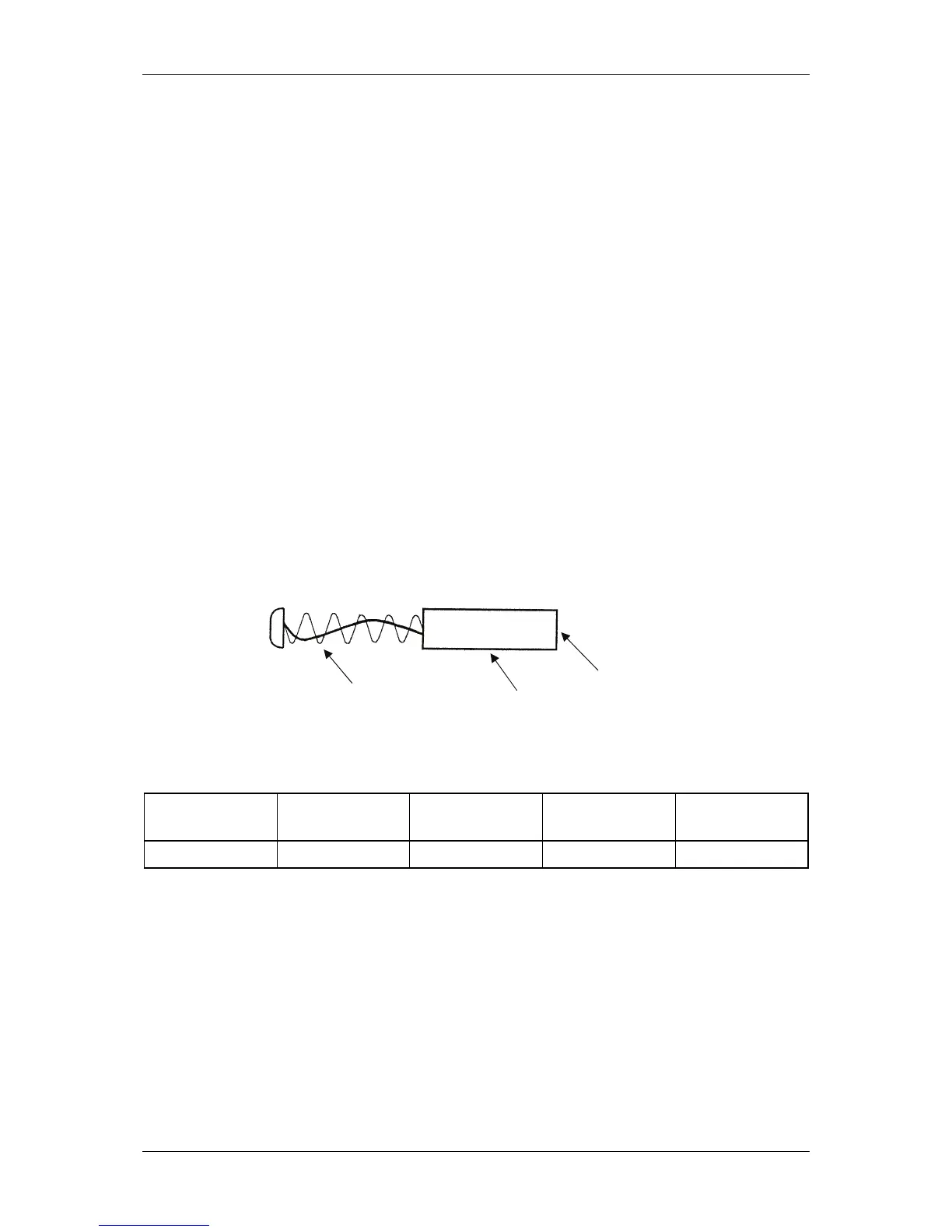

Carbon brush
Communicator contact side
Spring
To Next Page
