Chapter 4
MAINTENANCE
4.3
PERFORMANCE CHECK
4-10

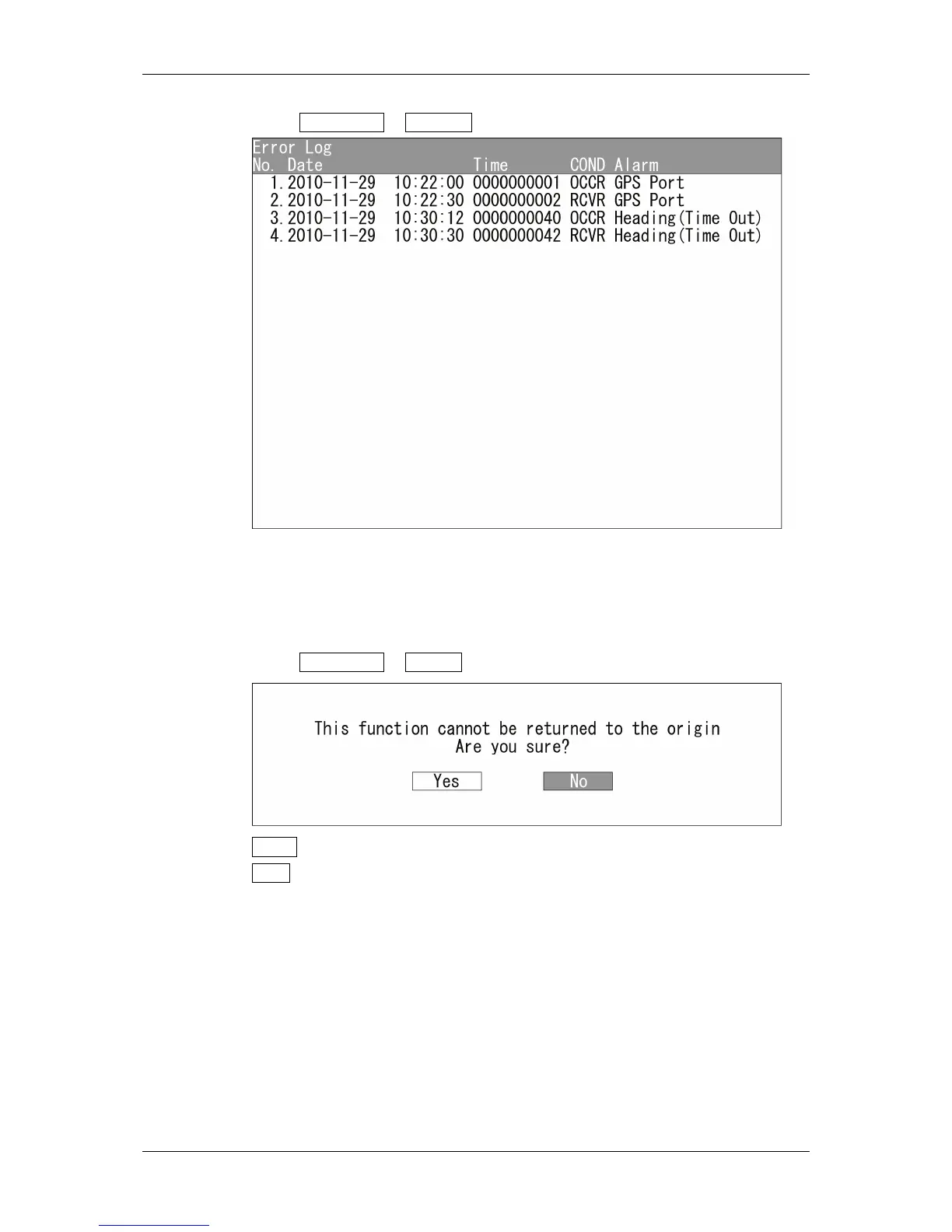

Displaying Error Log
1
Open
Error
Log
-
Display
.
"Error Log" menu appears.
For details of alarms, refer to "4.5.1 LIST OF ALARMS AND OTHER
INDICATIONS".
Erasing Error Log
1
Open
Error
Log
-
Erase
.
Yes
:
Erases the err
or log.
No
:
Does not erase the error log.
157
159
