2.7.13 SWITCHING BEARING DISPLAY MODE
Selects the azimuth of the radar video.
Reference:
The bearing signal input is required to display N Up/C Up.


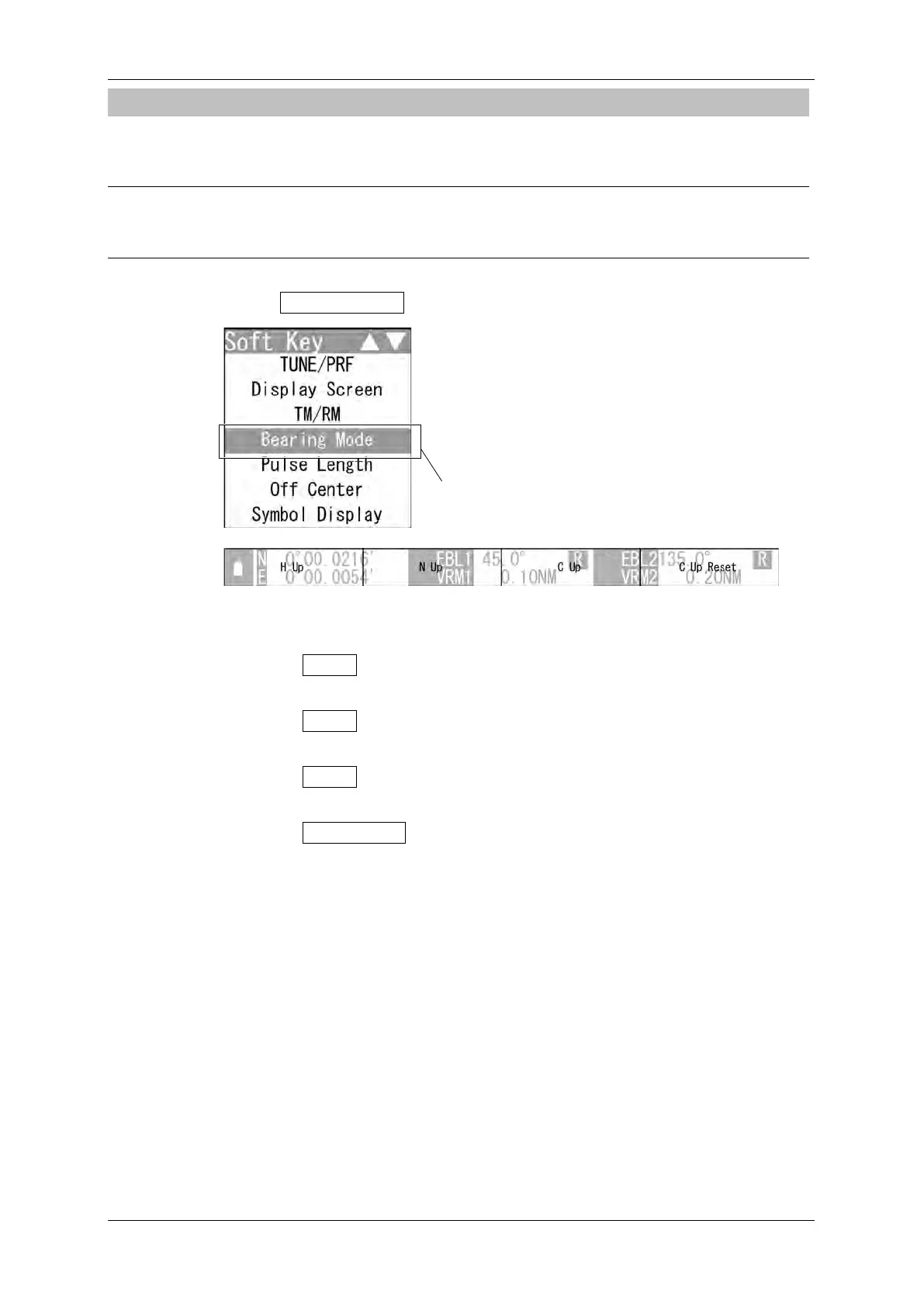

1 Select Bearing Mode on the soft key menu.


The "Bearing Mode" soft key display appears.
2 Operate with the soft keys.
Soft key 1:
HUp
Relative bearing mode [Head Up] is selected.
Soft key 2: NUp
True bearing mode [North Up] is selected.
Soft key 3: CUp
Course-up bearing mode [Course Up] is selected.
Soft key 4: C Up Reset
In Course-up mode, reset the course-up display.
"Bearing Mode" is color-inverted.
