Chapter 2
OPERATIONS
2.17
PLOTTER UNIT
2-135
2
INSTRUCTION MANUA

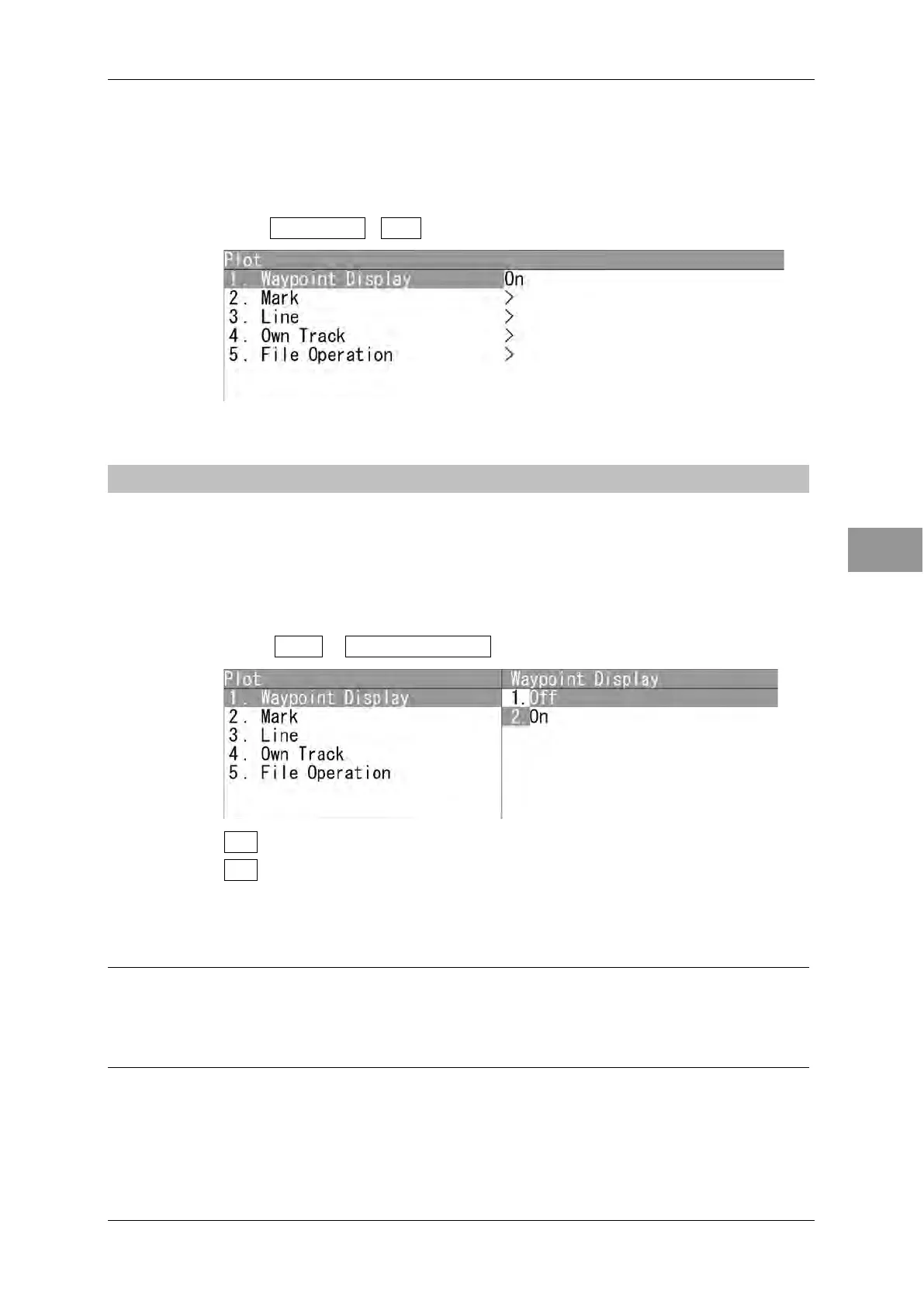

2.17 PLOTTER UNIT
Sets the plotter unit.
"Plot" operations
1 Open Main Menu - Plot .
"Plot" menu appears.
2.17.1 DISPLAYING WAYPOINT MARKS
When waypoint information is received from the navigation equipment, the waypoint
mark appears on the radar display.
"ۑ" is indicated as the waypoint mark on the radar display.
Setting for Waypoint Display
1 Open Plot - Waypoint Display .
Off : The waypoint marks are not displayed.
On : The waypoint marks are displayed.
Waypoint marks are displayed only when NMEA/RMB/BWC sentences are used to
receive Waypoint information.
Reference:
To display Numerical INFO of waypoint, see "4.13.7 LOCATION CHANGE" in
"INSTALLATION MANUAL".
To Next Page
