JRC JMA-3300 Series - Setting Mark Functions

Chapter 2

OPERATIONS
2.17

PLOTTER UNIT
2-136

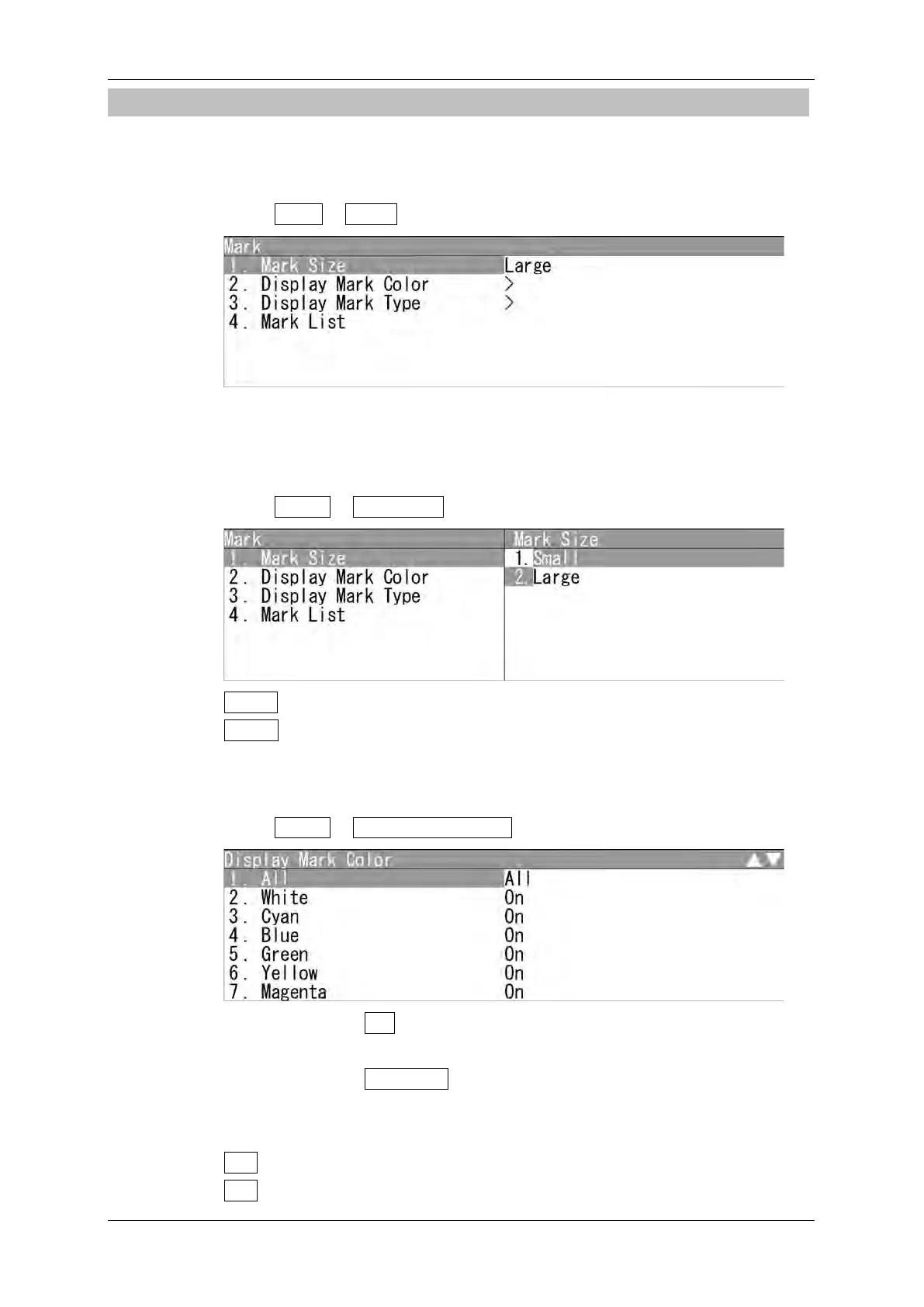

2.17.2 SETTING MARK FUNCTIONS
Sets the mark functions.
 "Mark" operations
1 Open Plot - Mark .

"Mark" menu appears.
 Setting Mark Symbol Size
Sets the mark symbol size.
1 Open Mark - Mark Size .

Small : Small marks are used.
Large :Large marks are used.
 Display Mark Color
Displays the marks with the specified color.
1 Open Mark - Display Mark Color .

When "All" is set to All :
The setting of "All" is prior to individual settings.
When "All" is set to Individual :
Individual settings are prior to the setting of "All".
On : Displays the marks with the specified color.
Off : Does not display the marks with the specified color.
