2.7.21 USING EVENT MARKS
Displays the event marks.
Reference:
y Bearing signal input and latitude/longitude data input are required to display event marks.
y Up to 200 lines/marks can be displayed for lines, marks and event marks in total.
y This function is initially set to off. To use this function, set this to on by referring to
"ڦ Soft Key Menu Setting" in "4.10 Control" of the Installation Manual.

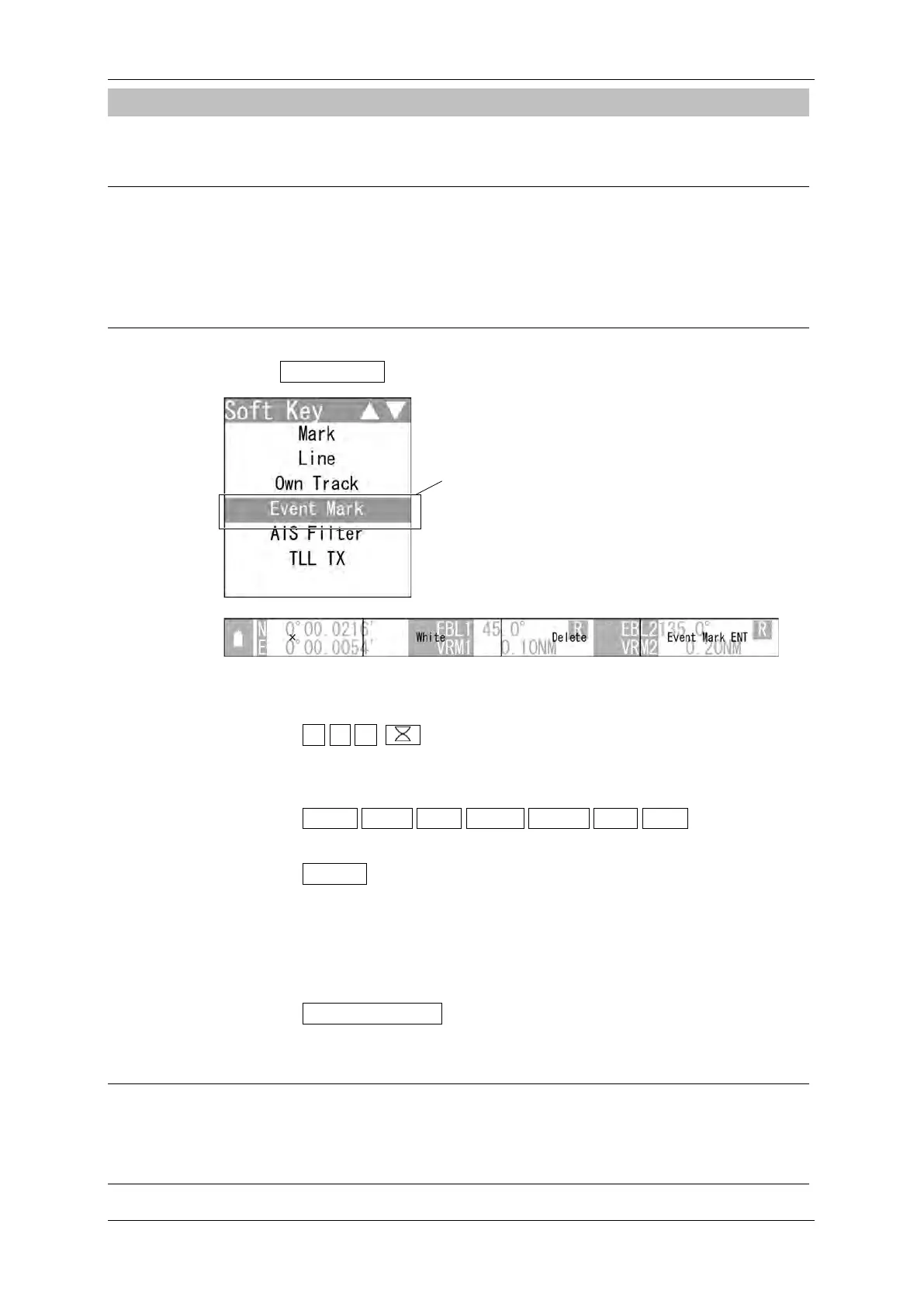

1 Select Event Mark on the soft key menu.
The "Event Mark" soft key display appears.
2 Operate with the soft keys.
Soft key 1: X+Y
The mark type of a target is changed.
For details of size setting, see "2.17.2 SETTING MARK FUNCTIONS".
Soft key 2: White Cyan Blue Green Yellow Pink
Red
The mark color of a target is changed.
Soft key 3: Delete
Press to delete the marks of selected type/color.
Hold down to delete all marks.
The confirmation dialog window is displayed.
(Marks and event marks are not distinguished when deleting.)
Soft key 4:
Event Mark ENT
An event mark is placed at the own ship's position.
Reference:
You can easily store the event marks, such as fishing spots.
Use the cursor to enter the marks for fishing spots, a sinking ship, fish reef, etc.
"Event Mark" is color-inverted.
