2.7.20 DISPLAYING OWN SHIP'S TRACK
The own ship's track function saves and displays own ship's track.
If navigation equipment is connected, this radar system records latitude/longitude data
sent from the navigation equipment and displays own ship's track. For detail settings of
own track (clearing own tracks, saved data clearing method, etc), see "2.17.4
DISPLAYING OWN SHIP'S TRACK".
Reference:
Bearing signal input and latitude/longitude data input are required to display own track.


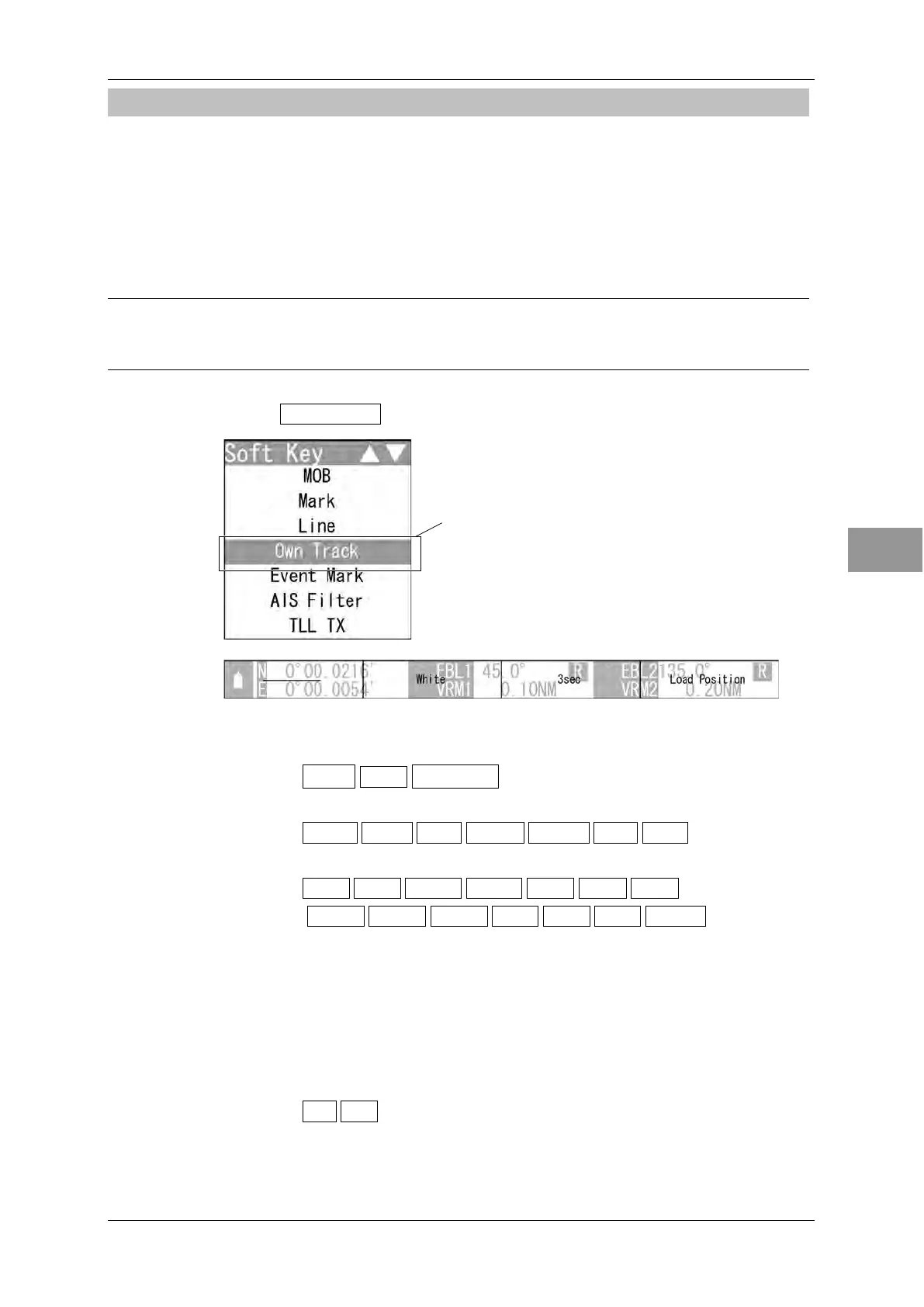

1 Select Own Track on the soft key menu.


The "Own Track" soft key display appears.
2 Operate with the soft keys.
Soft key 1:  ---- 㸫㸫㸫㸫
The line type of the own ship's track is changed.
Soft key 2: White Cyan Blue Green Yellow Pink Red
The line color of the own ship's track is changed.
Soft key 3: 3sec 5sec 10sec 30sec 1min 3min 5min
10min 30min 60min 1NM 3NM 5NM 10NM
The storage interval of the own ship's track is changed.
A preset time interval or preset distance interval can be selected as the storage interval.
The distance setting varies depending on the range scale unit setting.
NM range: 1NM, 3NM, 5NM, 10NM
km range: 1km, 3km, 5km, 10km
sm range: 1sm, 3sm, 5sm, 10sm
Soft key 4: On
Off
"On": This system starts saving the position of the own ship's track.
"Off": This system stops saving the position of the own ship's track.
"Own Track" is color-inverted.
