Chapter 2
OPERATIONS
2.14
FUNCTION KEY SETTINGS
2-115
2
INSTRUCTION MANUA
2.14.3 OVERVIEW OF FUNCTION SETTING ITEM
OPERATIONS
The following outlines the operation of each function selected from the function setting
menu.

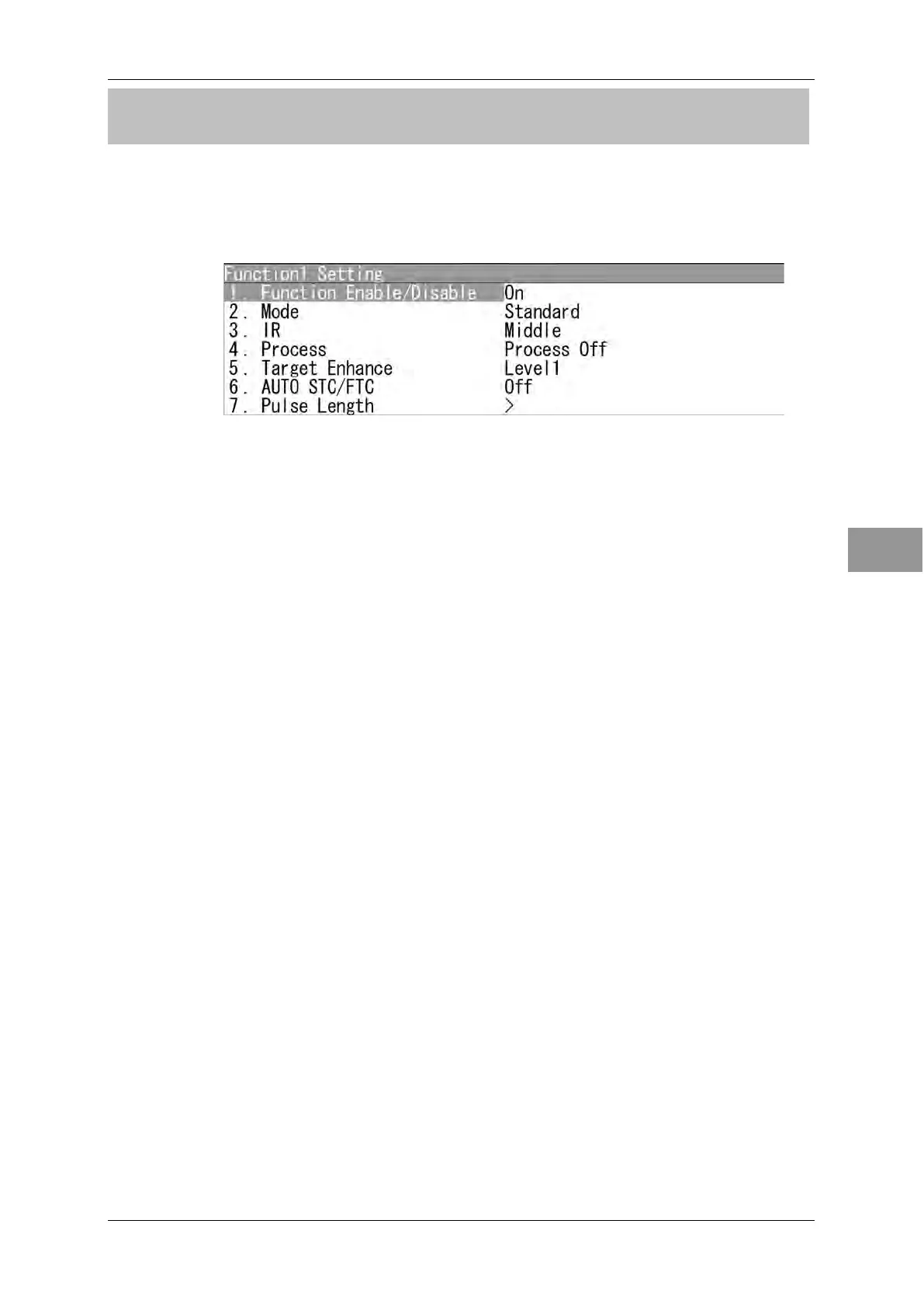

îš„ From "Function Enable/Disable" to "Pulse Length"

z Function Enable/Disable
If "Function Enable/Disable" is set to "Off", this mode is not displayed when switching
operation mode of function key.
z Mode
y Selects the function name to be indicated at the lower left of the radar display when
the function is selected.
y When the setting is changed back to the factory setting, the initial value of the
selected mode is called.
y The following 12 modes are provided:
Standard: Use this mode for general purpose. This is suitable to monitor a
relatively short range.
Coast: Use this mode to monitor a relatively short range, for example,
bays and coasts where many boats and ships are running.
(Importance is attached to resolution.)
Deepsea: Use this mode to monitor a relatively long range, for example, the
open sea.
(Importance is attached to long-range sensitivity.)
Fishnet: Use this mode to detect small targets such as fishnets of round
haul netters hidden by sea clutter returns. (Importance is attached
to sea clutter suppression, and sensitivity to moving targets
lowers.)
Storm: Use this mode when many rain/snow clutter returns or sea clutter
returns are detected in stormy weather. (Importance is attached to
rain/snow clutter and sea clutter suppression, and sensitivity
slightly lowers.)
